Anthro Fit Utility Unit Assembly Instructions - Manual (Page 2)

Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062

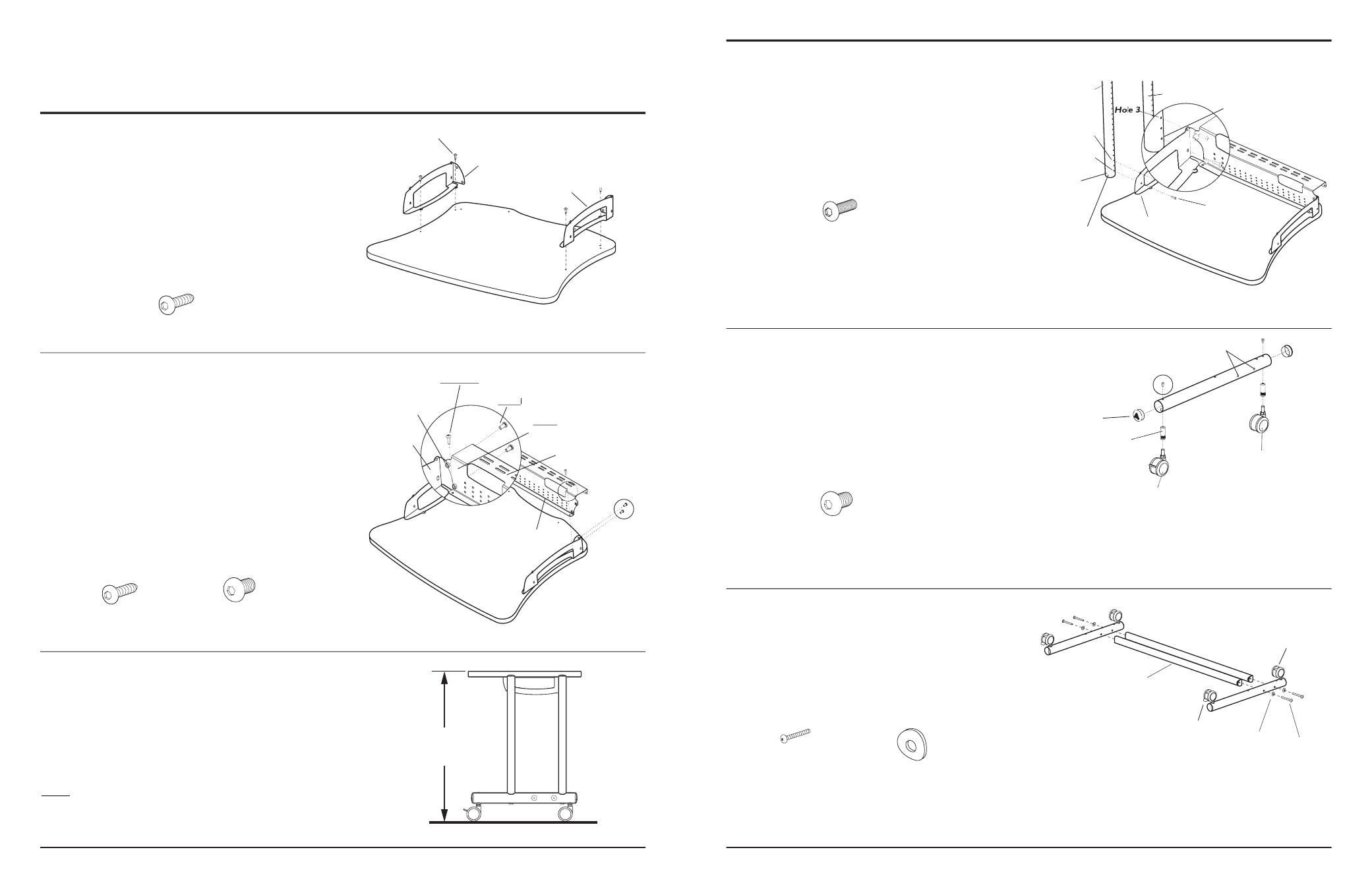

Step 1
Attaching Shelf Supports to the Shelf
Place your Work Surface onto the fl oor with the
predrilled holes facing upward.
Position the Small Supports onto the Work Surface and
align two of the holes on each Small Support with the
predrilled holes on the Work Surface.
Secure each Small Support to the Work Surface
using two Wood Screws per Support.
anthro.com
Step 3
Determine the Shelf Height
Determine the best height for your Shelf. These instructions
will place your Shelf 29" from the Floor using the standard
3" Casters.
For a fi nal Shelf height that is lower than 29", adjust one
hole down for each inch of variance desired.
NOTE: Your Shelf location may be changed after your Utility Unit
has been completely assembled by referring to Step 4.
Step 4
Attaching the Legs to the Work Surface
The Utility Unit Legs have a coped (curved) end and a
fl at end. The fl at end attaches to the Work Surface.
Attach a Leg to the rear of the Shelf using two Support
Screws. Insert the screws through the holes in the Shelf
Support and into the fi rst and third holes on the leg; leave
the screws a little loose. Repeat for the other three legs.
Step 5
Assembling the Base Tube
Install two caster Inserts into each Base Tube and secure
with one Insert Screw per Caster Insert.
Insert one Locking Caster and one Non-locking Caster
into the Inserts on each Base Tube. The Non-locking
Caster should be near the two side holes.
Insert 2" End Caps into the ends of each Base Tube.
Questions? 1-800-325-3841
Support Screw
325-5010-00
Step 2
Attaching the Back Trough to the Shelf Supports
Place the Back Trough onto the Work Surface, between
the installed Small Supports (from Step 1).
Align the two threaded holes on each end of the Back
Trough with those on both Shelf Supports. Carefully thread
one Button Head Screw through the Shelf Support and into
the Back Trough, but don’t tighten all the way.
Repeat for the remaining three Button Head Screws, and
leave them all a slightly loose.
Align the holes in the bottom fl ange of the Back Trough with
the pre-drilled holes on the Work Surface. Attach the Back
Trough to the Work Surface using two Wood Screws.
3 /
4
" Wood Screw
325-5106-00
3 /
4
" Wood Screw
325-5106-00
( 1 /
4
"-20 X .50") Button Head Screw
325-5003-00
29"
Insert Screw
(small pink patch on end)
325-5052-00
Small Support X Small Support X
Small Support Y Small Support Y
Small Support X Small Support X Small Support X
FIRST: Install the Button Head Screws FIRST FIRST
SECOND: Install the Wood Screws
Back Trough
Back Trough fl ange
NOTE: Make certain to install
the Back Trough in front of the
Small Supports.
Threaded holes
Locking
Caster
Caster Inserts placed
into the large holes
Leave these two side holes open
Non-Locking
Caster
Hole 1=29"
Final Work Surface Height
Small Support X
Hole 1
Top
(non-coped)
end
Bottom
(coped)
end
Hole 3
REAR LEG
FRONT
LEG
24"/30"/36" wide Utility Unit
Assembly Instructions
Wood Screw
Support Screw
End Cap
Step 6
Attaching the Cross Tubes to the Base Tubes
Attach a Cross Tube to a Base Tube by inserting a Fit Bolt
through a Tube Washer, then insert the Bolt through the
Base Tube and carefully thread into the Cross Tube.
Repeat this procedure for other Cross Tube. Then tighten
all Fit Bolts.
Fit Tube Washer
225-2050-00 or 225-3522-00
Cross Tube
Fit Tube
Washer
( 5 /
16
"-18 X 3.5") Fit Bolt
325-5194-00
Fit Bolt
Base Assembly
Locking
Caster
Non-Locking
Caster
