Anthro MiniCart
Assembly Instructions
Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062

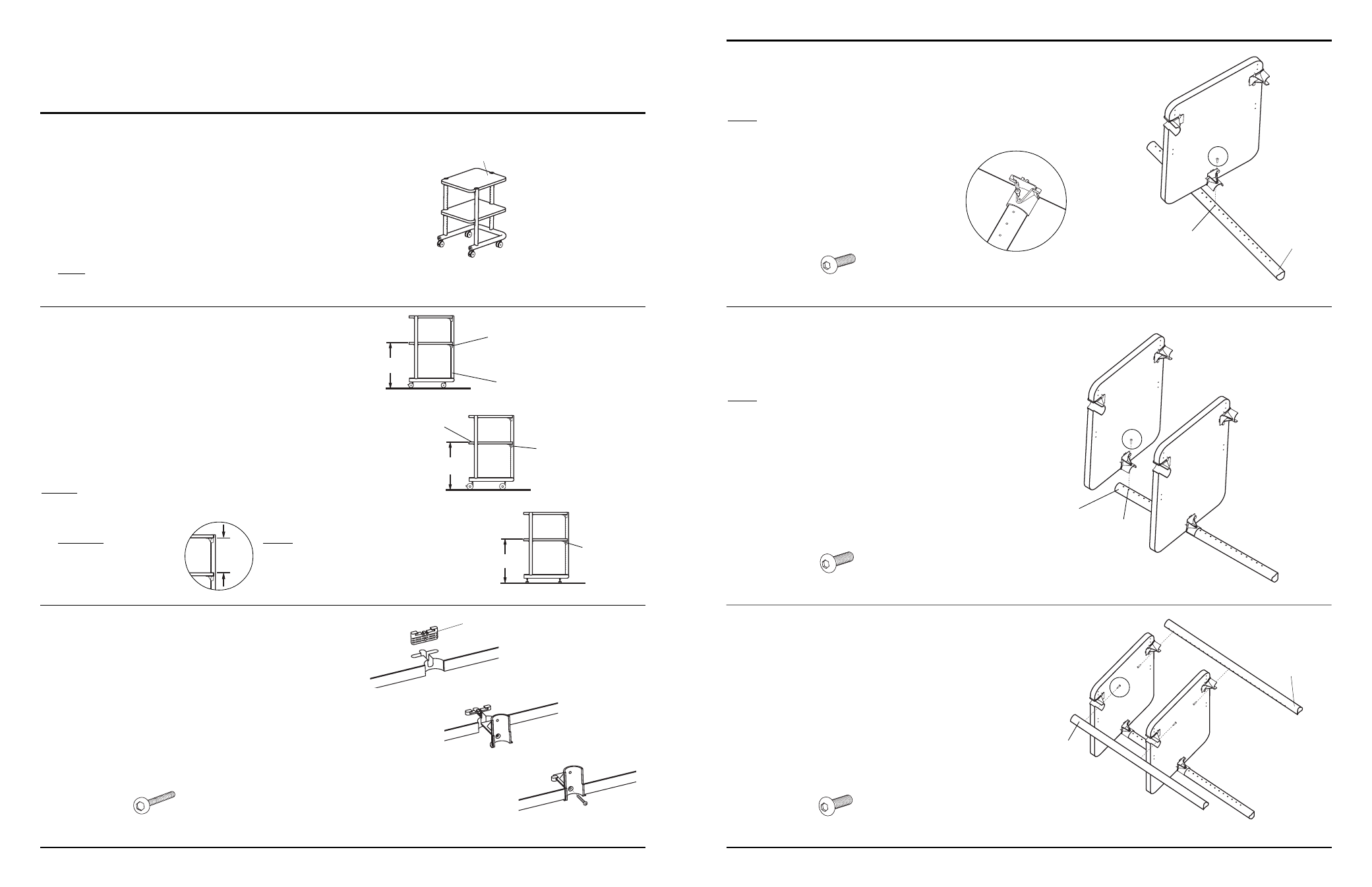

Step 1
Before proceeding, please review the Assembly
Instructions of all Anthro Products you purchased
and are planning to include in this installation.
Step 3
Attach three Shelf Supports to each Shelf.
Begin by first installing a Shelf Clamp into the Shelf
notch. Be sure the pointed barbs face towards the
outer Shelf edge.
Next, slide a Shelf Support into the recesses of the
Shelf Clamp and Shelf. Push in as far as possible.
Finally, secure with a Clamp Screw.
anthro.com
Step 4
Loosely attach one Shelf to Hole 11 from the bottom (coped
end) of one Vertical Leg using a Support Screw.
NOTE: This will place your lower Shelf 19" from the floor using
the standard 2
3 /
8
" Casters.
Step 5
Loosely attach the remaining Shelf to Hole 2 from the
top (non-coped end) of the Vertical Leg Assembly (from
Step 4) using one Support Screw.
NOTE: Handle the Shelf Assembly carefully until the Cart
is fully assembled.
Step 6
Loosely attach the 2 nd and 3 rd Vertical Legs to the
Shelf Assembly (from Step 5) using one Support
Screw per Shelf Support.
TIP: Use the holes in the Vertical Legs as a ruler to
ensure that your Support Screws are installed into the
correct locations.
Questions? 1-800-325-3841
First
Next
Finally Support Screw
325-5010-00
Clamp Screw
325-5086-00
Barbs
Step 2
Decide on the Shelf locations for your MiniCart. You can
place your Shelves almost anywhere on the Vertical Legs
(the Legs are stamped at 1" increments).
For a Lower Shelf location that is higher or lower than
19" from the floor, refer to the illustrations shown at right
to determine which holes to attach your Lower Shelf.
Once your MiniCar t is assembled, it is very
difficult to move a Shelf without taking the
entire Cart apart and star ting over.
NOTE: These instructions will place your Lower Shelf
19" from the floor using the standard 2
3 /
8
" Castors.
GT23xx with 2 3 / 8 " Casters
GT23xx4 with 4" Casters
GT23xxGL with Glides
Hole 12=20"
Hole 11=19" (measured from the coped end)
Hole 10=18"
Hole 11=20"
Hole 10=19"
Hole 9=18"
Hole 9=20"
Hole 8=19"
Hole 7=18" REMINDER: You may want to
measure your equipment to
make sure it fits between the
selected Shelf locations.
Coped end
19"
19"
19"
Support Screw
325-5010-00
Support Screw
325-5010-00
GT23xx
Overall MiniCart height is
28" using 2 3 / 8 " Casters
NOTE: Add 1" to overall height for 4" Casters and
subtract 3" from overall height for Glides.
Bottom
(coped)
end
Hole 11=19"
(using 2 3 / 8 " Casters)
Insert one Support Screw
through each Shelf Support
Top
(non-coped)
end
Hole 2
Top
(non-coped)
end
Bottom
(coped)
end
NOTE: T h e s e I n s t r u c t i o n s
w i l l c r e a t e a p p r o x i m a t e l y
8" of usable space between
your Shelves.
Lower Shelf
