30" Wide AnthroCart
Assembly Instructions
Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062
Step 1
Before proceeding, please review the Assembly Instructions of all Anthro Products you purchased and are
planning to include in this installation.
Decide on the shelf configuration that works best for you. Generally, customers place the large shelf at the top of the
legs and the small shelf at the bottom of the legs, and that’s how these instructions are organized. This configuration
leaves 18" clearance between the shelves.
Shelves can be installed at any height (in 1" increments), so find the best configuration for you. If you need help
configuring your cart, just give us a call!
Step 2

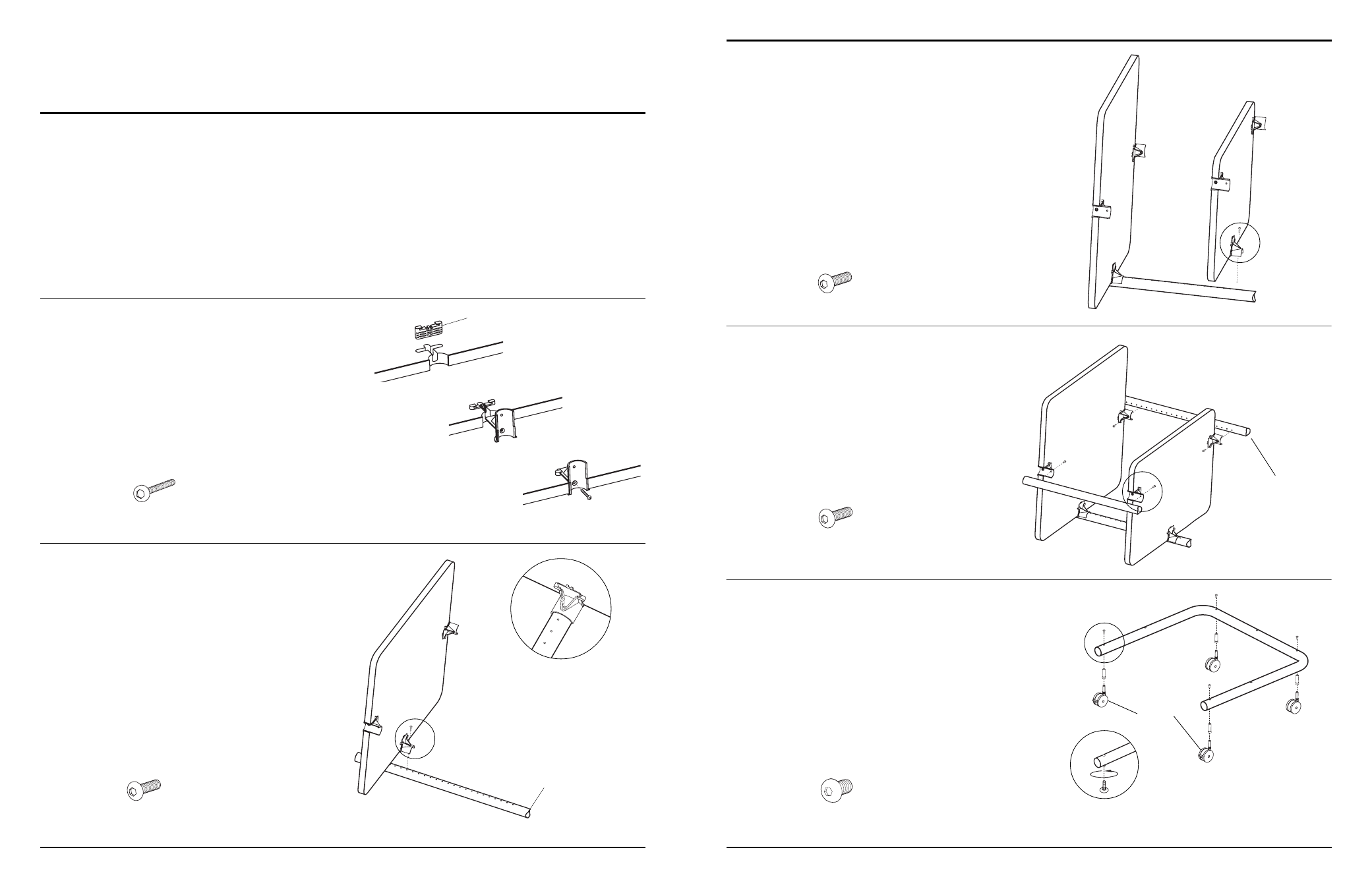

Attach three Shelf Supports to each Shelf. Begin by first
installing a Shelf Clamp into the Shelf notch. Be sure
the pointed barbs face towards the outer Shelf edge.
Next, slide a Shelf Support into the recesses of the
Shelf Clamp and Shelf. Push in as far as possible.
Finally, secure with a Clamp Screw.
anthro.com
Step 3
Loosely attach the Large Shelf to Hole 2 from the top
of one Vertical Leg using one Support Screw.
NOTE: This will place your Large Shelf 28" from the
floor using the standard 2
3 /
8
" Casters.
Step 4
Loosely attach the Small Shelf to the bottom hole on
the Vertical Leg Assembly (from Step 3) using one
Support Screw.
NOTE: Handle the Shelf Assembly carefully until the
Cart if fully assembled.
Step 5
Loosely attach the 2 nd and 3 rd Vertical Legs to the
Shelf Assembly (from Step 4) using one Support
Screw per Shelf Support.
Questions? 1-800-325-3841
First
Next
Finally
Support Screw
325-5010-00
Support Screw
325-5010-00
Clamp Screw
325-5086-00
Barbs
Support Screw
325-5010-00
Bottom (coped) end
Bottom (coped) end
Insert one Support Screw
through each Shelf Support
Step 6
Install all four Caster Inserts into the Base Tube and
secure with one Caster Screw per Insert.
Push the Casters, (locking ones in front) into the
Caster Inserts. This is a friction fit and will require
some effort. You may find it helpful to tap the bottom
of the caster with the rubber mallet provided.
Caster Screw
(small pink patch on end)
325-5052-00
GLIDES ONLY
Thread each Glide
into the Glide Inserts
Locking
Casters
