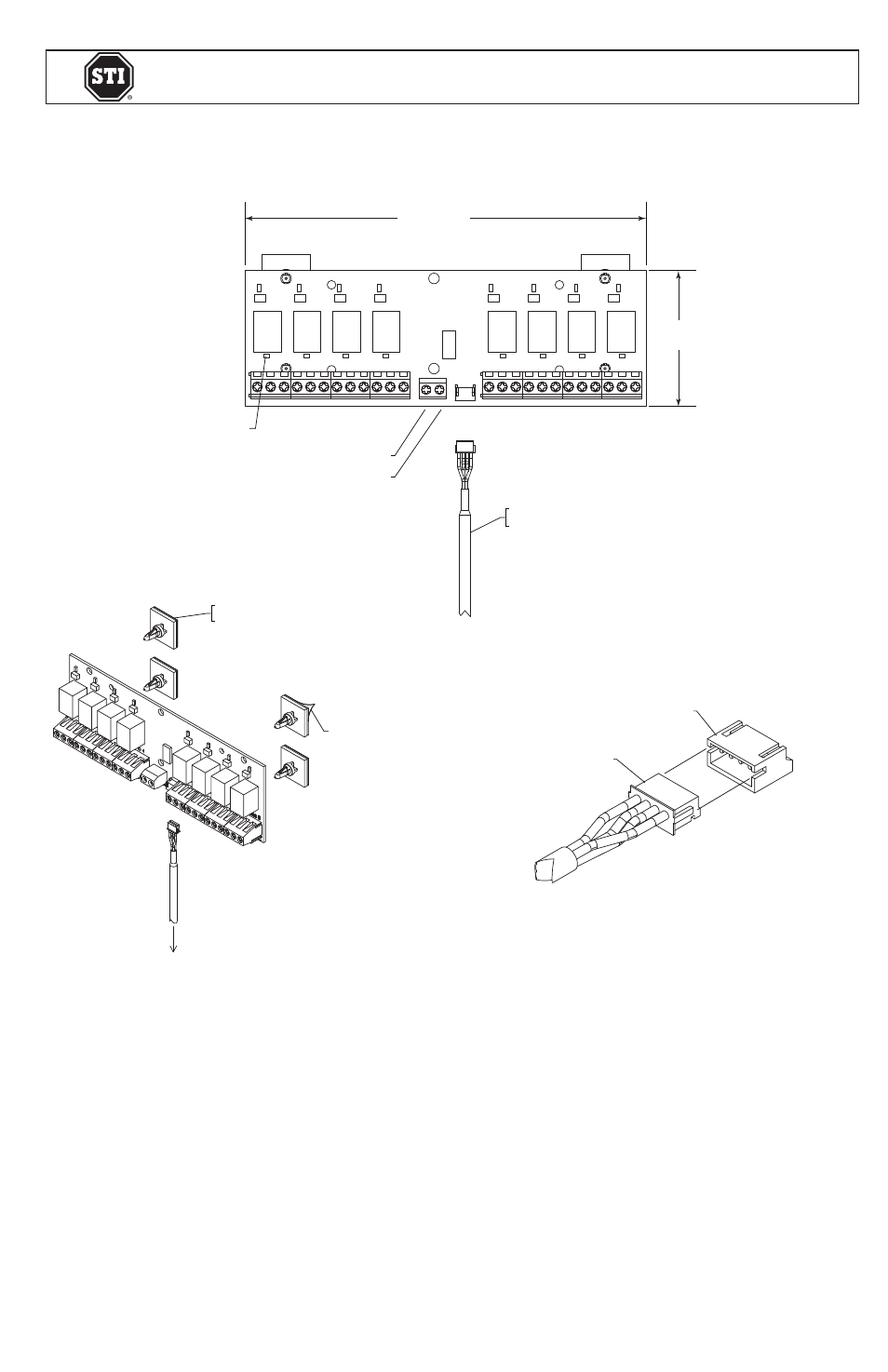

ADHESIVE BACK PCB SUPPORT
(4) PROVIDED
PEEL BACKING
TO 8 CHANNEL RECEIVER
STI-34108
FEMALE JACK
MALE PLUG
24” 4-CONDUCTOR CABLE
(1) PROVIDED
POWER IN 12 VDC
250 mA
ZONE ALERT LED
5.90 in.
(150mm)
2.00 in.
(51mm)
+
_
FOR BOTH ENDS OF
CONNECTOR ALIGN TABS
ON MALE PLUG TO SLOTS
ON FEMALE JACK
AND INSERT AS SHOWN.
Zone 5 Zone 6 Zone 7 Zone 8 Zone 1 Zone 2 Zone 3 Zone 4
NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC 12V GND
ADHESIVE BACK PCB SUPPORT
(4) PROVIDED
PEEL BACKING
TO 8 CHANNEL RECEIVER
STI-34108
FEMALE JACK
MALE PLUG
24” 4-CONDUCTOR CABLE
(1) PROVIDED
POWER IN 12 VDC
250 mA
ZONE ALERT LED
5.90 in.
(150mm)
2.00 in.
(51mm)
+
_
FOR BOTH ENDS OF
CONNECTOR ALIGN TABS
ON MALE PLUG TO SLOTS
ON FEMALE JACK
AND INSERT AS SHOWN.
Zone 5 Zone 6 Zone 7 Zone 8 Zone 1 Zone 2 Zone 3 Zone 4
NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC 12V GND
ADHESIVE BACK PCB SUPPORT
(4) PROVIDED
PEEL BACKING
TO 8 CHANNEL RECEIVER
STI-34108
FEMALE JACK
MALE PLUG
24” 4-CONDUCTOR CABLE
(1) PROVIDED
POWER IN 12 VDC
250 mA
ZONE ALERT LED
5.90 in.
(150mm)
2.00 in.
(51mm)
+
_
FOR BOTH ENDS OF
CONNECTOR ALIGN TABS
ON MALE PLUG TO SLOTS
ON FEMALE JACK
AND INSERT AS SHOWN.
Zone 5 Zone 6 Zone 7 Zone 8 Zone 1 Zone 2 Zone 3 Zone 4
NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC NO C NC 12V GND
INSTALLATION INSTRUCTIONS
1. Snap adhesive back PCB supports into PCB as shown.
2. Peel backing from adhesive back PCB supports, place
PCB in desired position and press firmly.
INSTALLATION OF STI-34188 8-ZONE RELAY BOARD
All specifications and information shown were current as of publication and are subject to change without notice.
STI-34188 JUNE 2012
