STI 9708 - Manual

19033 ANCHOR
(4) PROVIDED
19020 CLAMP
(4) PROVIDED
19013 #10 x 1-1/2 in.
SCREW (4) PROVIDED
7.40 in.
(188mm)
3.39 in.
(86mm)
6.15 in.
(156mm)
6.74 in.
(171mm)
7.49 in.
(190mm)
6.09 in.
(155mm)
3.1 in.
(79mm)
3.15 in.
(80mm)
1.63 in.
(41mm)
SPEAKER/STROBE
MOUNTING PLATE
STI-9705
WIRE GUARD
SPEAKER/STROBE
STI-1285 BACKPLATE
4” SQUARE
ELECTRICAL BOX

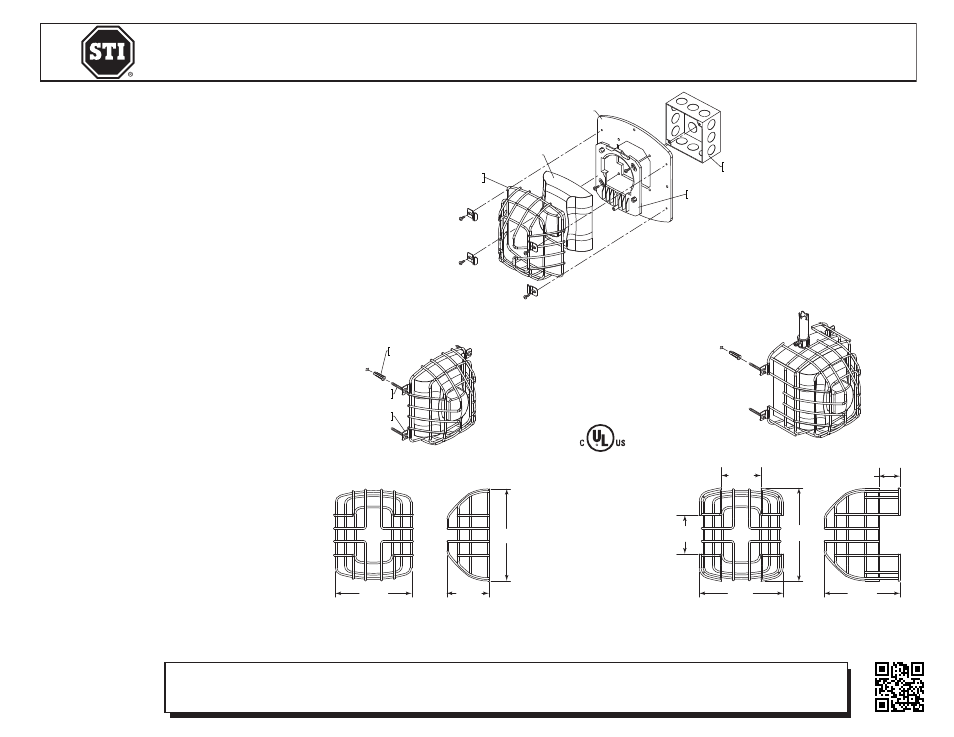

INSTALLATION OF STI-9705 AND STI-9708 HORN/STROBE/SPEAKER DAMAGE STOPPER ®
All specifications and information shown were current as of publication and are subject to change without notice.
9705 AND 9708 JULY2010
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: [email protected] • Web: www.sti-europe.com
INSTALLATION INSTRUCTIONS
1. Center wire guard over strobe.
2. Place clamps in recommended position as shown.
3. Mark clamp hole locations on wall and drill (4) 5/32 diameter holes
1 1/2 in. deep. If using 19033 anchor, drill (4) 11/32 diameter holes
1-1/2 in. deep.
4. Insert anchors and/or screws and tighten.
WHEN USING MOUNTING PLATE
1. Attach speaker/strobe mounting plate through holes in backplate
and secure the (2) #6-32 screws to the 4.0 square electrical box.
Backplate must be orientated as shown to mount correctly.
2. Attach all wires to speaker/strobe mounting plate per installation
instructions.
3. Attach speaker/strobe unit to speaker/strobe mounting plate per
instructions.
4. Attach wire guard to backplate using the (4) clamps and screws.
LIGHT DE-RATING FACTOR
System Sensor(SR,SW,SW-ALERT,SW-CLR-ALERT,SRK,SW
K,P2R,P2W,P4R,P4W,CHSR,CHSW,P2RK,P2WK,P4RK,P4WK
,SPSR,SPSR-SP,SPSR-PG,SPSW,SPSW-CLR-ALERT,SPSW-
SP,SPSW-PG,SPSRV,SPSRV-SP,SPSRV-PG,SPSWV,SPSWV-
SP and SPSWV-PG,SPSWK,SPSRK,SPSW-ALERT)
System Sensor (SRH,SWH,SRHK,SWH-ALERT,SWHK,P2RH
,P2WH,P4RH,P2RHK,P2WHK,P2RHK-120, SPSRH,SPSRH-
SP,SPSRH-PG,SPSWH,SPSWH-SP and SPSWH-PG,SPSRHK)
Light
Loss %
13.0%
STI-9705 STI-9708
0%
Electronic warranty form at www.sti-usa.com/wc14
