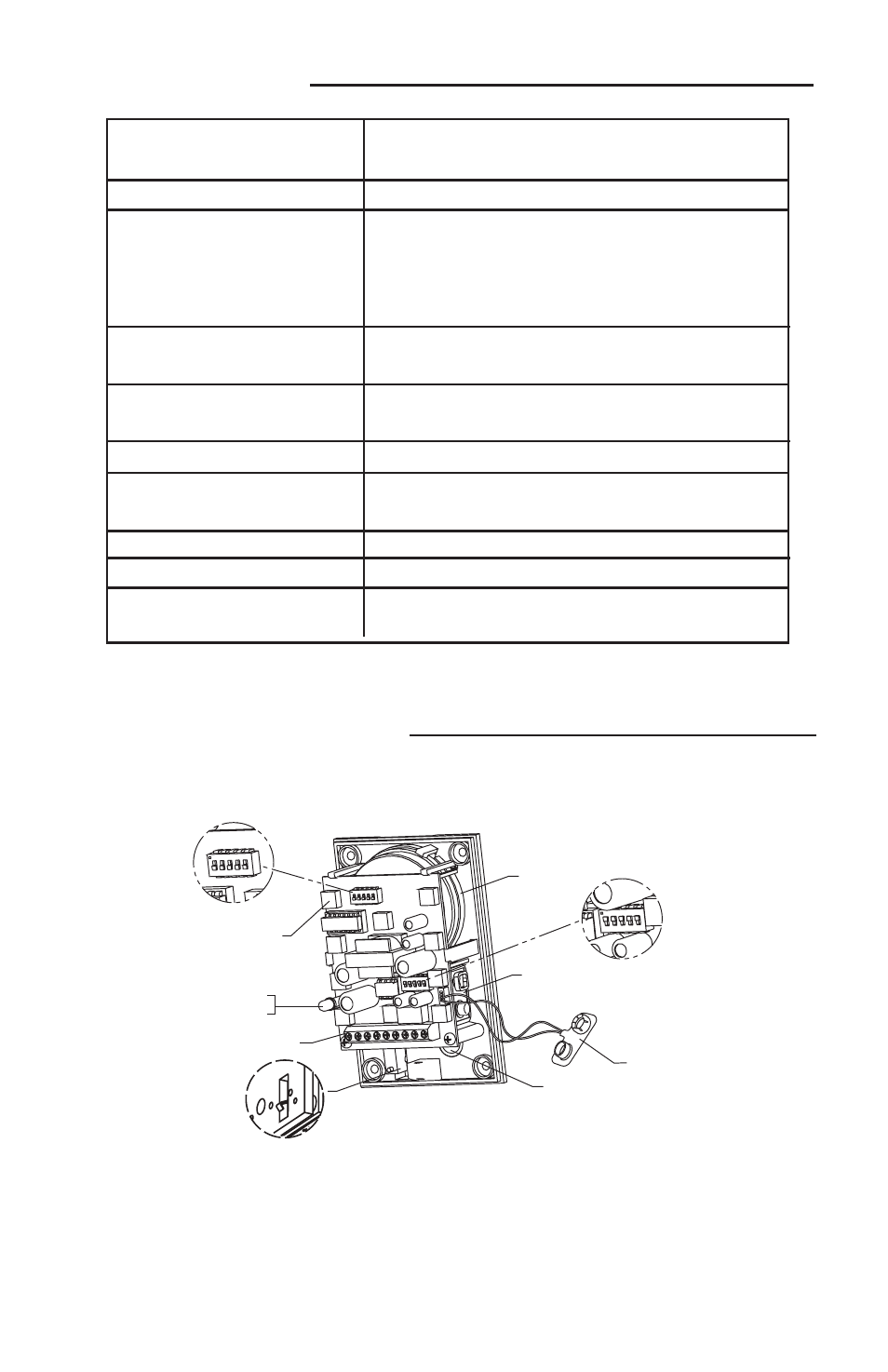

STEP 1 - E
LECTRONIC
S
ETUP
S1
ALARM TONE
S2
ALARM TIMING
STROBE TIMING
VOLUME
LED QTY 10
LOW BATTERY
INDICATOR LED
TERMINAL STRIP
TAMPER SWITCH
(REAR VIEW)
WIRE ENTRY
BATTERY
BATTERY CABLE
SIREN
O
4
SPECIFICATIONS
OPERATING VOLTAGE Internal power 9 VDC battery (not included)
Remote power 12-24 VDC
OPERATING TEMPERATURE 32°F -120°
POWER CONSUMPTION Stand by: 50µA
Siren low volume: 85mA
Siren high volume: 90mA
Strobe: 25mA
SIREN VOLUME Low: 85 dB
High: 100 dB
ALARM TIMING Independent control for siren and strobe:
15s, 30s, 60s, continuous
LOW BATTERY WARNING LED flash once every 30 seconds
FORM C DRY CONTACTS 0-30VAC/DC, 1 Amp
Contacts reset after longest alarm setting
KEY SWITCH Alarm on: normally closed
ALARM SWITCH Stand by: normally open contact required
POLYCARBONATE UL94V-2
FLAMMABILITY RATING
INSTALLATION
NOTE: Select-Alert must be on a flat surface and lens must be
installed or the tamper switch will trigger the alarm.
