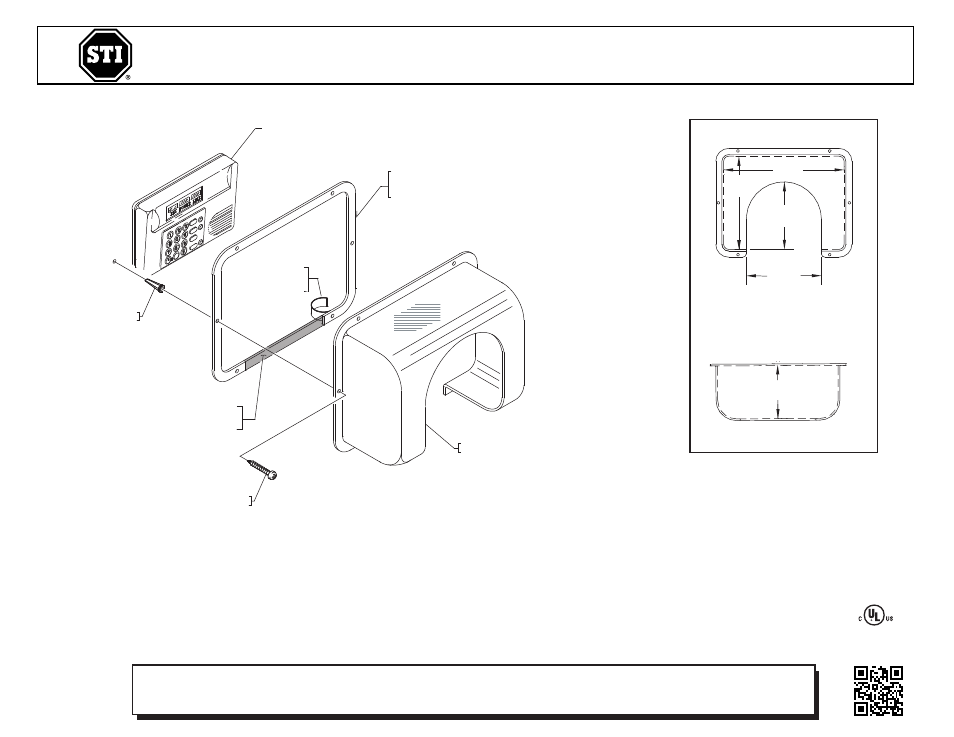

INSTALLATION OF SNOOPER STOPPERS
®
STI-7504 AND STI-7505
All specifications and information shown were current as of publication, and are subject to change without notice.
STI-750405IS AUG2006
750098 GASKET
CENTER GASKET AROUND EXISTING KEYPAD
MARK AND DRILL (6) 3/16 in.(4.7mm) DIAMETER
HOLES 7/8 in.(22mm) DEEP
STI-7504 ENCLOSURE (CLEAR)
STI-7505 ENCLOSURE (SMOKE)
REMOVE BACKING
PAPER AND APPLY
TOWARD MOUNTING
SURFACE.
AFTER INSTALLATION IS
COMPLETE THIS AREA
OF GASKET MAY BE
CUT AND REMOVED
EXISTING KEYPAD UNIT
19014 SCREW #8 x 1 in.
(6) PROVIDED
19018 ANCHOR
(6) PROVIDED
CLEANING INSTRUCTIONS
1. Rinse cover with water to remove abrasive dust and dirt.
2. Wash with soap or mild detergent using a soft cloth. (DO NOT SCRUB.)
3. Rinse once more, then dry with a soft cloth or chamois.
4. To remove grease or wet paint, rub gently with a cloth wetted thoroughly
with naphtha, then wash and rinse. (DO NOT USE RAZOR BLADES.)
4 in.
(101mm)
TOP VIEW
5.5 in.
(139mm)
FRONT VIEW
4.75 in.
(120mm)
8.75 in.
(222mm)
6.75 in.
(171mm)
INSTALLATION INSTRUCTIONS
1. Place the cover over the appliance. Be sure that it
is accessible through the front opening in cover.
2. Mark and drill 7 holes 3/16 in. (4.7mm).
3. Complete assembly as shown.
