STI EM111504 User Manual
Sti-mbp0913
INSTALLATION OF STI-EM111504 METAL PROTECTIVE CABINET
All specifications and information shown were current as of publication and are subject to change without notice.
EM1115004 MAY2013
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: [email protected] • Web: www.sti-europe.com

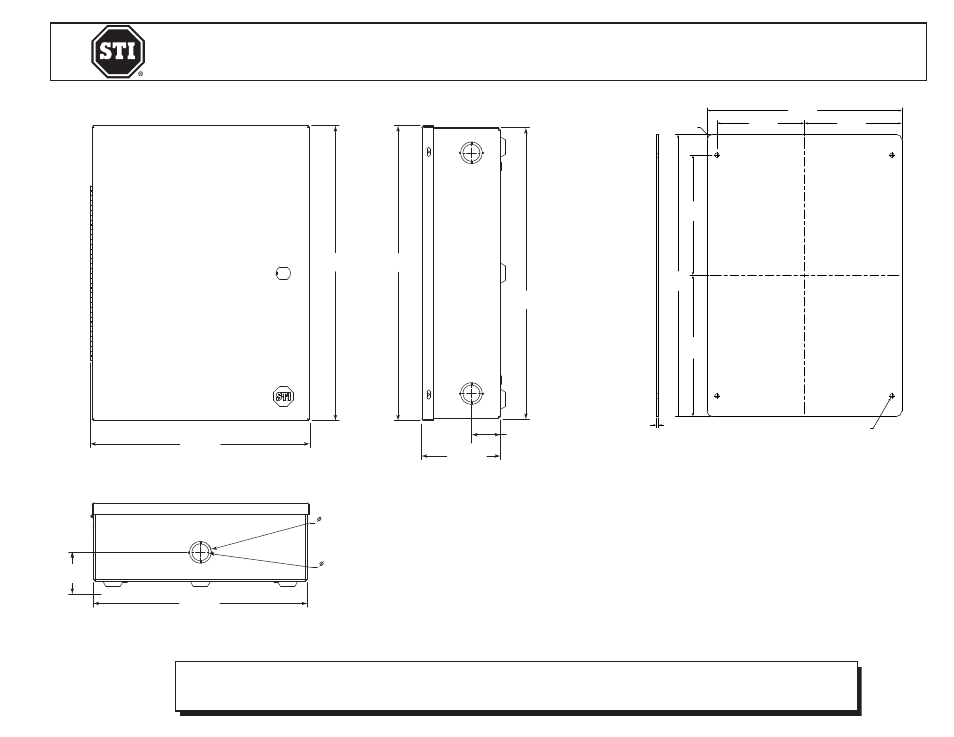

BACKPLATE
STI-MBP0913
11.00 in.
(279mm)
1.125 in.
(29mm)
0.875 in.
(22mm)
1.75 in.
(44mm)
11.28 in.
(286mm)
1.75 in.
(44mm)
4.30 in.
(109mm)
15.00 in.
(381mm)
15.20 in.
(386mm)
15.20 in.
(386mm)
4.45 in.
(113mm)
8.9 in.
(226mm)
4 in.
(101mm)
R .25 in.
(6mm)
.07 in.
(2mm)
5.5 in.
(140mm)
12.9 in.
(328mm)
6.45 in.
(164mm)
.197 in.
(5mm)
