INSTALLATION OF SUB-123 ENVIRO-KIT
All specifications and information shown were current as of publication and are subject to change without notice.
SUB-123IS JAN 2000
Safety Technology International, Inc.
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
Safety Technology International (Europe) Ltd.
Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch
Worcestershire • B98 0HU • England • Tel: 44 (0) 1527 520 999
Fax: 44 (0) 1527 501 999 • Freephone: 0800 085 1678 (UK only)
E-mail: [email protected] • Web: www.sti-europe.com
INSTALLATION INSTRUCTIONS

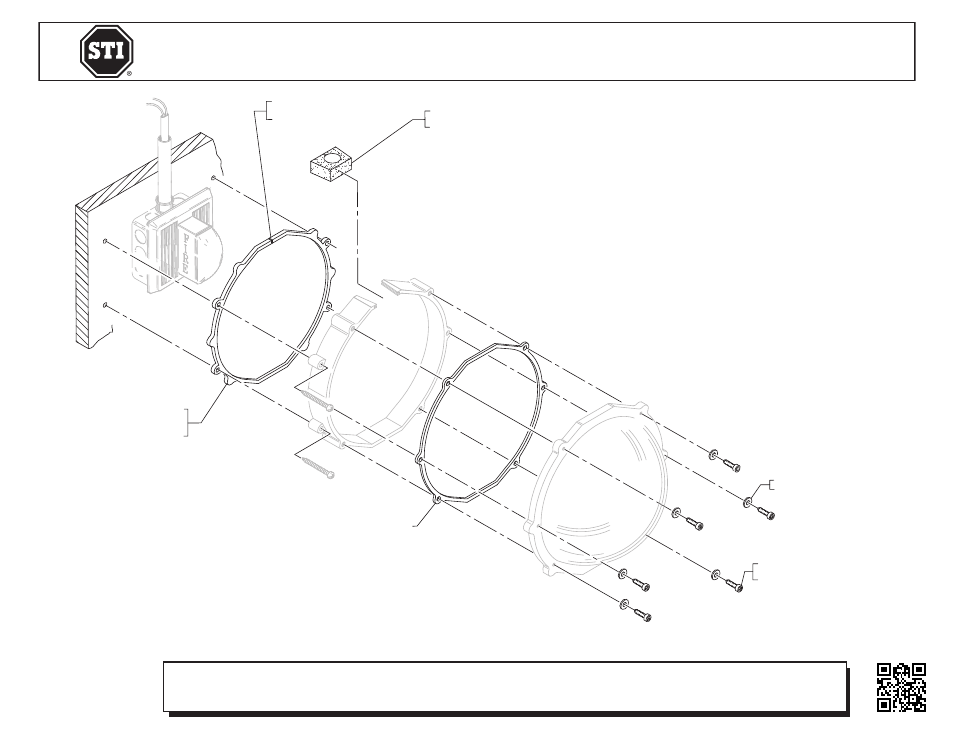

1. The (6) mounting holes must be marked and
drilled with the (6) anchors installed prior to
the installation of the #70496 gasket.
2. After the #70496 gasket is installed the
#70495 gasket (if needed) may now be
placed around conduit.
3. Place #70498 gasket into the groove on
the bottom side of cover and complete
installation as shown.
#70495 CONDUIT ENTRY GASKET
SELECT THE PROPER DIAMETER,
PUSH OUT AND DISCARD
GASKET MAY BE SLIT IN
THIS AREA AND PLACED
BEHIND CONDUIT
#19049 WASHER
(6) PROVIDED
#19050 #8-32 x 3/4 in.
SOCKET HEAD SCREW
(6) PROVIDED
#70498 GASKET
#70496 GASKET
PEEL OFF BACKING PAPER
AND PLACE ADHESIVE
SIDE TOWARD WALL
Electronic warranty form at www.sti-usa.com/wc14
