CF101LA-5R & C F101LA-52R RHAON Empowered Array Module Connections

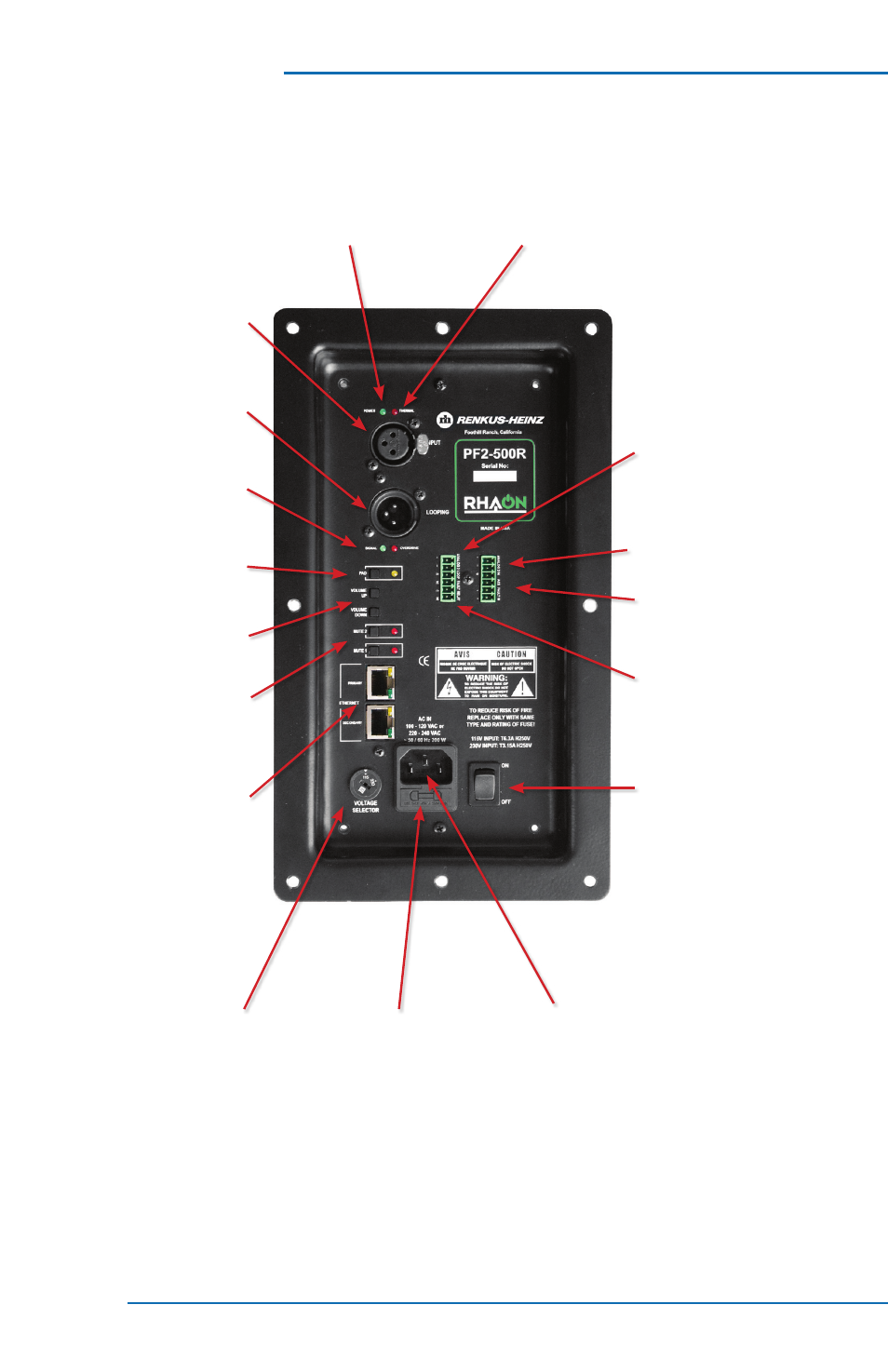

The input panel shown below is for the PF2-500R digital bi-amplifier used in the CF101LA-52R
The input panel of the PF1-500R amplifier used in the CF101LA-5R is identical, except for having
only a single Mute button. For more detailed information, please refer to the Renkus-Heinz RHAON
User’s Manual.
AC Line Voltage
Selector
AC Line Fuse
IEC Power
Connector
AC Power On/Off
Primary Analog Input
XLR female
Looping Analog
Output
XLR male
Signal & Overdrive
LED Status Indicators
Input Pad &
LED Indicator
Push Button
Volume Controls
Mute Buttons
Primary & Secondary
Ethernet (CobraNet) Inputs
RJ-45 female
Secondary Analog
Input & Looping Output
Serial Digital Audio Input
Fault Detect
Fault Relay
Power LED
Thermal LED
