Flying Arrays
CF101LA and CFX101LA arrays fly as easily as
they ground stack.
The heavy duty RHANG101LA Flybar supports
arrays of up to 6 cabinets ( 4 array modules and 2
subwoofers). It attaches easily to the top cabinet
using quick disconnect pins, whether the top
cabinet is a line array module or a matching sub-
woofer. The bridle design of the flybar allows easy
adjustment of the arrays tilt allowing the array’s
sonic output to be directed onto the audience. See
below for details.
Metric M10 attachment points are also provided on
both the array modules and the subwoofer for use
in permanent installations.
Arrays with 3 modules provide 45
o
vertical cover-
age and 4 module arrays 60
o
. Horizontal cover-
age remains constant at 90
o
.
Warning: Rigging loudspeakers is a serious undertaking that should be done only by qualified
and experienced professionals. Check with an architect or structural engineer to verify any building
attachment points. Renkus-Heinz is not responsible for any non Renkus-Heinz products or for any
misuse of Renkus-Heinz products.

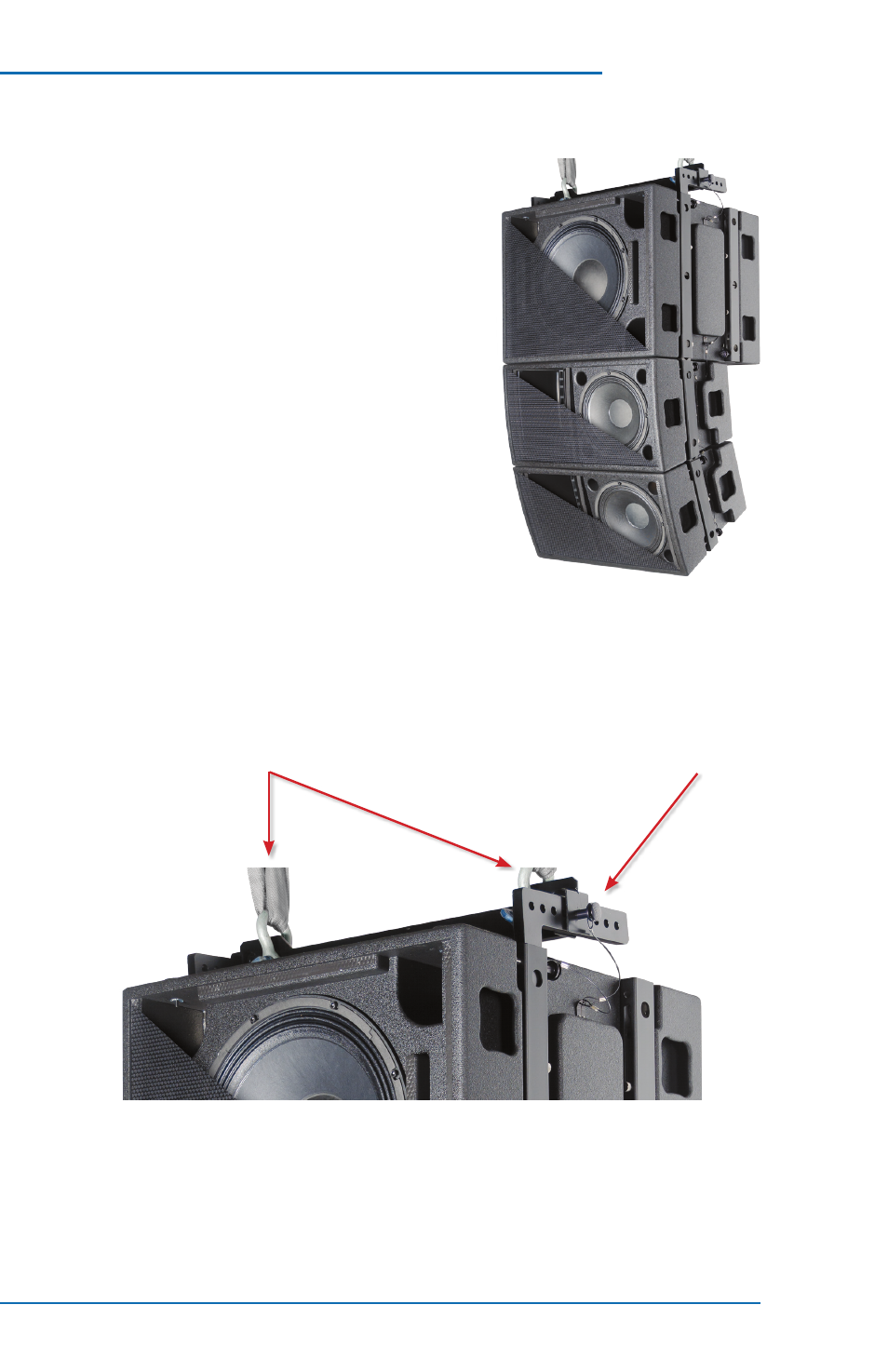

Typical Array
With two array modules and one subwoofer
Rigging Points
(three provided)
Adjustable Bridle
with quick disconnect pins
