Your CFX101LA loudspeaker was shipped to you wired for fully passive operation using the internal crossover.
It can be converted to bi-amplified operation by removing the connector plate from the cabinet and changing
several internal connections. For detailed instructions, please refer to the Renkus-Heinz Loudspeaker User’s
manual, form RH508.

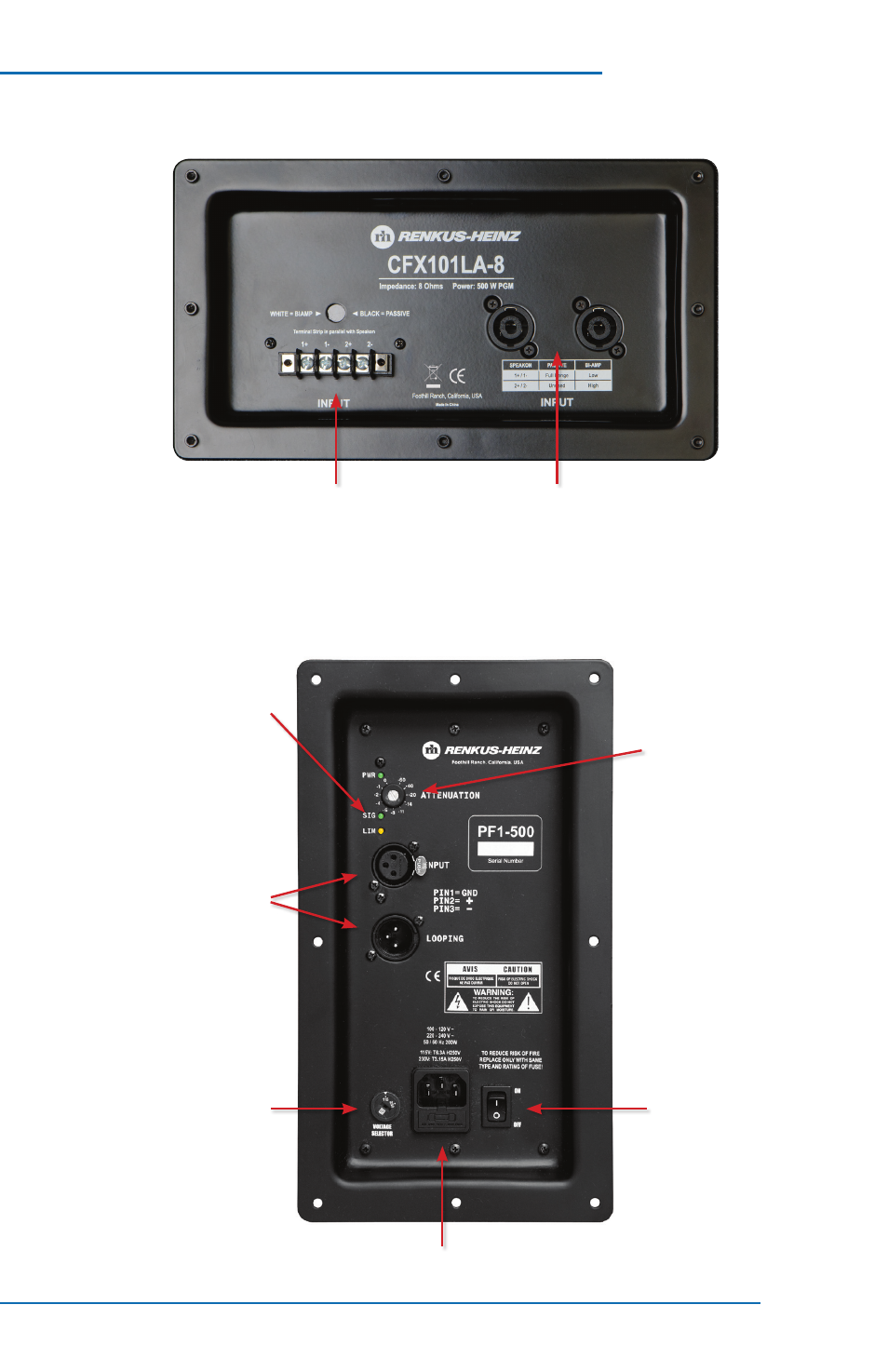

CFX101LA AND CF 101LA Connections
Screw Terminal Strip
Inputs
Looping In & Out
Neutrik 4-Pin Speakon Connectors
Signal & Limiting
LED Status
Indicators
Looping In & Out
(female in -
male out)
XLR Type
Connectors
110 V or 230 V
50/60 Hz AC
Input Voltage
Selector
Screwdriver
Adjustable
Gain Control
Power On/Off
Switch
IEC Power Connector & Fuse
