EASE FOCUS allows you to quickly and accurately determine the size of the array needed to cover
the audience and its proper location and aiming angle.
EASE FOCUS

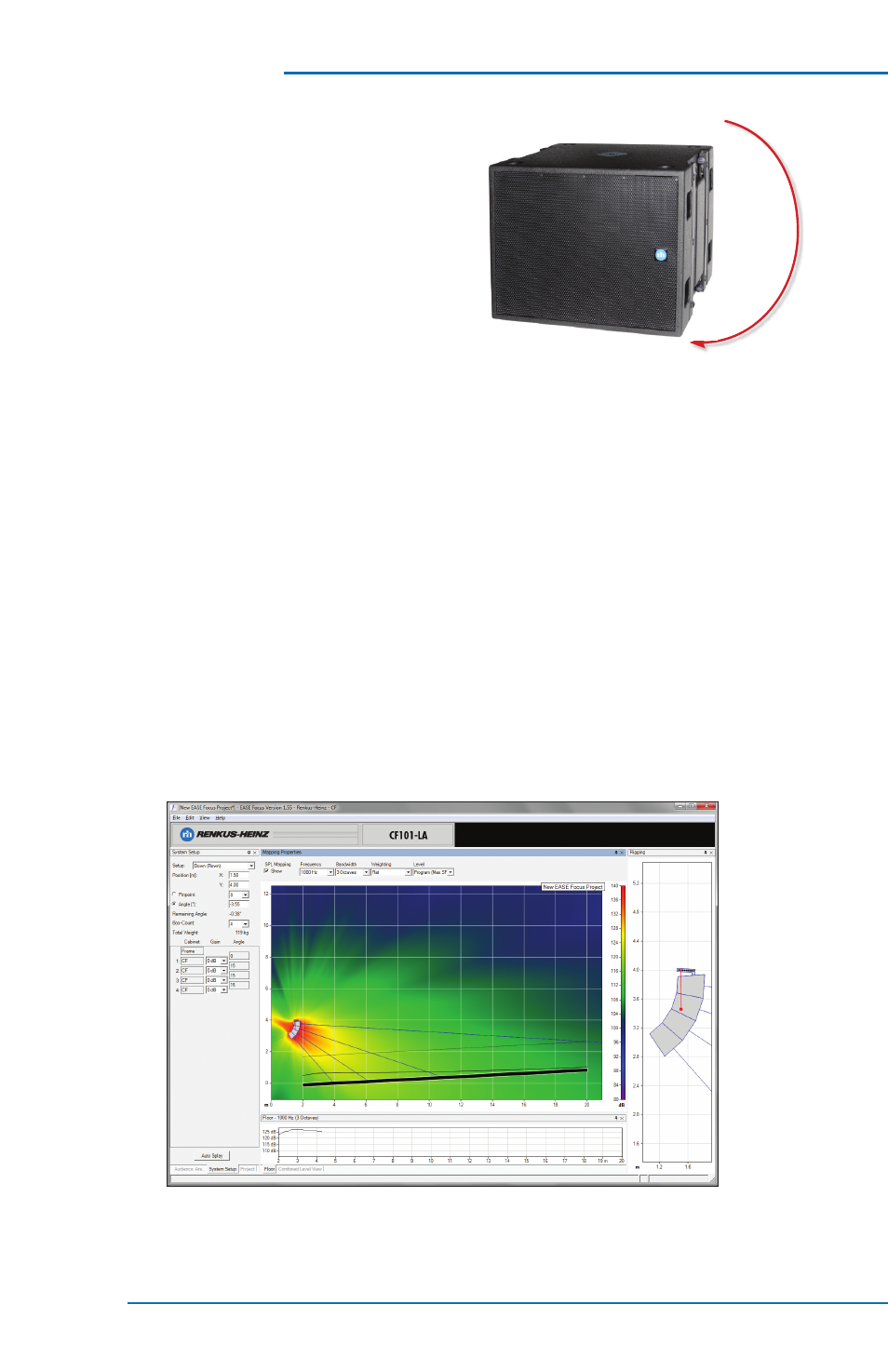

CF15S and CFX15S Subwoofer Assembly
CF15S and CFX15S Subwoofers are equipped with
rubber feet that fit into matching cups in the top of the
lower subwoofer when two units are stacked together.
As a result when the subwoofers are flown in an array
such as the one shown above, the subwoofer has
to turned upside down. Otherwise the feet prevent
the subwoofer and array module from being joined
together. In these assemblies the subwoofer’s lower
joining bars are used to join the cabinets
together. The top bars are not used.
When subwoofers are ground stacked as shown on the previous page there is no need to turn one
or both subwoofers upside down. In these assemblies the subwoofer’s upper joining bars are used
to join the subwoofer and array module together.
Note that the array modules are always attached to the front of the Subwoofers and not to the rear.
CF15S & CFX15S subwoofers
Must be flipped when flown
Important Mounting Instructions
To ensure proper air movement for the cooling of self-powered loudspeakers, we recommend
a minimum of 2 to 3 feet of clearance in front of the loudspeaker and at least 3 to 4 inches of
clearance from the sides and the rear cabinet surfaces.
