Floor Mounted Systems
Cf101LA and CFX101LA point source line array
modules and their matching CF15S and CFX15S
subwoofers were designed for maximum flexibility.
They can be used as a single cabinet or in muli-
cabinet arrays and can be ground stacked, pole
mounted or flown.
Each module adds 15 degrees of vertical coverage
and additional level to the array.
Several typical arrangements are shown here.
As a general rule, pole mounted arrays should
be limited to two CF/CFX101LA modules while
ground stacks can include as many as 3 modules
plus one or two matching subwoofers.
Safety considerations are always a factor in any
venue and consideration must be given to the
stability of any ground stack.

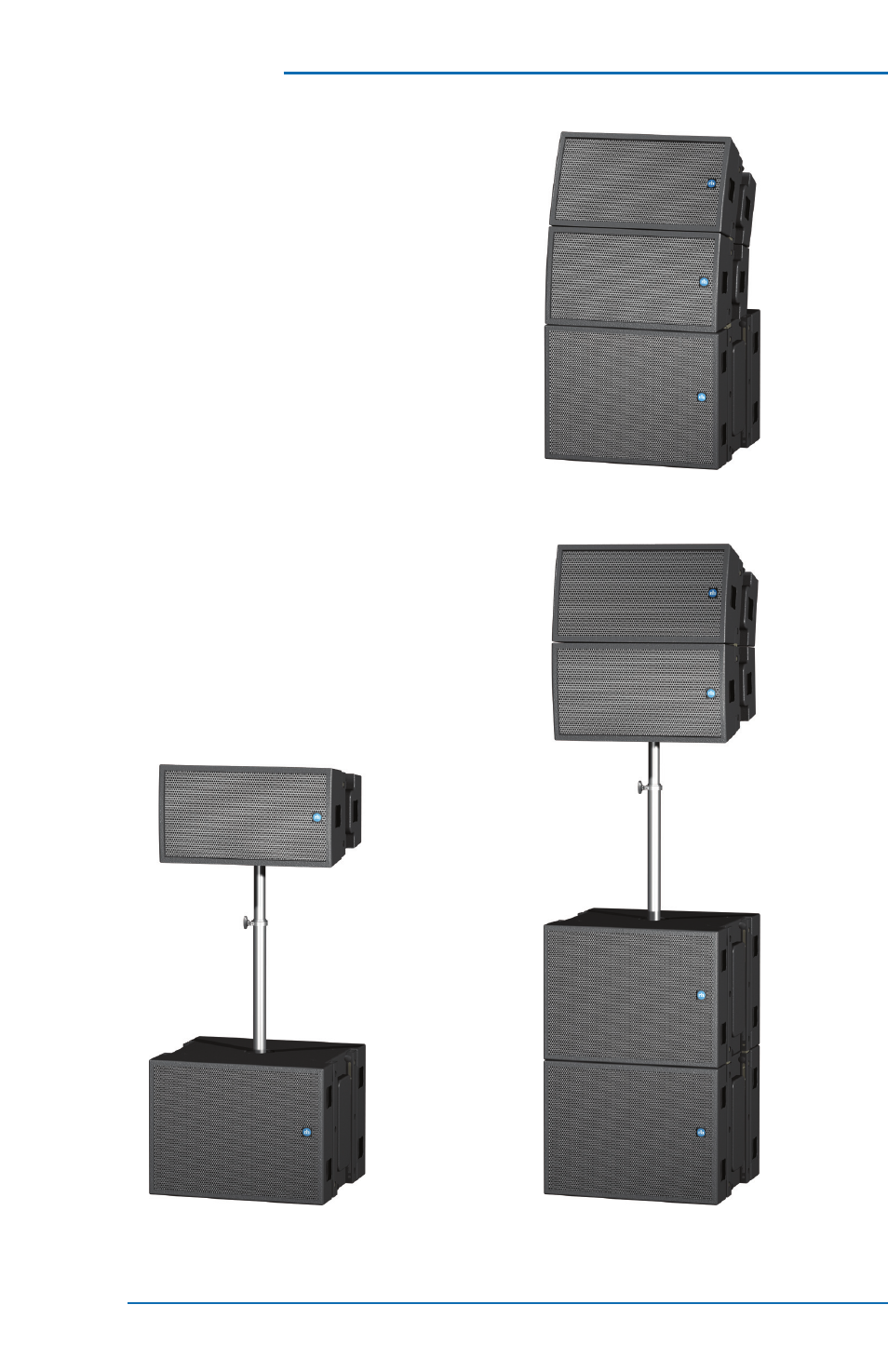

Floor System
with single array module and subwoofer
Floor System
With dual array modules and dual subwoofers.
Ground Stack
with dual array modules and single subwoofer
