- 8 -
Cont ...
2 LOCATION - HOT WATER INSTALLATION

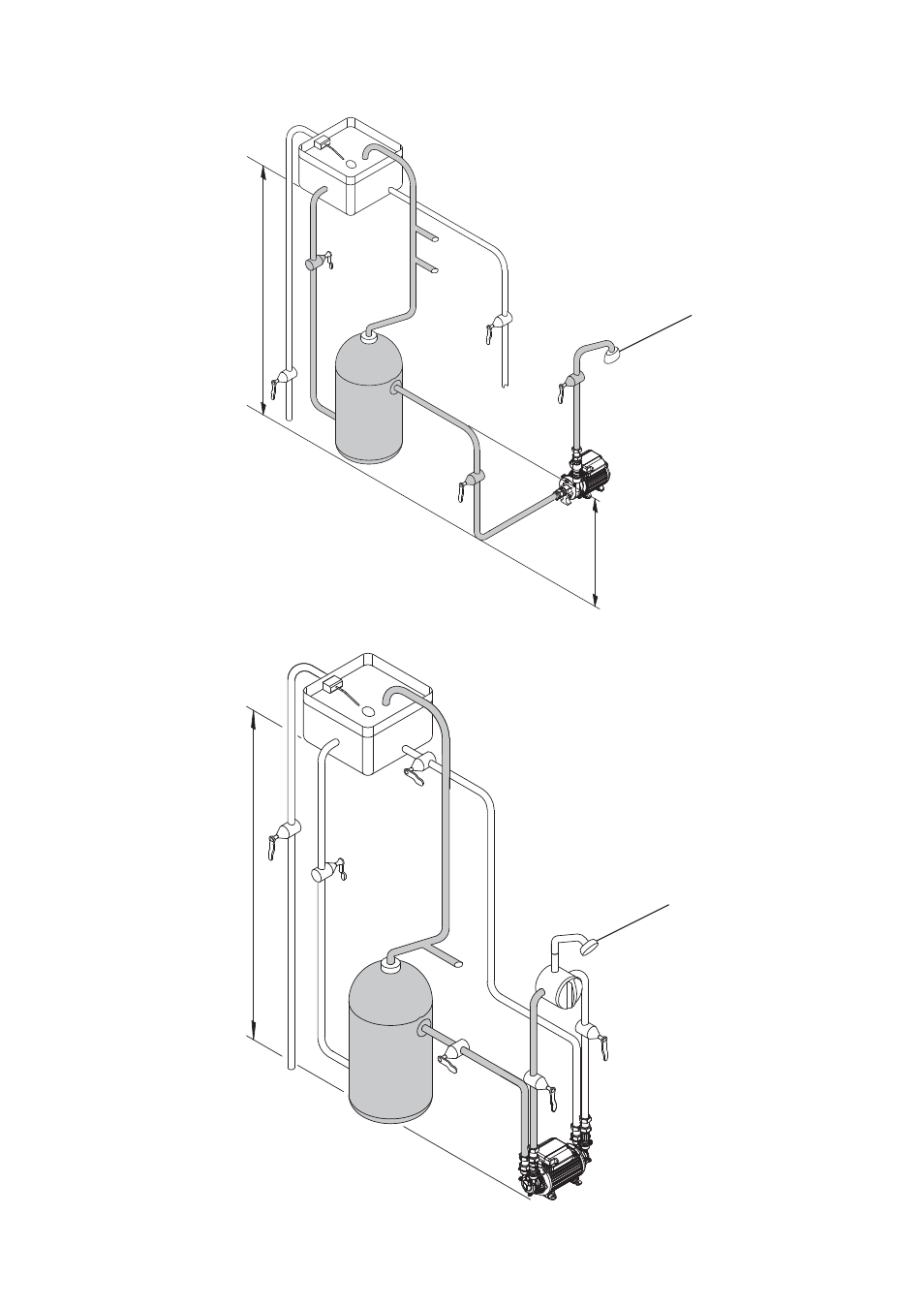

Fig. 5
Static inlet pressure 14
metres max
1
metre min
preferred area
Outlet head must be
below bottom of cold
water tank and able
to pass a minimum of
1 l/min of gravity flow
Fig. 6 - Twin Pump (PHD FL)
Static inlet pressure 14
metres max
1
metre min
Outlet head must be
below bottom of cold
water tank and able
to pass a minimum of
1 l/min of gravity flow
