- 10 -
Cont ...
The wire which is coloured green and yellow must be connected to the terminal
in the connection unit which is marked with the letter E or by the earth symbol:
or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
3.21

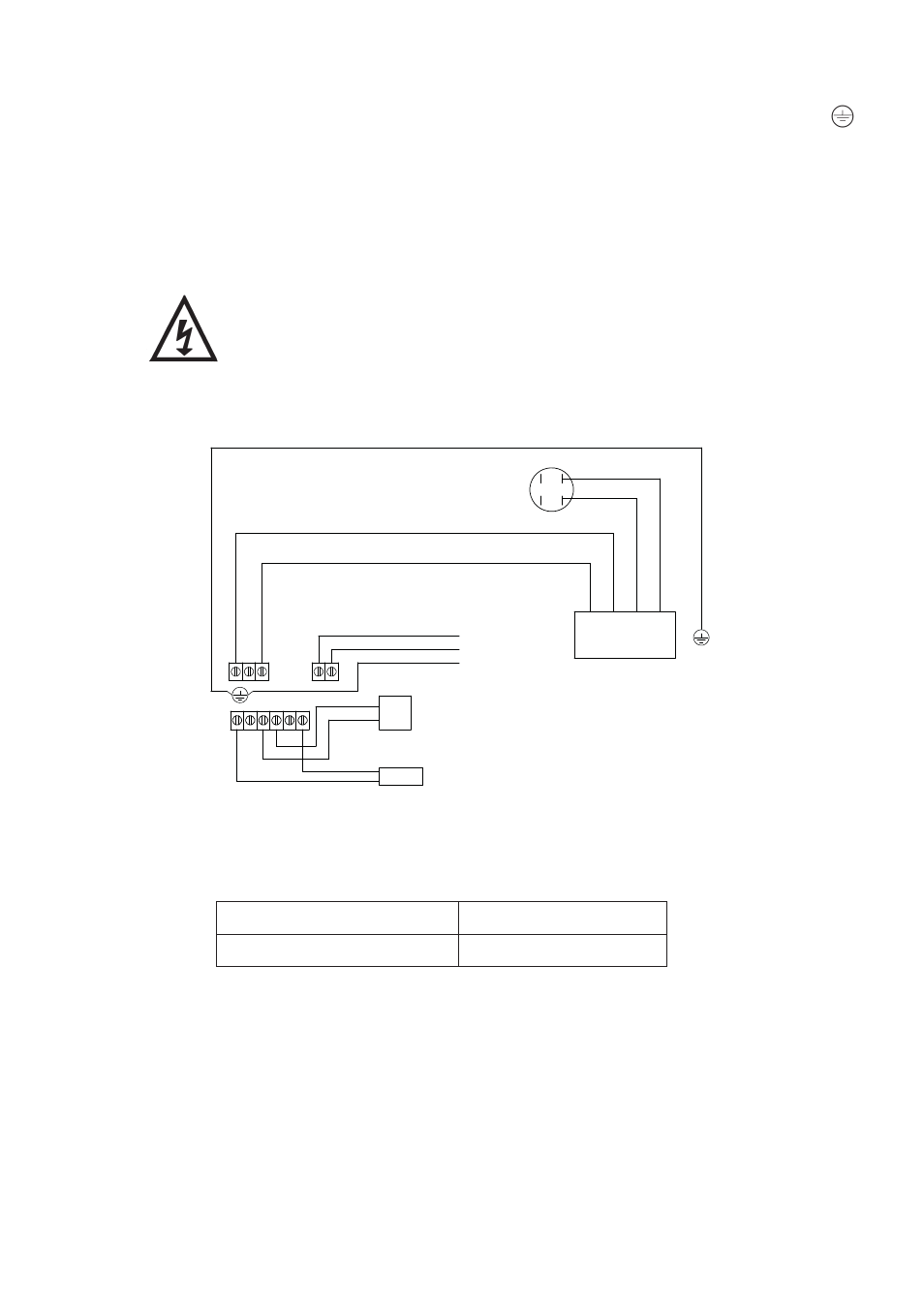

Wiring Diagram:
The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that any disturbance of this
internal wiring is avoided and the factory routing and securing of
all internal wiring is always maintained.
Model
Fuse Size (AMPS)
All Models
13
3.22
Fuses: The following fuse size should be used with the appropriate pump:
GREEN / YELLOW
BLUE
BROWN
L
M
A
N
N
L
E
N 230 VAC/1PH/50Hz
SUPPLY
RED
CAPACITOR
MOTOR
GREEN / YELLOW (LINK WIRE)
RE
D
YELLOW
RED
BLA
CK
BLACK
FLOWSWITCH
REED (S3)
S3 S3 S2
S2
S1
S1
PRESSURE
SWITCH (S1)
All models
Fig. 7
