STORAGE
If this product is not installed immediately on receipt, store in a frost and vibration free
location in its original packaging .
Float Switch Cleaning
The float switch assembly can be cleaned as follows:-
1) Move the selector (1) to the ‘Automatic’ (down) position Fig . 7 .
2) Remove the two screws (2) located in recesses at the top of the float housing (3) Fig . 7 .
3) Gently pull the float housing (3) away and down from the pump body - DO NOT
INVERT float housing (3) Fig . 8 .
4) Note the position of the two floats (4) within the float housing (3) Fig . 9 .
5) Remove and clean the floats (4) Fig . 10 .
6) Clean the inside of the float housing (3) and the float ratchet stops (5) ensure these
stops are clear of all debris and free to move Fig . 10 & 11 .
7) Clean around switch protrusion (6) Fig . 12 .
8) Reassembly is the reverse of the above procedure .
9) Refer to commissioning section to re-start the pump .

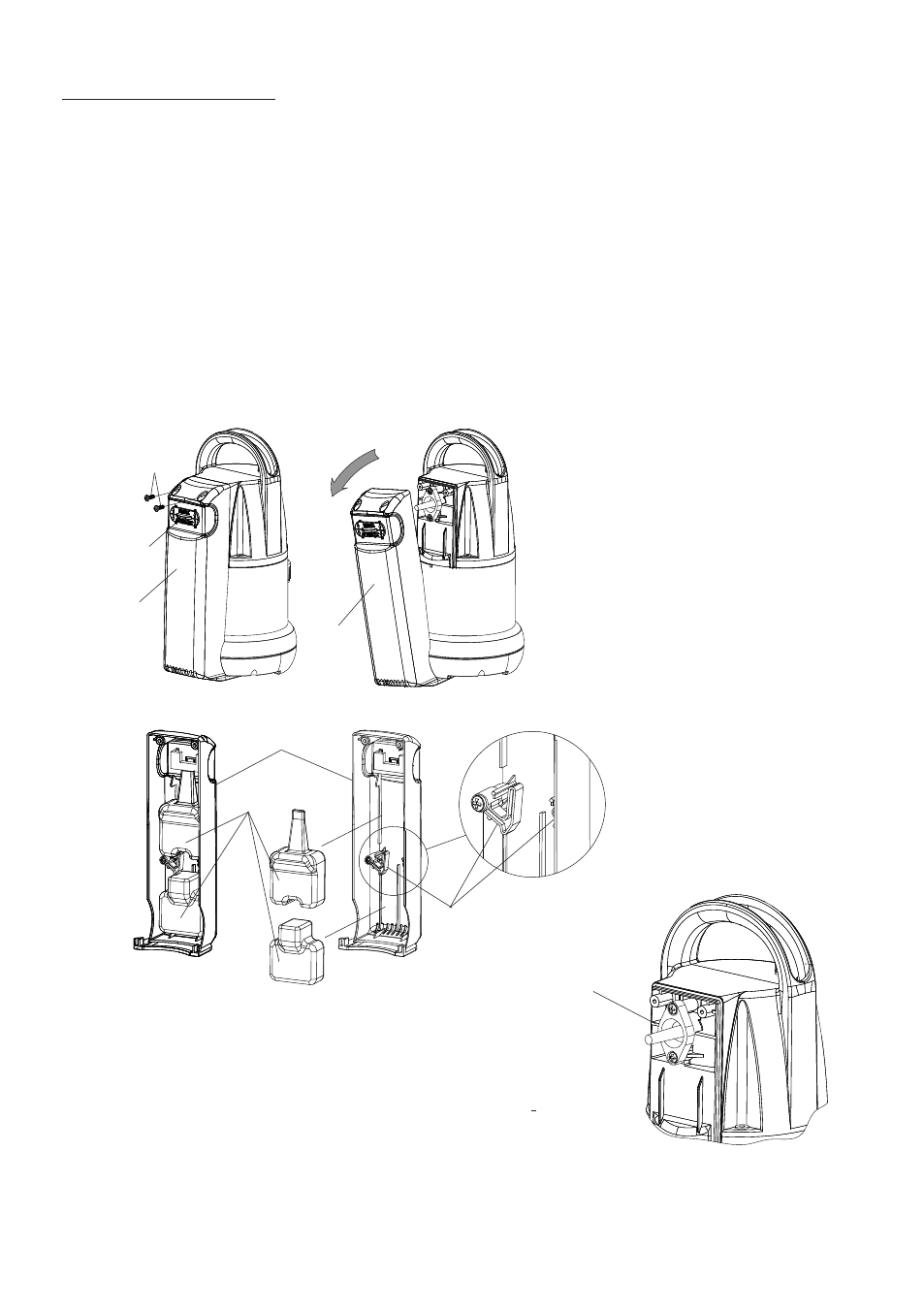

Fig . 8 Fig . 7
Fig . 9
Fig . 10
Fig . 11
Fig . 12
3
3
4
1
2
3
5
6
