2 LOCATION - SINGLE PUMP
2 LOCATION - TWIN PUMP
Cold water connection:
2.26
The cold water supply: Must be a DEDICATED AIR FREE supply via a tank
connector, and must be positioned at a slightly lower level (25 mm minimum) than
the feed pipe to the hot water cylinder.
Do not connect to the mains.

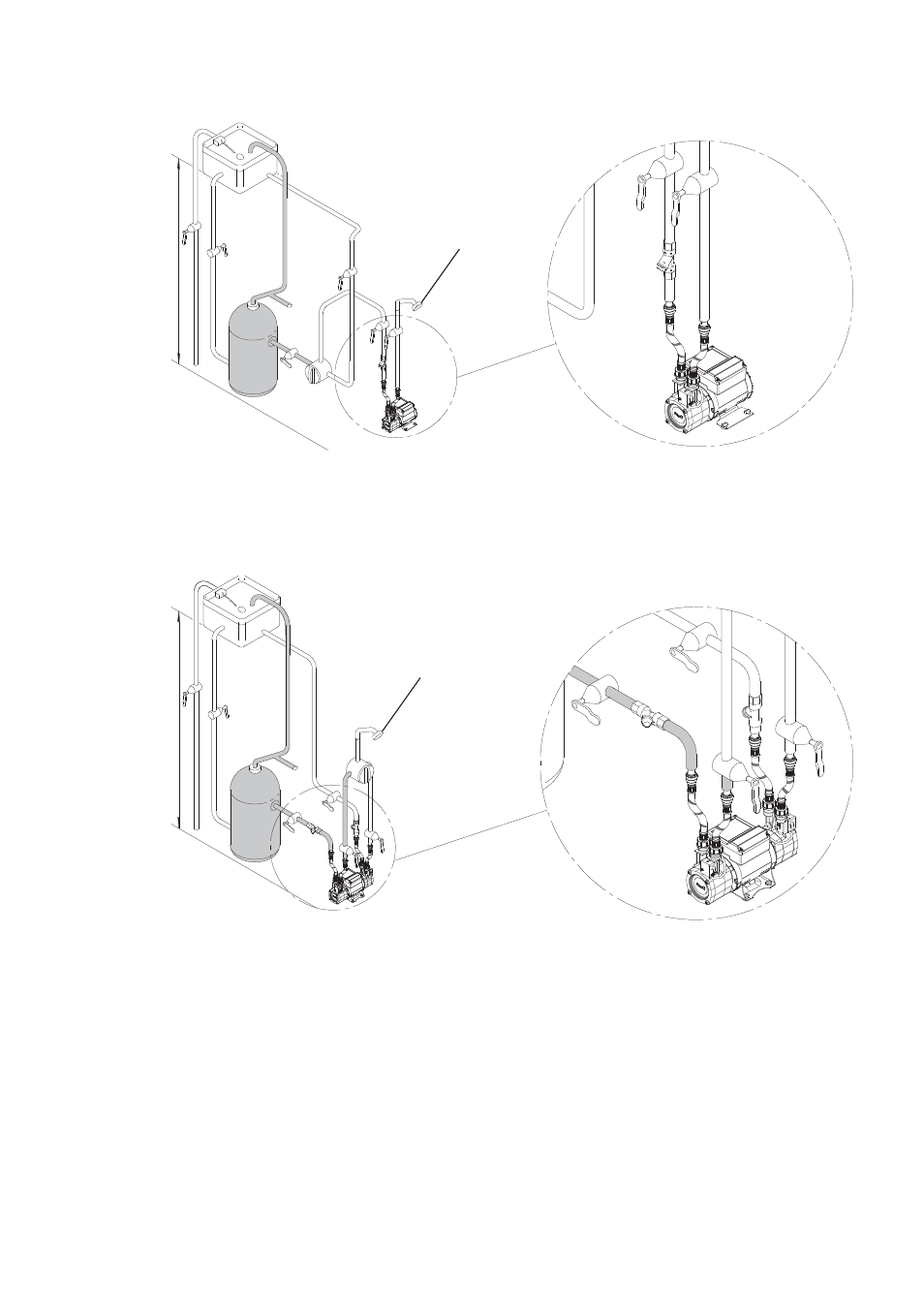

Twin Pump System
Fig. 3
Max. static inlet pressure
13
m
Outlet head must be
below bottom of cold
water tank and able
to pass a minimum
of 0.8 l/min of gravity
flow
Single Pump System
Fig. 2
Max. static inlet pressure
13
m
Outlet head must be
below bottom of cold
water tank and able
to pass a minimum
of 0.8 l/min of gravity
flow
