- 12 -
Cont ...
If you have any concern either about using push-in fittings or should the joint
leak on final test, isolate the water supplies and contact PumpAssist on
0844 98 000 97.

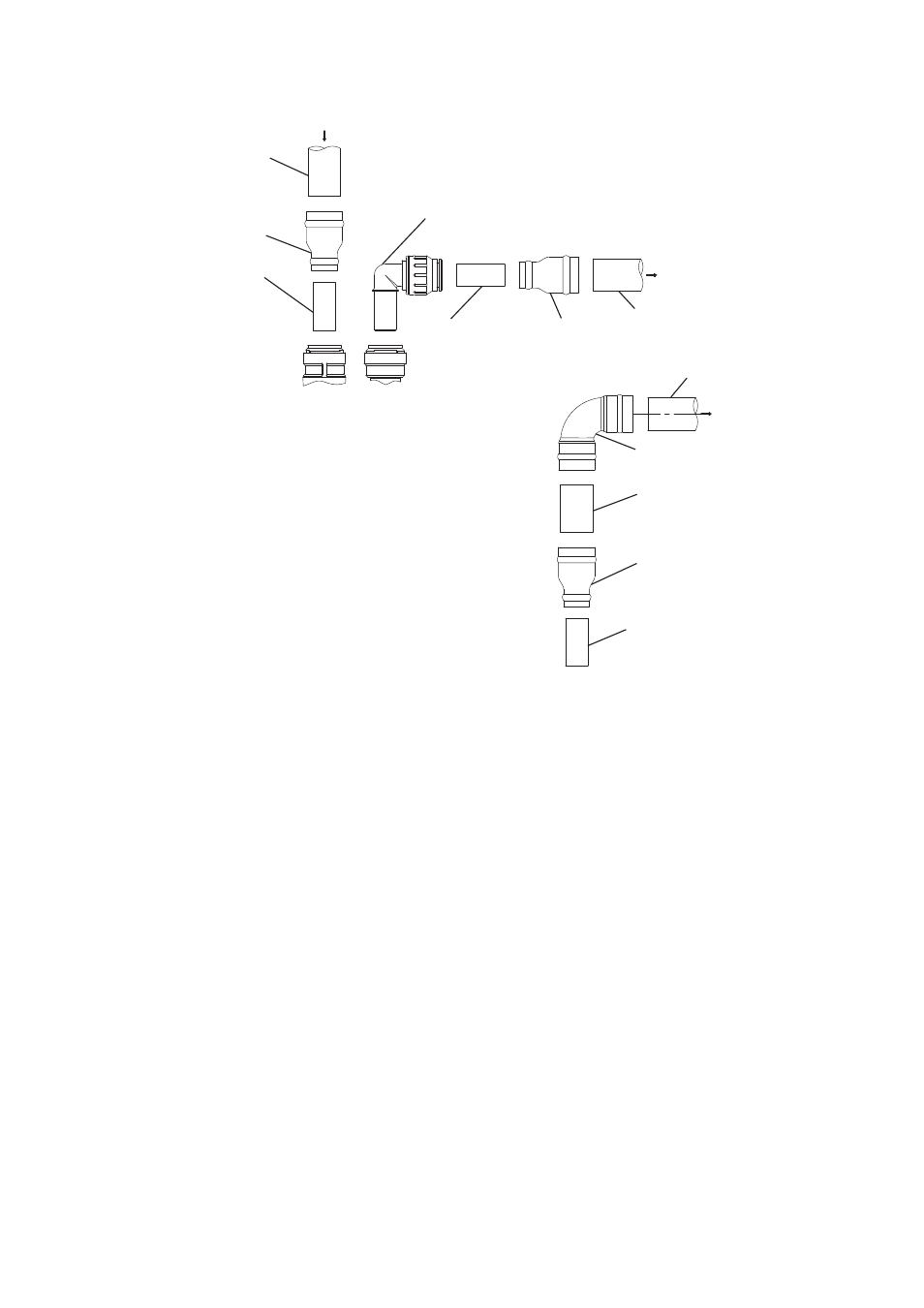

3.14 Typical Low Level Installation:
Fig. 11
22 mm Outlet pipework.
22 x 15 mm Reducer
22 mm Elbow
22 mm Copper pipe
15 mm Copper pipe
Outlet
22 mm Inlet pipework fed
from water storage system.
22 mm Copper
outlet pipework
Outlet
Inlet
In the case of horizontal feeds use a 15 mm
compatible stem elbow (not supplied). Do not
bend the hose more than 30° as they may become
damaged, transmit noise or leak.
22 x 15 mm Reducer
22 x 15 mm
Reducer
15 mm Copper pipe
15 mm Copper
pipe
