Stuart Turner Showermate S1.8 bar Twin - Manual (Page 14)

- 14 -
Cont ...
The wire which is coloured green and yellow must be connected to the terminal
in the connection unit which is marked with the letter E or by the earth symbol:
or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.

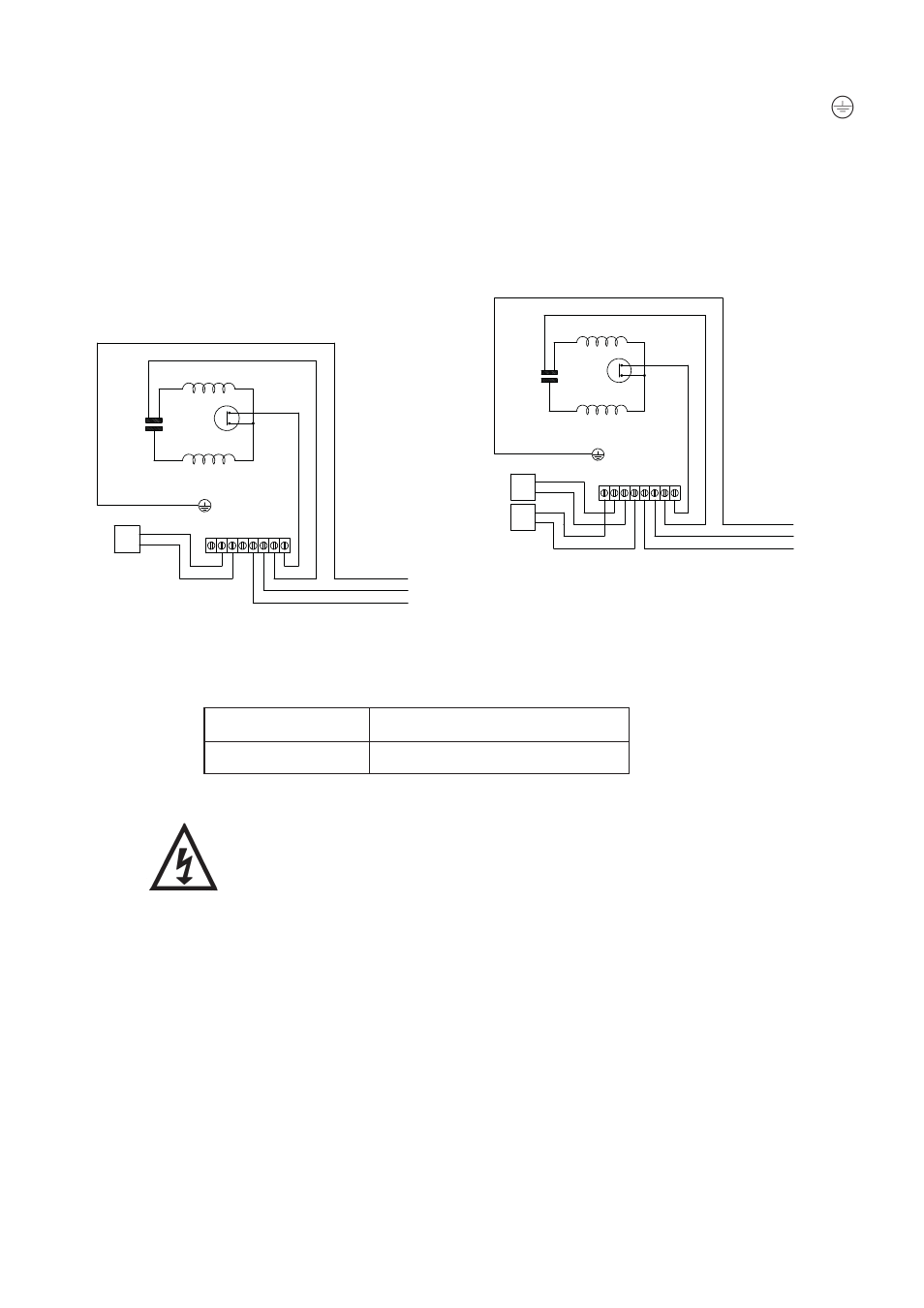

4.21 Wiring Diagrams:
Model Fuse Size (AMPS)
All Models 5
4.22 Fuses: The following fuse size should be used with the appropriate pump.
4.23 Supply Cord Replacement:
The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a
special cord assembly available from Stuart Turner or one of their approved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to the
same pattern.
For information on cable connection consult the wiring diagram and cable gland
fitting instructions.
FLOWSWITCH
REED (S2)
GREEN / YELLOW
BLUE
BROWN
L
LOAD N S2 S2 L
E
N
S1 S1
MAIN WINDING
THERMOTRIP
CAPACITOR
START WINDING
BR
OW
N BLAC
K
BLUE
BROWN
230 VAC/1PH/50
SUPPLY
LINK
WIR
E (
BLUE)
BLUE
LINK
WIR
E (
BLUE)
FLOWSWITCH
REED (S2)
GREEN / YELLOW
BLUE
BROWN
L
LOAD N S2 S2 L
E
N
S1 S1
FLOWSWITCH
REED (S1)
MAIN WINDING
THERMOTRIP
CAPACITOR
START WINDING
BR
OWN
BLAC
K
BLUE
BROWN
BLUE
BROWN
230 VAC/1PH/50Hz
SUPPLY
LINK
WIR
E (
BLUE)
BLUE
LINK
WIR
E (
BLUE)
Single Pumps
Fig. 13 Twin Pumps
Fig. 14
