- 8 -

Cont ...

Hot water connection:
2.29

Hot water cylinder or storage tank: When a hot water cylinder or storage tank

is used, ensure the pipework size from the cold water storage to the hot water

storage is of adequate size and a minimum of 28 mm.

2.30

Hot water supply: The pump must be supplied with a dedicated feed direct

from the hot water cylinder or storage tank which should be via a secondary

dedicated tapping (see Fig. 8).

Do not connect to the mains.

2 LOCATION - HOT WATER INSTALLATION

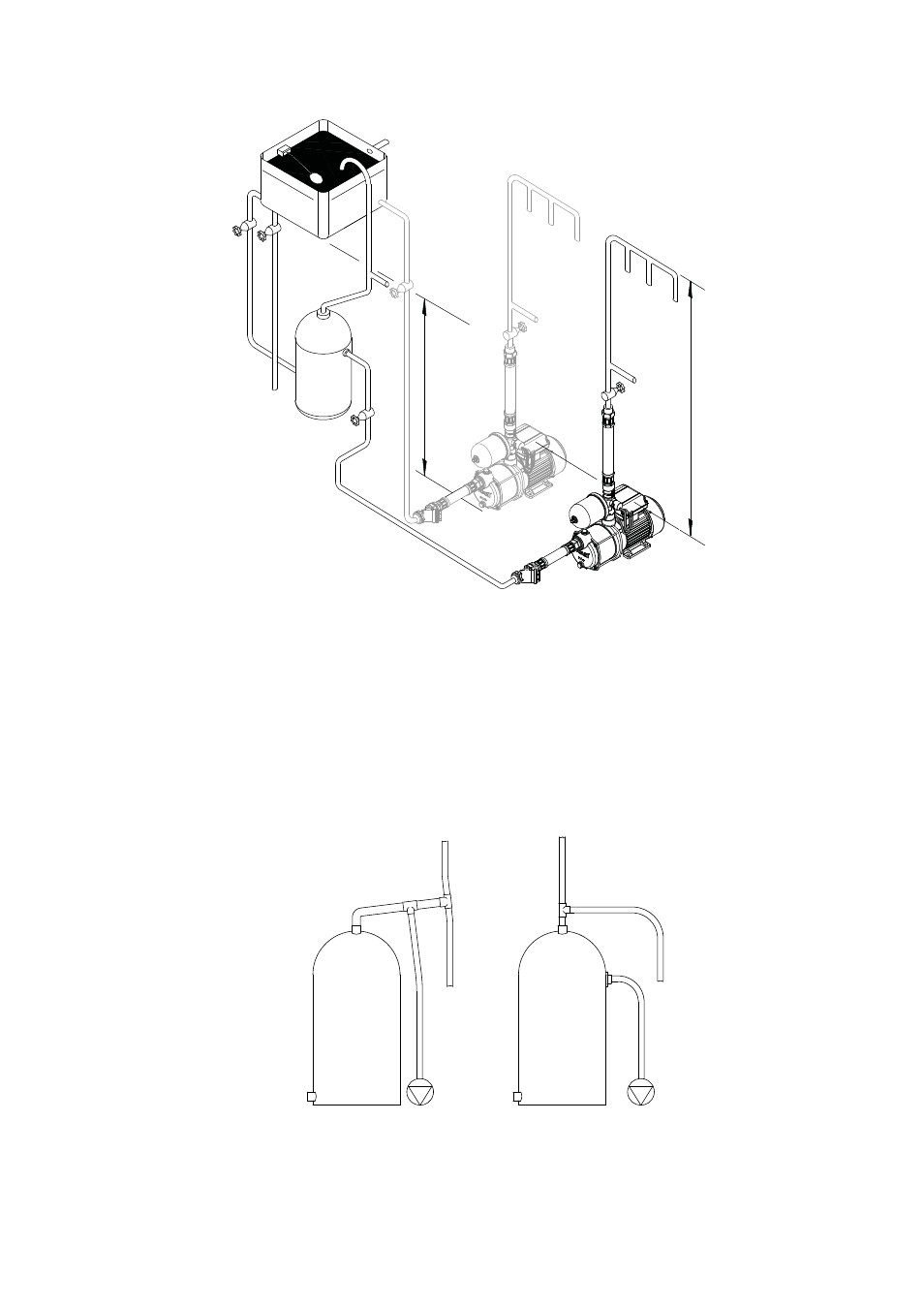

Fig. 7

Fig. 8

Hot water pump

Off expansion
pipe with rising
28 mm offset
reducing to
28 mm pipework
to pump and
expansion pipe.

Factory installed
secondary tapping with
28 mm pipework to
pump.

Static inlet pressure

Min. 1 m

Max. 10 m

Static outlet pressure

Max. 13 m
