- 3 -

CHECKLIST

Note: Item C & G are supplied loose and will require fitting to the pump inlet/outlet.
Tighten to torque 4/5 Nm.
Your product may vary slightly from the picture above.

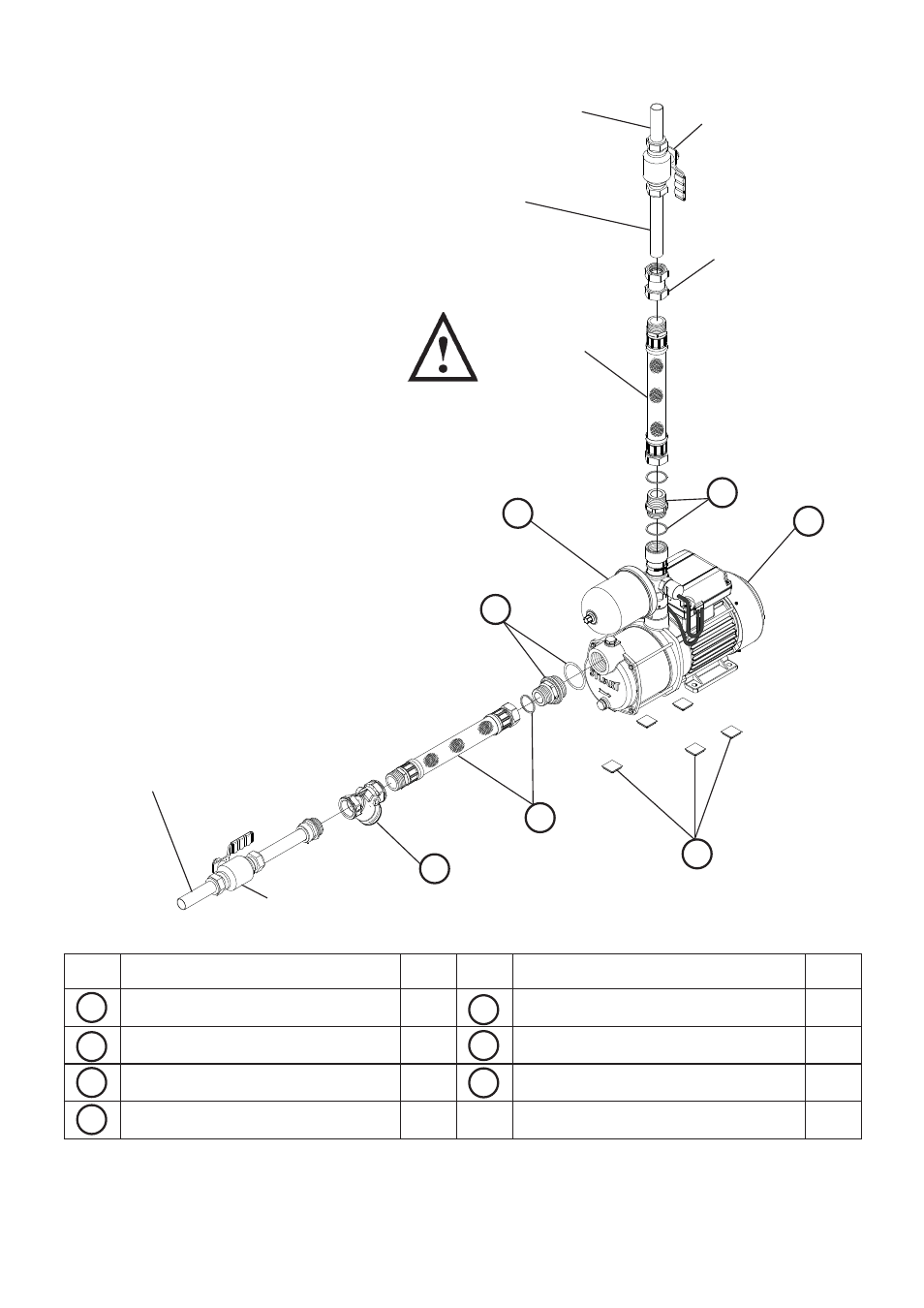

Fig. 1

28 mm copper
inlet pipework
(suction).

28 mm isolating valve
(non restrictive) and
fittings

(not supplied)

must be fitted to allow
easy pump service.

28 mm copper outlet pipework (discharge).

Short 28 mm copper pipe
tails to connect between
isolating valve and flexible
pipes.

28 mm isolating valve
(non restrictive) and
fittings

(not supplied)

to allow easy pump
service.

28 mm - G 1 connector
(not supplied) must
be fitted

28 mm flexible
pipes. These
hoses are fitted
with G 1 female
connector suitable

for connection to a G 1 (1 “ BSP)
adaptor or fitting.

A

B

C

D

E

F

G

Item Description

Qty Item Description

Qty

Pump

1

Inline strainer

1

Hose & sealing washer

2

Pressure vessel

1

Inlet connector & ‘o’-ring

1

Outlet connector & gasket

1

Anti-vibration feet

5

A

B

C

D

E

F

G

IMPORTANT: With the pump
removed from its packaging check
for any damage prior to installation.
If any damage is found contact Stuart
Turner Ltd within 24 hours of receipt.
