Page 17
Do not leave the MCX-2F unattended while emptying the waste tank.
The pump will be destroyed if allowed to run for more than one
minute after waste tank is empty.
Bulk Waste Container
& O VE RFLO W
FILL RA DIA TOR
TES T EM PTY WA STE TAN K
& O VER FLO W
LO WER RA DIA TOR
Black Hose
SYS TEM PRE SSU RE
LO WER RA DIA TOR & O VER FLO W
EMP TY W AST E TA NK
EXC HAN GE C OO LAN T
OFF
OFF
OFF
FILL RA DIAT OR & OV ER FLO W
EXC HAN GE C OOL ANT OR
SYS TEM VA CUU M
Green Hose
EXC HAN GE C
OO LAN T O R
FILL RA DIA TOR & O VER FLO W
LOW ER R
ADIA TOR
& O VER FLO W EM PTY WA STE TAN K
SYS TEM VAC UUM
OFF
OFF
FILL RA DIA TOR
& O VER FLO W
EXC HAN GE C OO LAN T
TES T
SYS TEM PR ESS URE
EMP TY W AST E TA NK
OFF
& O VER FLO W
LOW ER R ADIA TOR

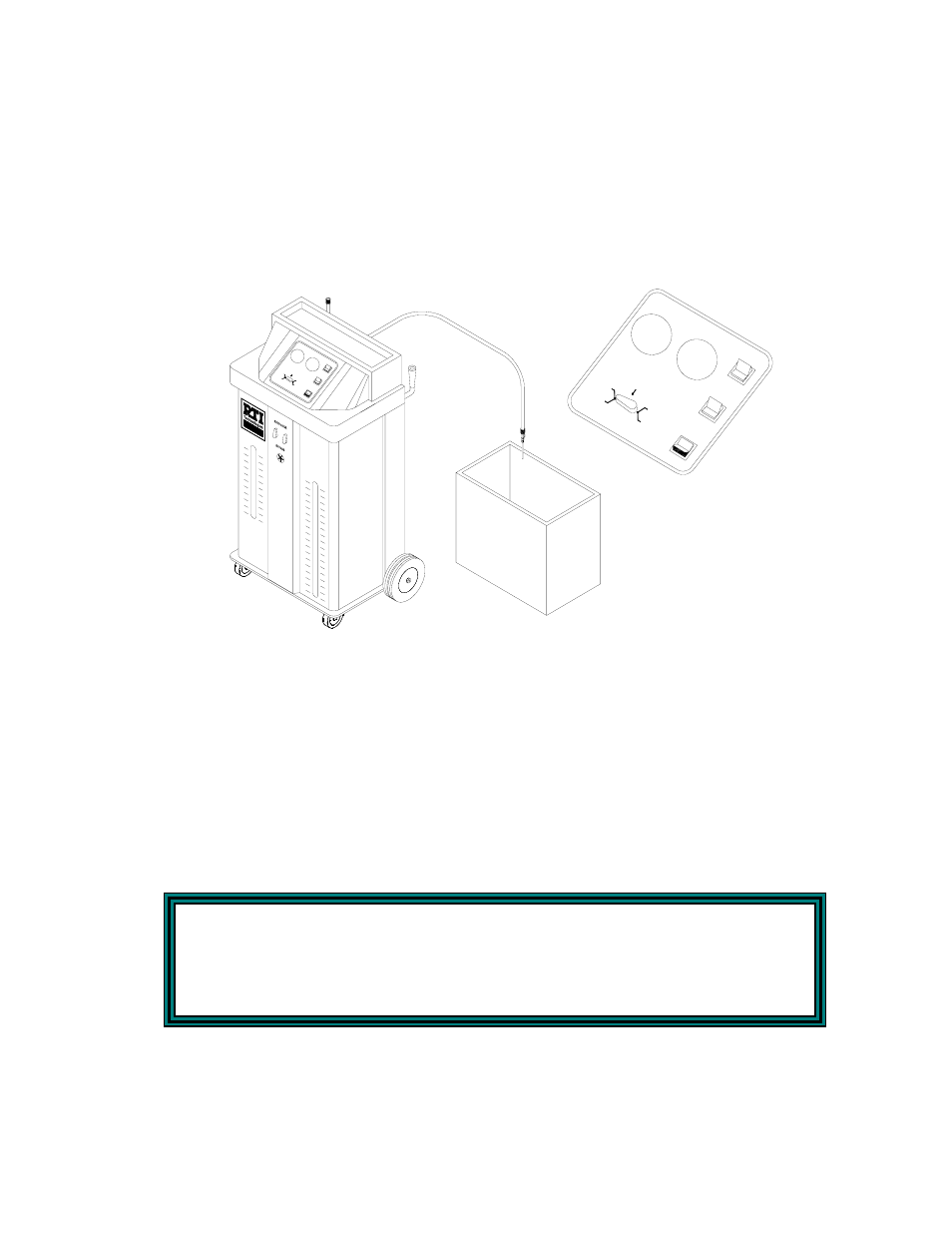

EMPTYING THE WASTE TANK
The Waste Tank can be emptied two different ways.
A. The Waste Tank can be removed from the MCX-2F and transported to the area
where it is to be emptied. A quick connect coupler is installed on the black hose
to make this disconnection quick and clean.
B. The MCX-2F can be used to pump the waste coolant directly from the Waste
Tank into another waste collection tank. A 12 volt battery will be required to
power the MCX-2F.
1. Install the Wand on the black hose.
2. Turn both valves on the front of the MCX-2F to EXCHANGE.
3. Turn the control valve to EMPTY WASTE TANK.
4. Press the top of the EMPTY WASTE TANK selector switch to start the pump.
5. Hold the Wand over the Bulk Waste Container and open the valve.
6. Waste coolant will be pumped directly from the MCX-2F Waste Tank into the
Bulk Waste Container.
7.
Close the valve on the Wand when done.
8. Press the bottom of the EMPTY WASTE TANK selector switch to stop the
pump.
