MAHLE RTI MCX-2F (Rev C) - Manual (Page 17)

Page 16
Black Hose
LO WE R R ADIA TOR EM PTY WA STE TA NK
& O VER FLO W
SYS TEM PR ESS URE
SYS TEM VA CUU M
LOW ER R ADIA TOR & O VER FLO W
TES T EXC HAN GE C OO LAN T O R
EM PTY WA STE TA NK
EXC HAN GE C OOL ANT & O VER FLO W
FILL RAD IAT OR
OFF
OFF
FILL RAD IATO R & OV ERF LOW
OFF
LOW
ER R ADIA
TOR
& O VER
FLO W EM PTY WA STE TAN
K
SYS TEM
VA CUU
M
FILL RA DIA TOR
& O VER FLO W
OFF
OFF
FILL RA DIA TOR
& O VER
FLO W
EXC HAN
GE C OOL
ANT
TES T
SYS TEM
PR ESS URE
EM PTY WA STE TAN K
EXC HAN GE C
OO LAN T O R
OFF
& O VER FLO W
LOW ER R
ADIA
TOR
Green Hose
Green Hose
Wand
(Small)
New Coolant Tank

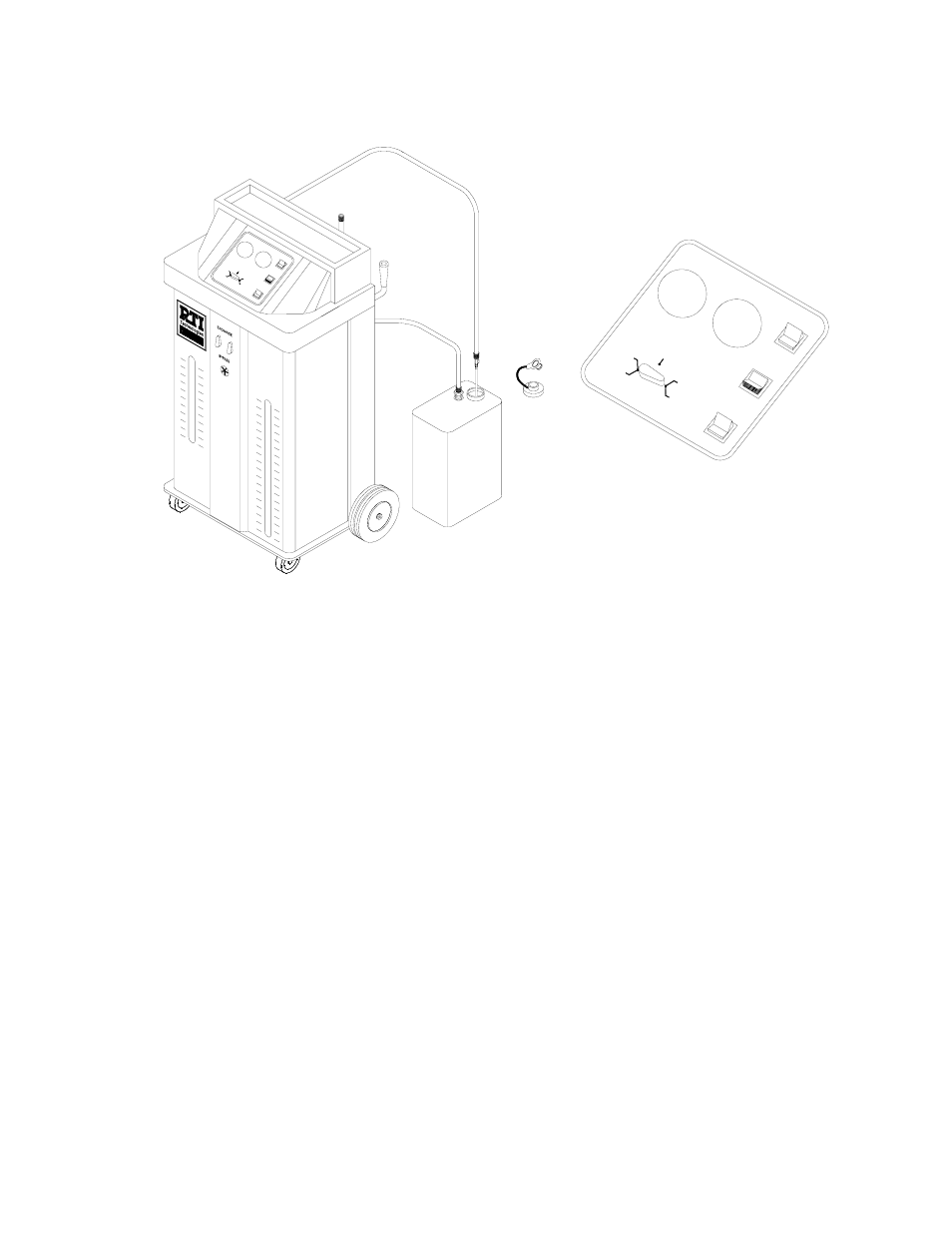

CHANGING COOLANT TYPE
10. Press the top of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to start the pump.
11. Insert the end of the Wand in the fill port of the New Coolant Tank. Open the
valve on the Wand.
12. The pump will prime and hoses will fill with the new coolant.
13. Close the valve on the Wand when new coolant starts flowing.
14. Press the bottom of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to turn off the pump.
15. Place the cap on the New Coolant Tank and slide it into the MCX-2F.
