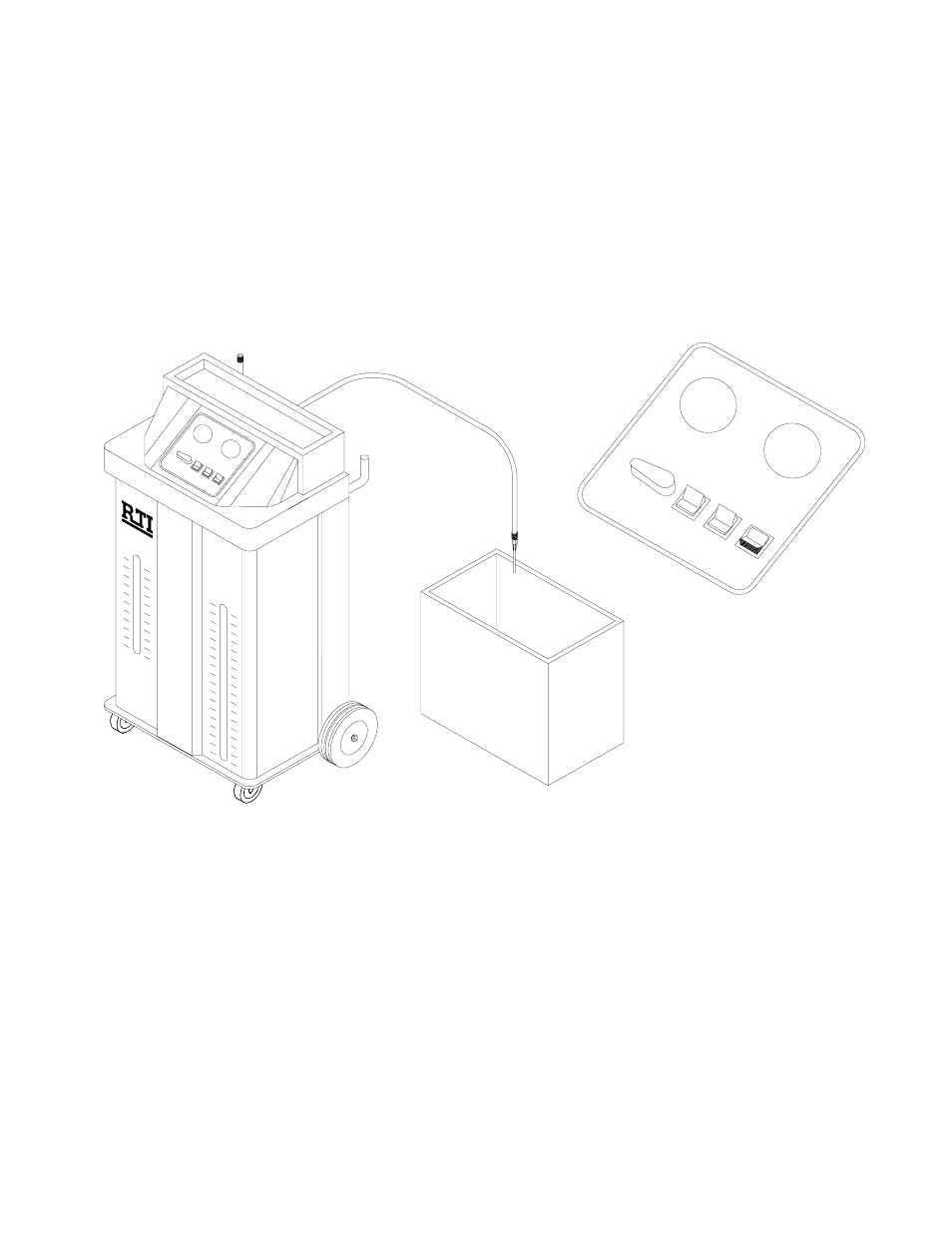

EMPTYING THE WASTE TANK
The Waste Tank can be emptied two different ways.
A. The Waste Tank can be removed from the MCX-2 and transported to the area
where it is to be emptied. A quick connect coupler is installed on the black hose
to make this disconnection quick and clean.
B. The MCX-2 can be used to pump the waste coolant directly from the Waste
Tank into another waste collection tank. A 12 volt battery will be required to
power the MCX-2.
1. Install the Wand on the black hose.
2. Press the top of the EMPTY WASTE selector switch to start the pump.
3. Hold the Wand over the Bulk Waste Container and open the valve.
4. Waste coolant will be pumped directly from the MCX-2 Waste Tank into the
Bulk Waste Container.
5. Close the valve on the Wand when done.
6. Press the bottom of the EMPTY WASTE selector switch to stop the pump.
