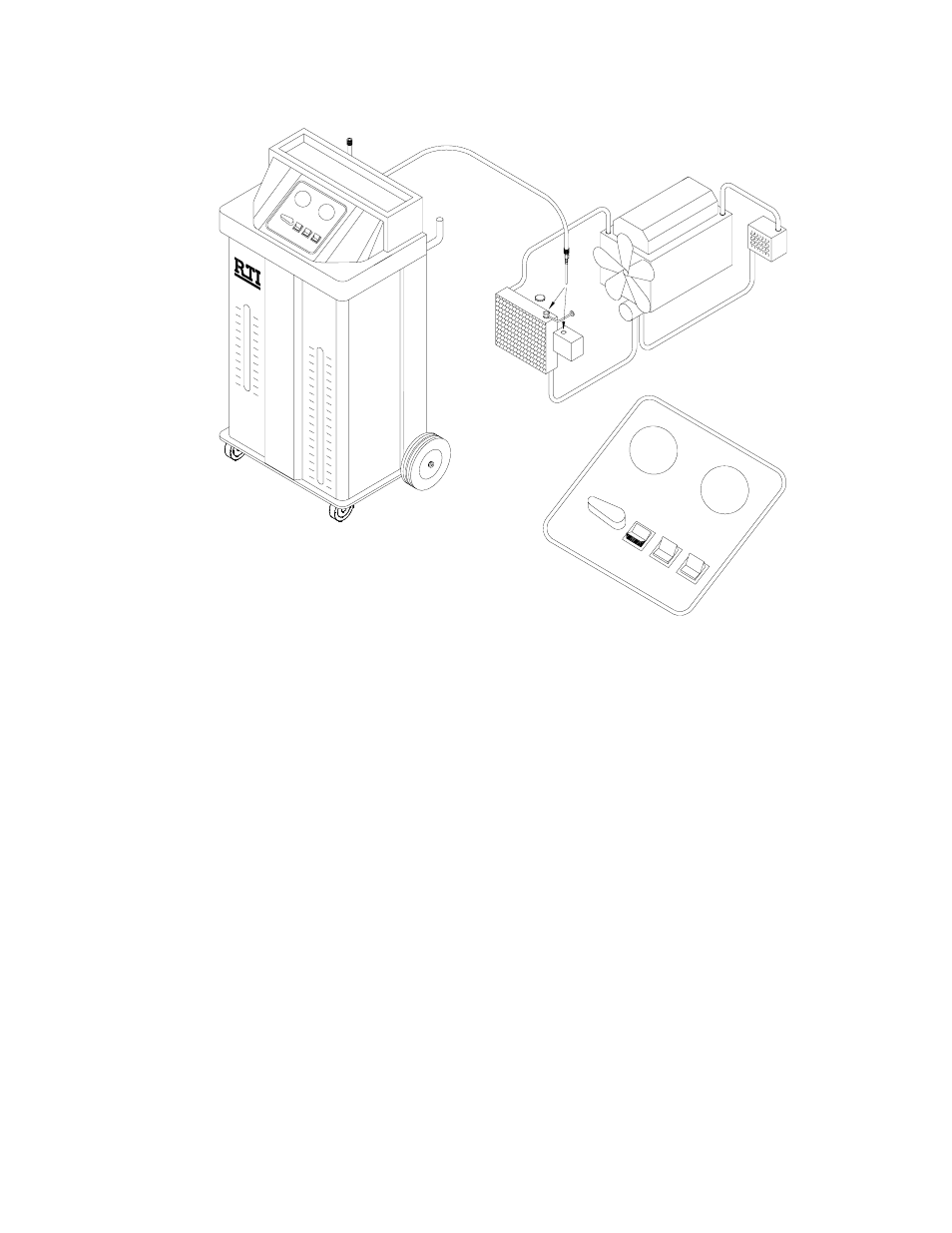

LOWERING COOLANT LEVEL
WARNING: Coolant in the vehicle cooling system may be extremely hot and
under great pressure. Wear safety glasses and use protective
clothing and gloves. Use extreme caution when removing
radiator cap and hoses.
1. Slowly and carefully remove the cap from the radiator.
2. Remove cap from overflow container.
3. Attach the wand to the black hose. Close the valve.
4. Press the top of DRAIN SYSTEM selector switch to turn on pump.
5. Use the Wand to empty the overflow container and lower the level of coolant
in the radiator to a level just below the upper hose connecting the radiator to
the engine. Open valve on wand as required.
6. Press bottom of DRAIN SYSTEM selector switch to turn off pump.
7. Replace caps on the radiator and overflow container.
