Completing the job, Page 12, Off on – MAHLE RTI MCX-2 (Rev A) User Manual
Page 13
Page 12
OFF
TES
T
SYS
TEM
OFF
ON
SYS
TEM
VAC
UUM
ON
EM
PTY
WAS
TE
FILL
OFF
ON
TES
T
FILL
SYS
TEM
PR
ESS
URE
OFF
SYS
TEM
DR
AIN
Radiator
FILL
Overflow
Pump
Water
Green Hose
Hose
Radiator
Black Hose
Wand
EM
PTY
WA
STE
OFF
ON
OFF
SYS
TEM
VA
CUU
M
SYS
TEM
ON
FILL
ON
SYS
TEM
PR
ESS
URE
SYS
TEM
DRA
IN
Block
Engine
Core
Heater

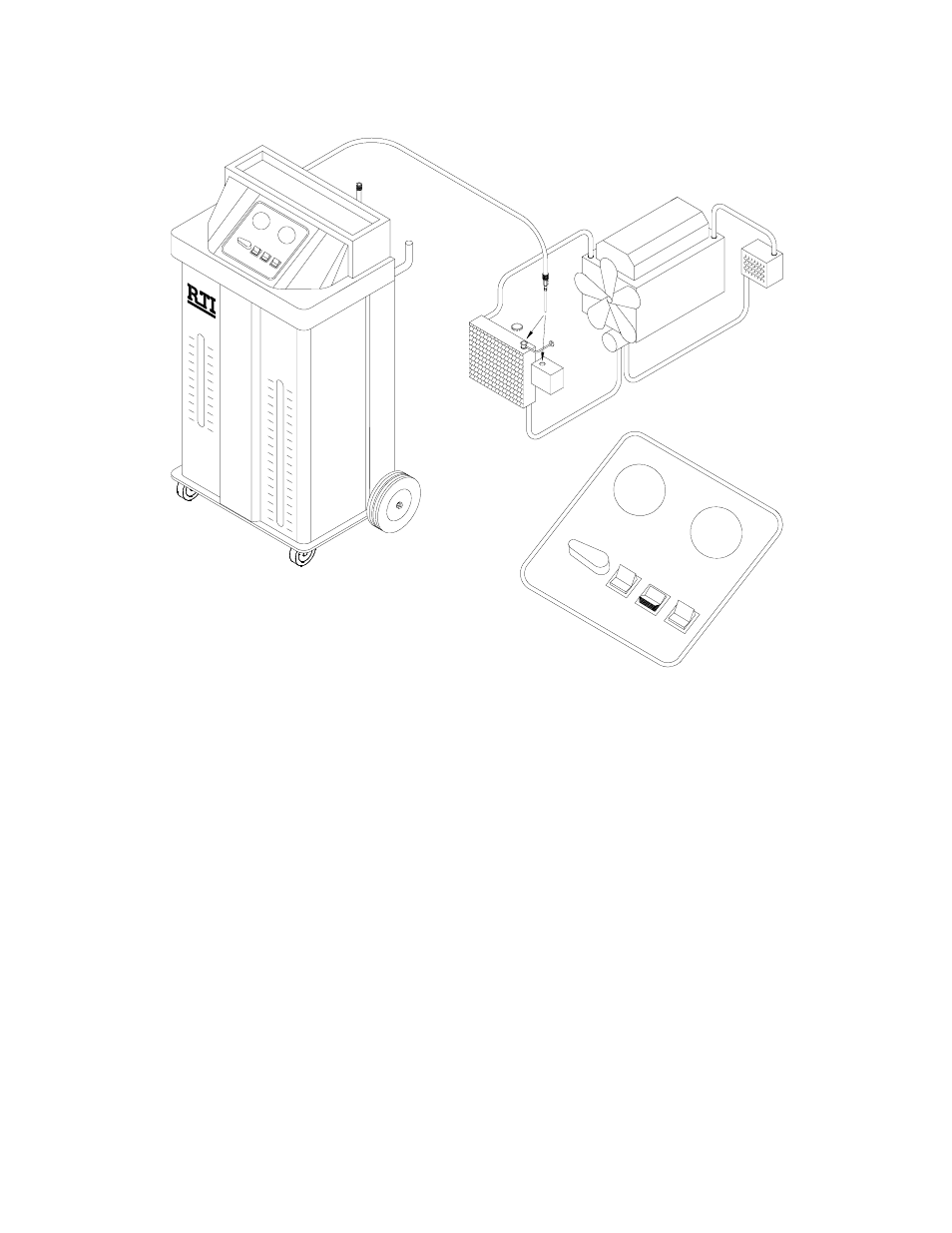

COMPLETING THE JOB
7. Remove the Step Adapters from the radiator hose and the Adapter Hose.
8. Remove the Adapter Hose and reattach the radiator hose.
9. Remove the overflow container cap.
10. Install the Wand on the green hose. Close the valve.
11. Press the top of FILL SYSTEM selector switch to turn on the pump.
12. Open the valve on the Wand to fill the radiator and overflow container to the
recommended levels.
13. Replace the radiator cap and overflow container cap.
14. Press the bottom of the FILL SYSTEM selector switch and disconnect power
cord from the battery and engine ground.
