Completing the job, Page 11, Off on – MAHLE RTI MCX-2 (Rev A) User Manual
Page 12
Page 11
SYS
TEM
OFF
ON
SYS
TEM
VA
CUU
M
ON
EMP
TY
WAS
TE
FILL
OFF
ON
TES
T
FILL
SYS
TEM
PR
ESS
URE
OFF
SYS
TEM
DRA
IN
Green Hose
EM
PTY
WAS
TE
ON
OFF
OFF
OFF
FILL
Overflow
Radiator
Black Hose
Hose
Radiator
Wand
SYS
TEM
ON
FILL
ON
TES
T
SYS
TEM
PR
ESS
URE
SYS
TEM
DRA
IN
Pump
Water
SYS
TEM
VAC
UUM
Block
Engine
Core
Heater

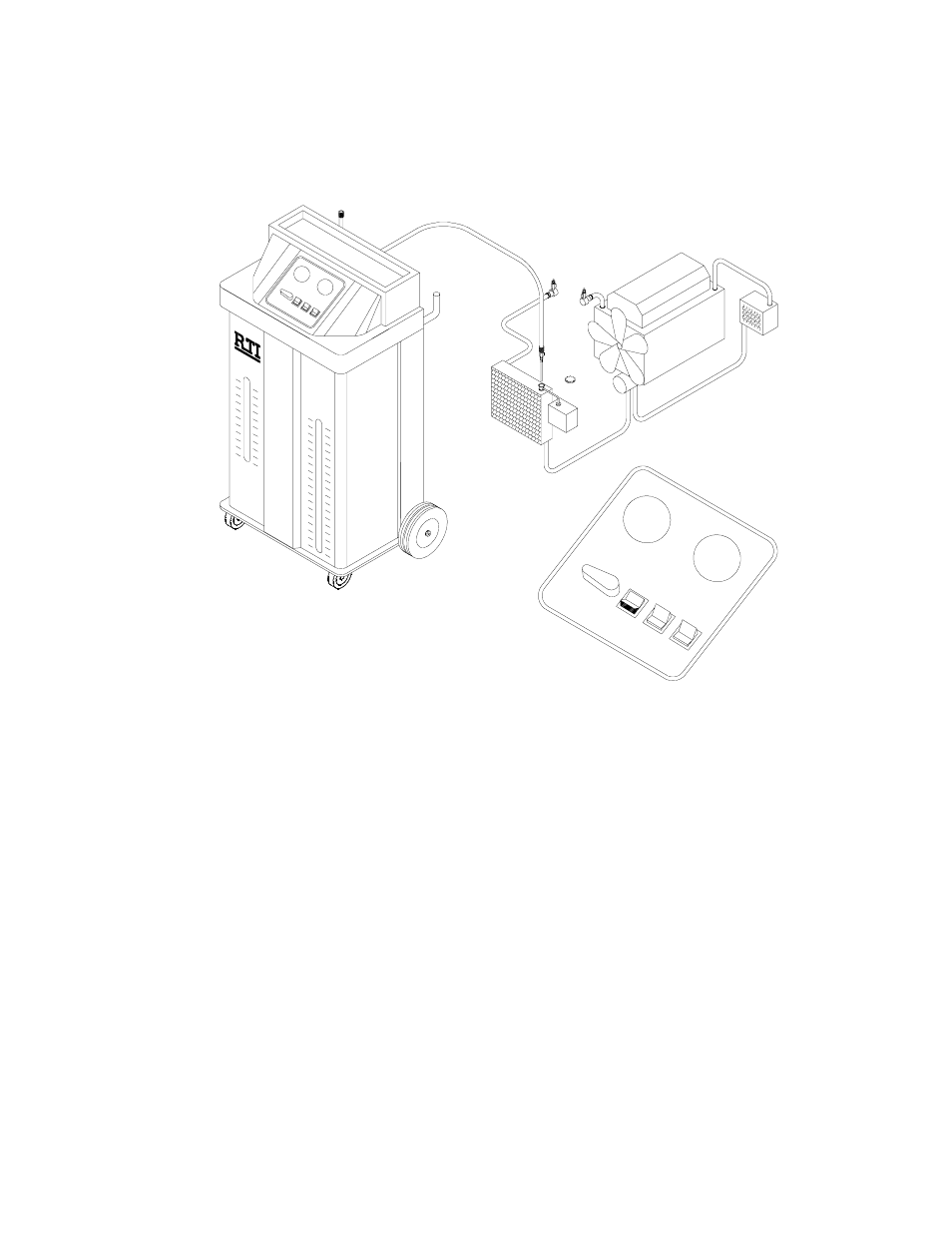

COMPLETING THE JOB
All used coolant in the vehicle cooling system has now been replaced with new
coolant. The following steps will complete the job.
1. Close the valves on the Step Adapters.
2. Disconnect the black and green hoses from the Step Adapters.
3. Install Wand on black hose. Close the valve.
4. Remove the cap from the radiator.
5. Press top of DRAIN SYSTEM selector switch to turn on pump.
6. Use the Wand to lower the level of coolant in the radiator to a level just below
the upper hose where the Step Adapter is attached. Open valve on Wand as
required.
Continued on next page . . .
