GA-K8N51GMF(-RH) Motherboard
- 22 -
English

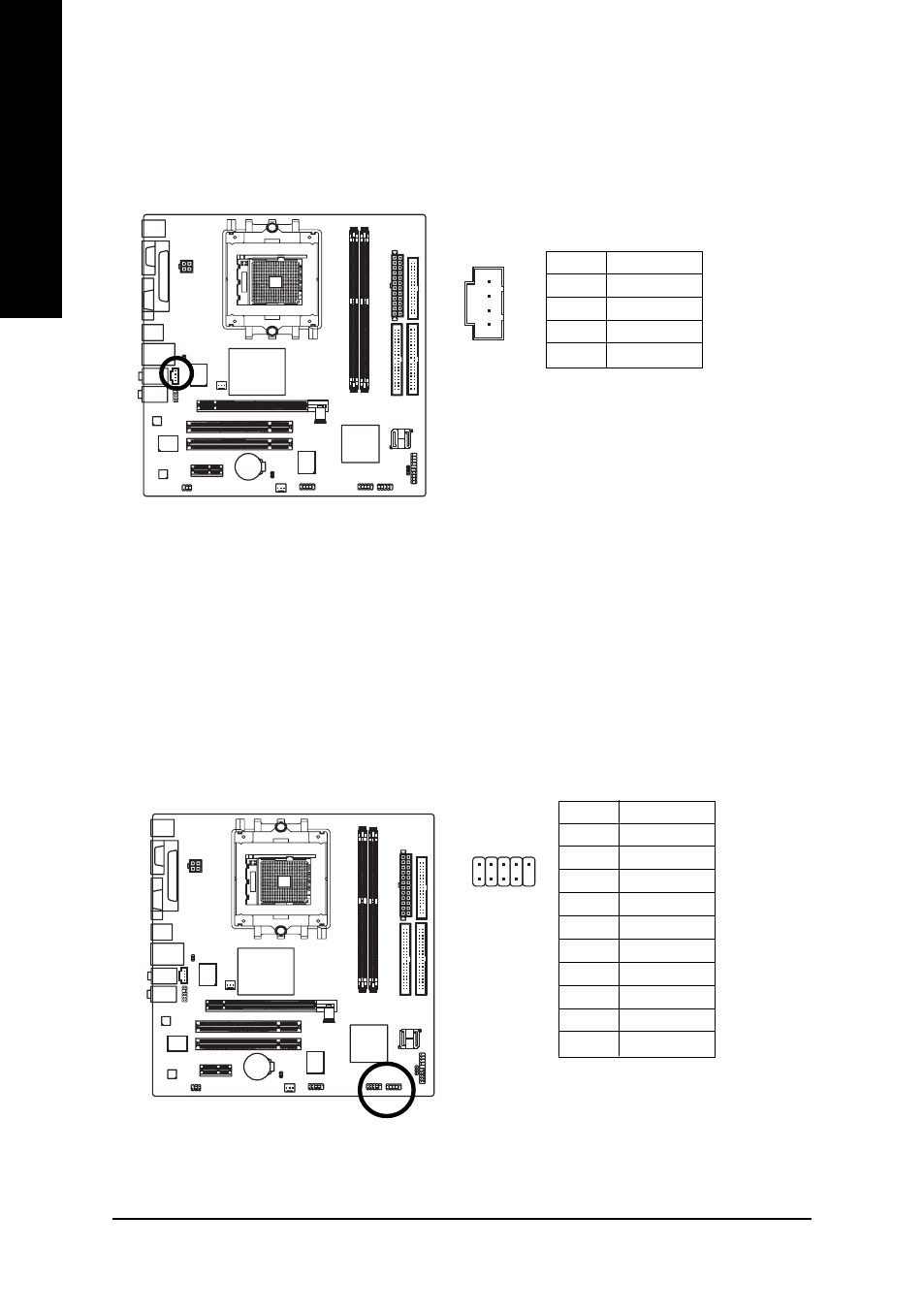

10) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No.
Definition
1
CD-L
2
GND
3
GND
4
CD-R
1
11) F_ USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional front USB cable, please contact your local dealer.
Pin No.
Definition
1
Power (5V)
2
Power (5V)
3
USB DX-
4
USB Dy-
5
USB DX+
6
USB Dy+
7
GND
8
GND
9
No Pin
10
NC
2
10
9
1
