EVAPORATIVE COOLER

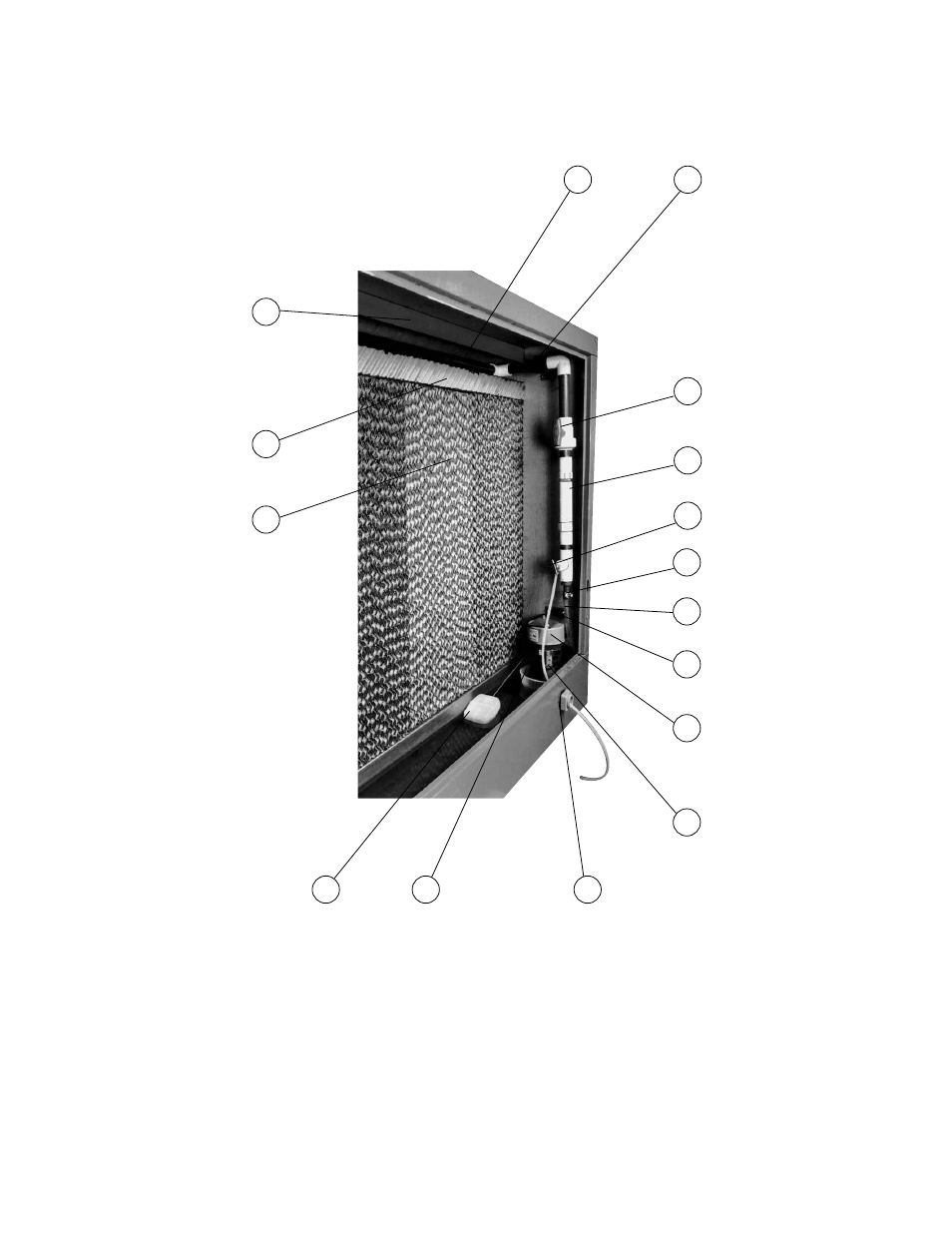

PARTS IDENTIFICATION
16
15
14
3
2
4
5
6
7
8
9
10
11
1
12
9. Pump Support Bracket
10. Pump
11. Poly Tubing - 1/4" O.D.
12. Pump Basket Screen
13. Float Valve
14. Media Pad ( 8" or Opt. 12" W)
15. Media Distribution Pad (2" x 8" x L or 2" x 12" x L)
16. Hood Water Distribution
1. Bulk Head Fitting (Drain Overfl ow)
2. Water Distribution Assembly
3. Clip Assembly (Water Distribution
Assembly)
4. Ball Valve
5. Line Filter
6. Brass Needle Cock Valve
7. Worm Clamp
8. PVC Flexible Hose
