– 3 –
4"
(102)
8" CELdek®
(Optional 12")
2" CELdek®
Overflow
Pump
Ball
Valve
1/4" Water
Inlet
Float Valve
Bleed-off
Water
Distribution
Assembly “A”
Intake
Filter
S
S

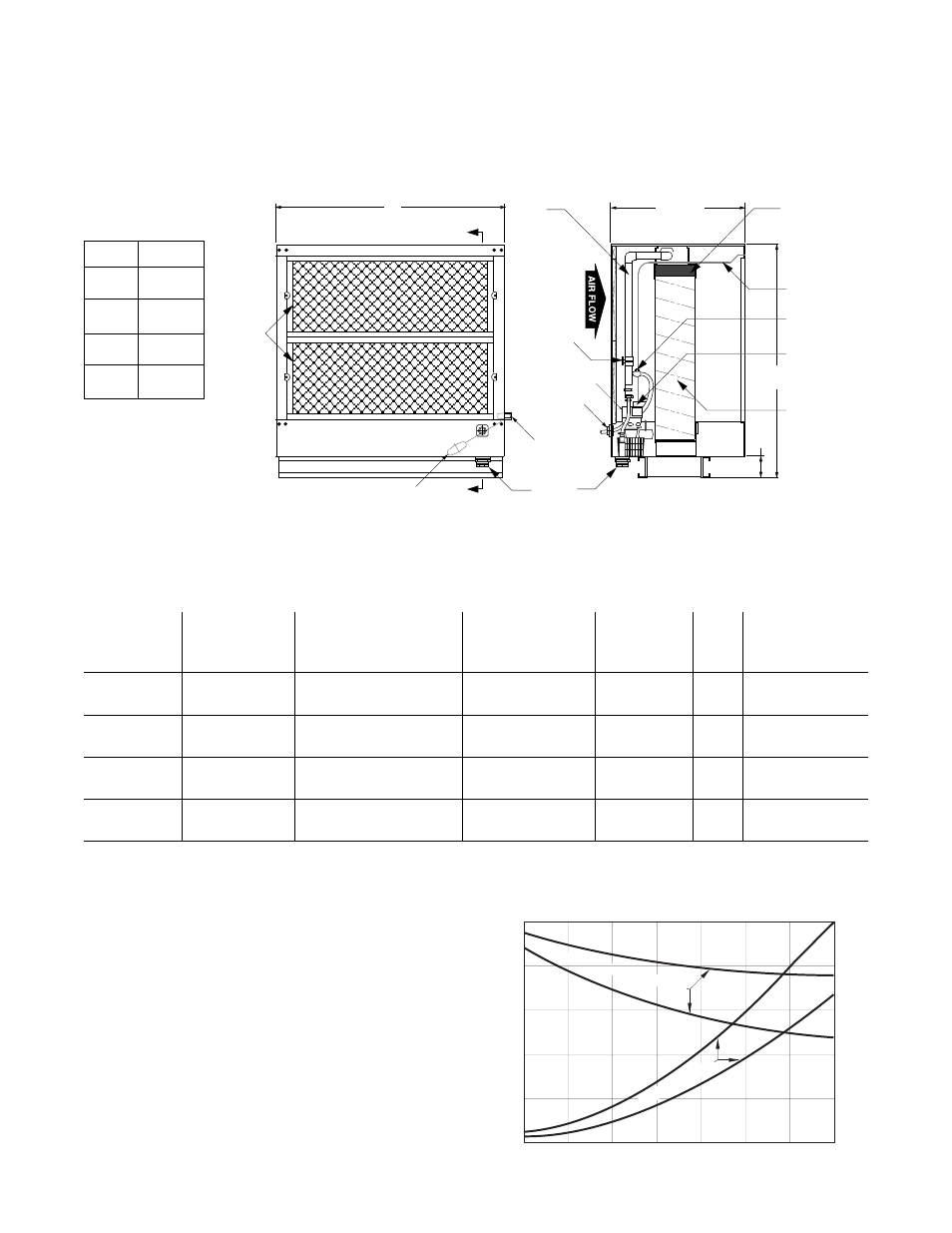

SECTION S-S
3/4" NPT
Drain
(Capped)
Junction Box
Liquid Tight
Electrical
Tubing
43"
(1092)
36"
(914)
PERFORMANCE AND SPECIFICATION DATA
Evaporative Cooling Units
Figure 1
200
0.5 100%
90%
80%
70%
60%
0.4
0.3
0.2
0.1
Air Velocity - FPM
Evaporative Cooling Efficiency Air Pressure Drop Inches - WG
300 400 500 600 700 800
12"
8"
8"
12"
Evaporative Cooling Efficiency
Air Pressure Drop
CELdek® EVAPORATIVE MEDIA
The Evaporative Cooler utilizes high effi ciency
CELdek® media. CELdek® is made from a special
cellulose paper, impregnated with insoluble anti-
rot salts and rigidifying saturants. The cross fl uted
design of the pads induces highly-turbulent mixing
of air and water for optimum heat and moisture
transfer. The evaporative coolers are available
with standard 8 or optional 12 inch media which
produce high effi ciency and high face velocities,
along with a 2" distribution pad to disperse the
water evenly over the pads.
Figure 2
8" Saturation 12" Saturation 8" or 12" Media Pressure Drop “A” Unit Shipping Operating
CFM Effi ciency Effi ciency Face Area Size in W.C. Width Wt. Wt.
(cu. m/s) (cu. m/s) Range Range Ft. 2 in. (kPa) (kPa) in. lb. lb.
*Capacity MIN. MAX. MIN. MAX. MIN. MAX. (m 2 ) (mm) MIN. MAX. (mm) (kg) (kg)
10,15 800 4,500 78 88 89 92 7.01 31 x 32-9/16 0.03 0.23 32-3/4 137 301
(0.378) (2.124) (0.65) (787 x 827) (0.01) (0.06) (832) (62) (136)
20, 25, 50 1,600 5,500 77 88 88 92 9.38 31 x 43-9/16 0.03 0.20 43-3/4 166 386
(0.755) (2.596) (0.87) (787 x 1106) (0.01) (0.05) (1111) (75) (175)
30, 35, 60, 70 2,400 8,500 77 86 88 92 11.75 31 x 54-9/16 0.05 0.30 54-3/4 192 468
(1.133) (4.012) (1.09) (787 x 1386) (0.01) (0.07) (1391) (87) (212))
40, 80 3,200 8,500 77 86 87 92 12.92 31 x 60 0.07 0.28 60-1/4 206 509
(1.510) (4.012) (1.20) (787 x 1524) (0.02) (0.07) (1530) (93) (231)
*Capacities - (50, 60, 70 and 80) are for Dual Furnace Unit Types only.
Performance and Dimensional Data
Table 1 (Refer to individual unit submittals for more specifi cations.)
A
32-7/8"
(835)
43-7/8"
(1114)
54-7/8"
(1394)
60-3/8"
(1534)
Capacity
10/15
20/25/50
30/35
60/70
40/80
