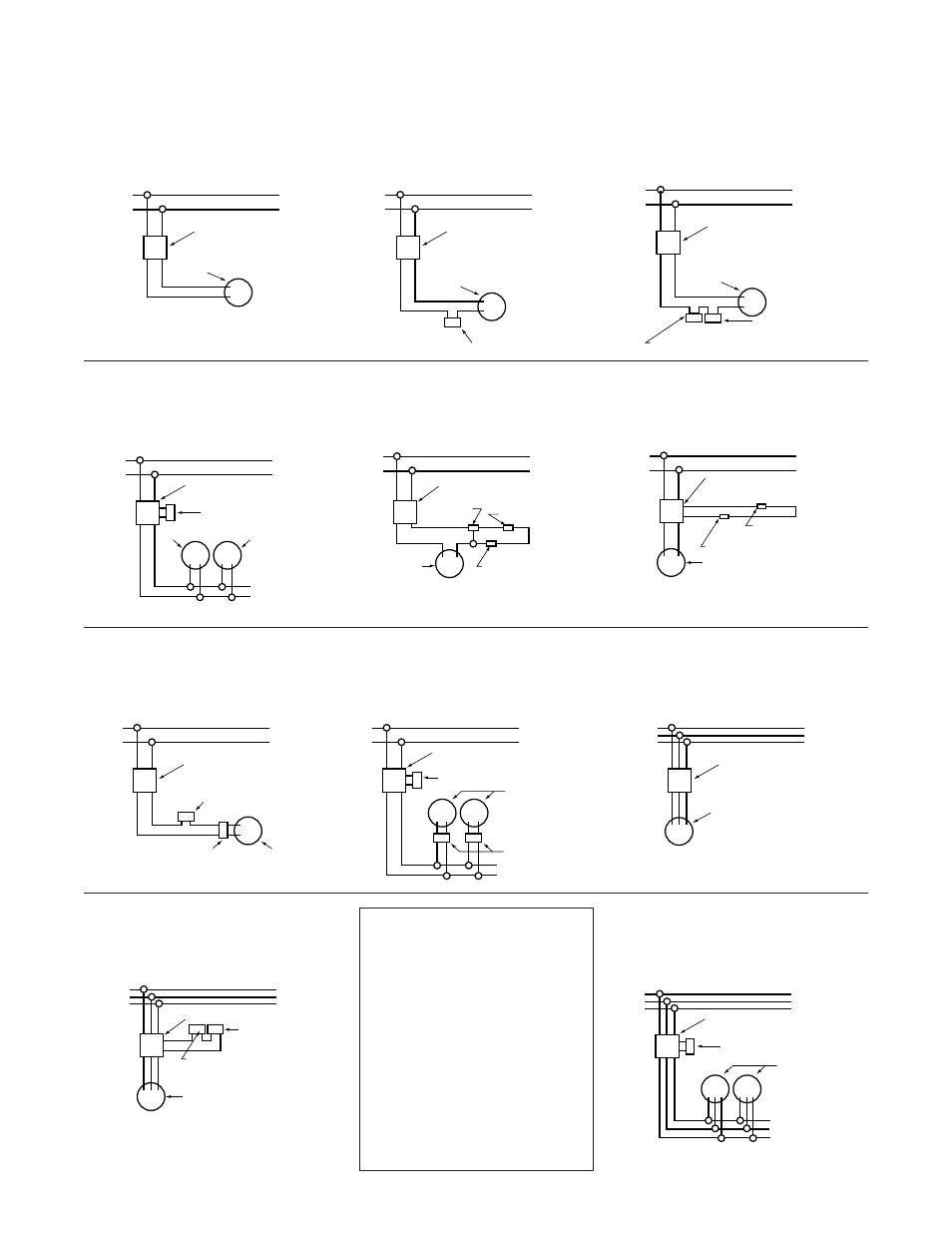

WIRING INSTALLATION
Figure 14 - MANUAL CONTROL WITH
SINGLE PHASE MOTOR Figure 15 - THERMOSTATIC CONTROL
WITH MANUAL STARTER Figure 16 - THERMOSTATIC CONTROL
WITH REVERSE ACTING
CONTROLLER AND MANUAL
STARTER
Figure 17 - THERMOSTATIC CONTROL
USING MAGNETIC STARTER
OPERATING SEVERAL UNITS Figure 18 - THREE POSITION SELECTOR
SWITCH USED FOR EITHER
MANUAL OR THERMOSTATIC
CONTROL Figure 19 - THREE POSITION SELECTOR
SWITCH BUILT INTO MAGNETIC
STARTER FOR MANUAL OR
THERMOSTATIC CONTROL
Figure 20 - SPEED CONTROLLER WITH
MANUAL STARTING SWITCH Figure 21 - SPEED CONTROLLERS
WITH MAGNETIC STARTING
SWITCH FOR OPERATING
SEVERAL UNITS Figure 22 - MANUAL CONTROL WITH
THREE PHASE MOTOR
Figure 23 - THERMOSTATIC CONTROL
WITH LIMIT CONTROLLER
FOR THREE PHASE MOTOR Figure 24 - THERMOSTATIC CONTROL
OF SEVERAL THREE
PHASE UNITS
1 PHASE LINE
MAGNETIC
STARTING SWITCH
THERMOSTAT
MOTORS
SPEED
CONTROLLERS
1 PHASE LINE
MOTOR
MANUAL STARTING
SWITCH
ROOM THERMOSTAT
MOTOR
MANUAL STARTING
SWITCH
1 PHASE LINE
3 PHASE LINE
MAGNETIC
STARTING SWITCH
THERMOSTAT
MOTORS
MOTOR
MANUAL STARTING
SWITCH
3 PHASE LINE
1 PHASE LINE
MOTOR
MAGNETIC
STARTING SWITCH
THERMOSTAT
MOTOR
1 PHASE LINE
MOTOR
MANUAL STARTING
SWITCH
THERMOSTAT
SPEED CONTROLLER
NOTICE
1. When using a speed controller,
always locate the thermostat
between the speed controller and
the line, not between the motor
and the controller.
2. For internal wiring and over-
load protection on all starters,
consult the control manufacturer
for details.
3. When using thermostatic control
with a manual starter, be sure
that the electrical rating of the
thermostat is suffi cient to carry
the motor current.
1 PHASE LINE
MOTOR
MANUAL STARTING
SWITCH
ROOM THERMOSTAT
LIMIT CONTROLLER
REVERSE ACTING
MOTOR
MANUAL STARTING
SWITCH
1 PHASE LINE
LIMIT CONTROLLER
SELECTOR
SWITCH
THERMOSTAT
MOTOR
MANUAL STARTER
WITH BUILT IN
SELECTOR SWITCH
1 PHASE LINE
LIMIT CONTROLLER
THERMOSTAT
MOTOR
MANUAL STARTING
SWITCH
3 PHASE LINE
LIMIT CONTROLLER
REVERSE ACTING
THERMOSTAT
