IM CX2000-S30E
13
4. DAQSTANDARD
Following functions are expanded in standard DAQSTANDARD.
- Message function
- Computation function (measurement and logic computation)
4.1 Viewer
Group number and message number are described as three-digits number.
The first digit from the left and second digit in the center means group number.
The last digit in the right means message number.
(Example) message group number 10, message number 3
Æ 103
4.2 Hardware Setting(Config)
4.2.1 Message Setting
Make the basic settings of message setting.
Click the [Seting] tab then select the [Message file] settings from the list that
appears on the left of the screen. Or, you can select the items by choosing [Control Settings] -
[Setting Mode]-[Message filet].

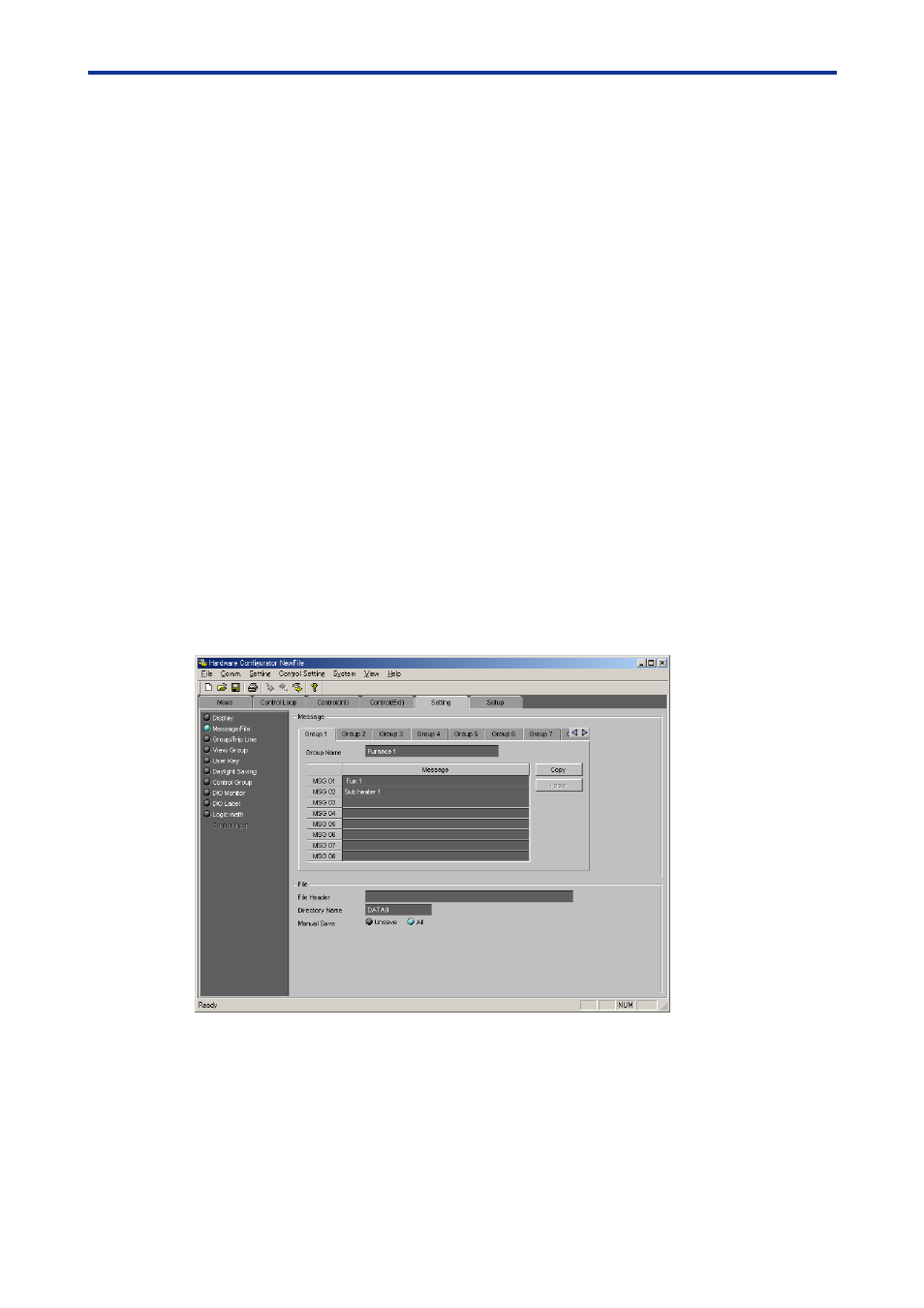

Figure 4.2.1 Message setting
a) Message group: 1-30 group
b) Group name: Up to 16 characters can be used
c) Message: Up to 8 messages can be set for a group (up to 16 characters usable)
