8. Technical specifications
8.1 Standards
Pressure equipment directive
8.2 Material properties RF20H (Extract 810 and 820)
Wetted components
Holder
metal plastic seals
RF20H 1.4404/316L Alloy C22, 2.4602 PVDF PEEK EPDM / FPM / FFKM
Drive unit)
cylinder cylinder extension seals
RF20H 1.4404/316 PA66 GF30 EPDM
8.3 Cleaning ports
Thread
without gland
G 1 /
8
" (internal)
G¼" (internal)
thread with gland NPT ¼" (internal)
Cleaning pressure
1 - 4 bar

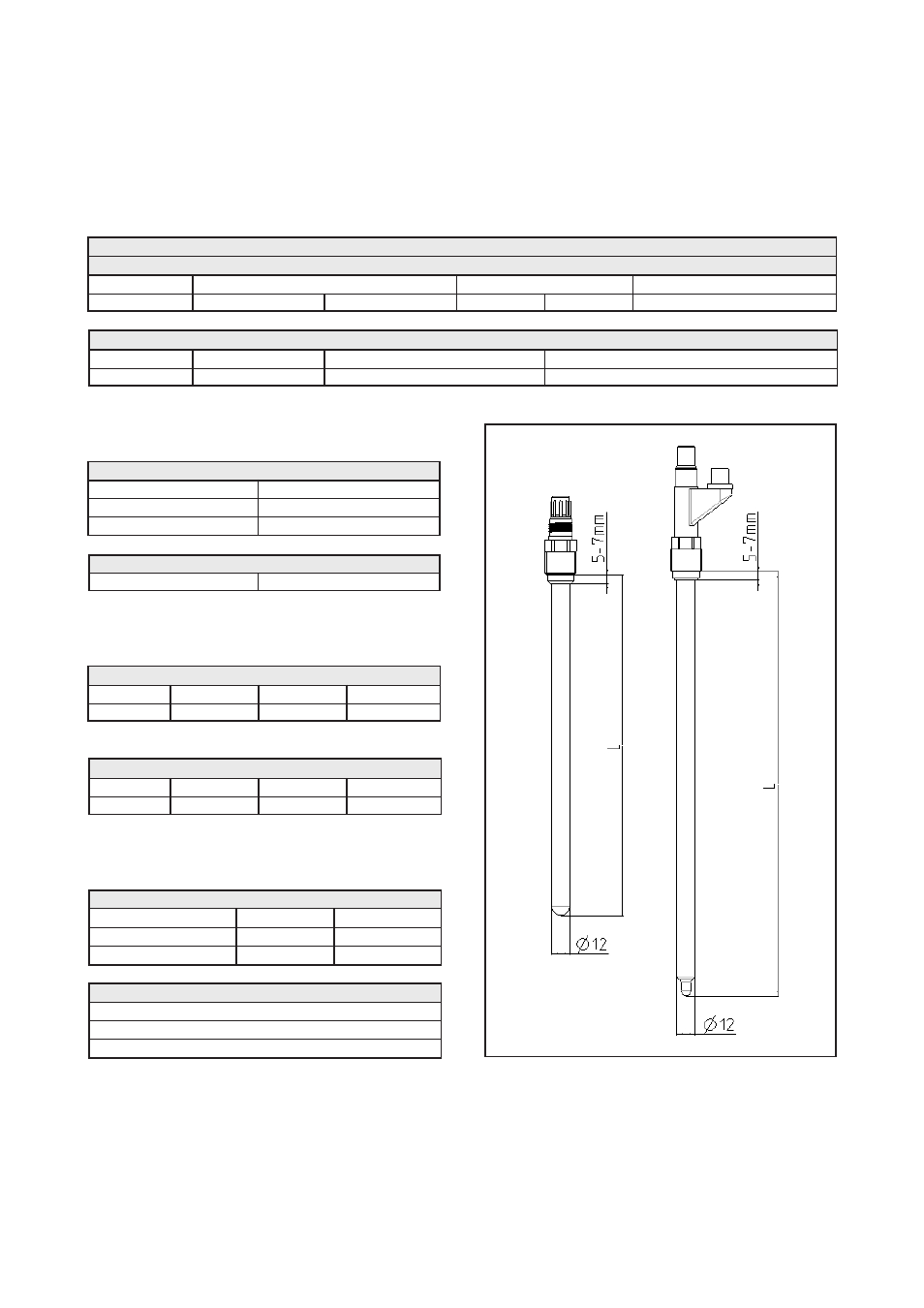

8.4 Sensors RF20H (Extract 810 and 820)
Gel filled sensor
l [mm] d [mm] PG
RF20H 225 12 13.5
Sensor filled with liquid with refill connection
l [mm] d [mm] PG
RF20H 280 12 13.5
8.5 Pneumatic equipment
Pneumatic tubes
ø - external ø - internal
for control air 6 mm 4 mm
for position reply 4 mm 2 mm
Compressed air
• Filtered 40µm, water- and oil free
• 4 - 6 bar
• no continuous air consumption!
