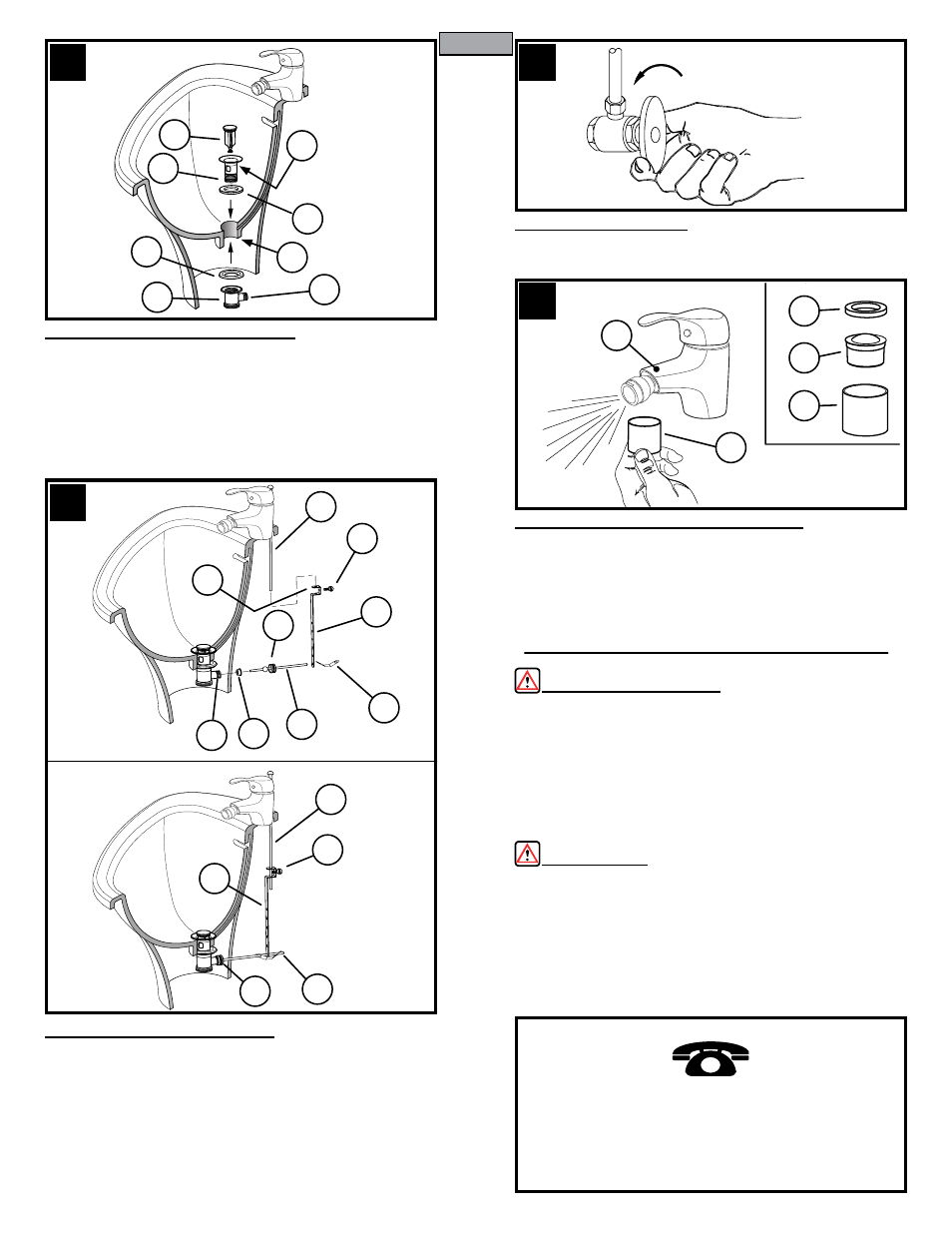

8 DRAIN POP-UP INSTALLATION
Remove Stoper (8A) and apply Plumbers Patty to underside of Flange
(8D) and to all treads. Insert Drain Body (8B) and Washer (8C) through
Bidet Hole (8E). From underneith the bidet, place Washer (8F) on
the bottom of the Bidet Hole (8E) and thread the Lower Body (8G)
securely into the Drain Body (8B). Do not over tighten and make sure
that the Ball Rod Opening (8H) is facing the back of the bidet. Insert
Stoper (8A) though the Drain Body opening.
9 POP-UP ROD ADJUSTMENT
Insert the Ball Rod (9A) and Ball Washer (9B) into the Ball Rod Opening
(9C). Place the Clamp Nut (9D) in the Ball Rod (9A) and tighten securely
to the Ball Rod Opening (9C). With Lift Rod (9E) in position on the faucet,
insert Lift Rod Strap (9F) and retain it with Thumb Screw (9G). Insert
one hole from the Spring Clip (9H) into the Ball Rod (9A). Guide the
Ball Rod (9A) one of the holes in the Lift Strap (9J) and secure it with
the second hole in the Spring Clip (9H). Adjust the height of the Lift Rod
(9E) by loosening up the Thunb Screw (9G) and reseting it tightly.
CAUTION: Maintenance
DISASSEMBLY
♦Replacement parts may be available at the store where you
purchased your faucet.
♦Please contact your local distributor for replacement parts if
needed.
♦Always turn off water and relieve pressure before working
on your faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative finishes, use only a soft cloth dampened
with plain water to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of other
than a soft damp cloth will nullify our warranty!
Special Trim: Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial use.
Installation of Said Trim is at Users Risk!
9
11
11 FLUSHING & AERATOR CLEANING
After installation is complete, remove Aerator (11A) from Spout (11B).
Turn water supply valves on and turn faucet on. Allow both hot and cold
water to run at least one minute each until all foreign matter has cleared
the line.. While water is running, check for leaks. To clean aerator lift
out Insert (11C) and screen (11D) from aerator Basket (11E). Rinse
parts and replace.
8
Any questions or concerns on Price
Pfister products, contact your local Price
Pfister distributor or point of contact.
10 FAUCET START UP
Turn on hot and cold water supplies, and check for leaks above and
below the sink
10
