Thank you for purchasing this Price Pfister product. All Price

Pfister products are carefully engineered, and factory tested

to provide long trouble-free use under normal conditions.

This product is easy to install using basic tools and our easy

to follow illustrated instructions. If you have any questions

regarding this product, see info on previous page.
1 BEFORE PROCEEDING

WARNING: Read all the instructions completely before

proceeding. Price Pfister recommends calling a professional

if you are uncertain about installing this product!
This product should be installed in accordance with all local

and state plumbing and building codes.
2 SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply

valves. These are usually found under the sink or near

the water meter. If you are replacing an existing Faucet,

remove the old Faucet from the sink and clean the sink

surface thoroughly.
3 ASSEMBLY INSTRUCTIONS

If operating pressures exceed 5 BAR (75 PSI), the use of

a pressure reducer is recommended. Before proceeding

with the assembling, we advise to clean the hot and cold

water tubes, in order to avoid build-up of dirt that could

compromise the functioning of the Faucet.

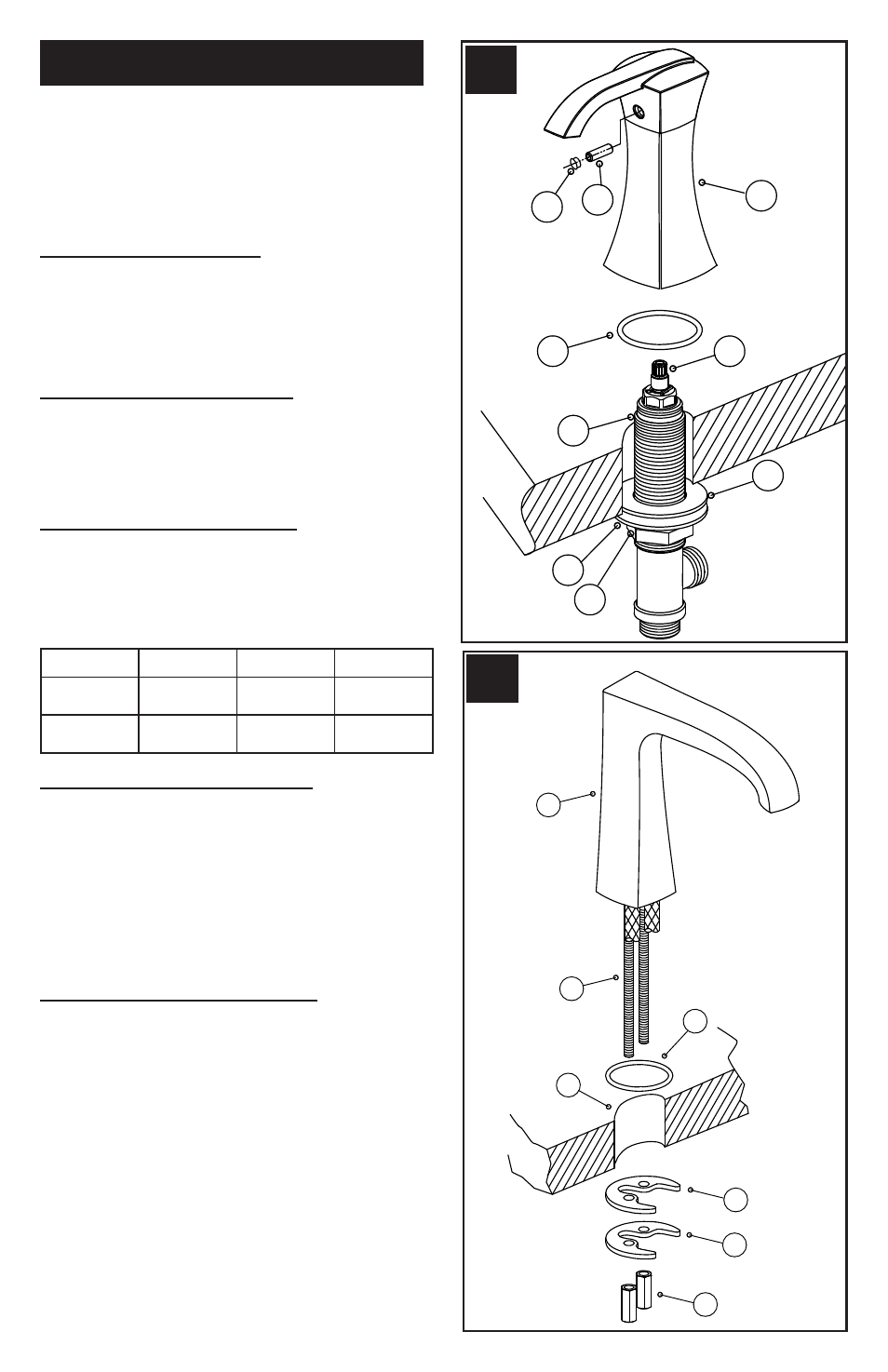

4 VALVE INSTALLATION (Fig.A)

Place Rubber Washer (1), Metal Washer (2) and Mounting

Nut (3) onto Valve Body (4). From underneath the sink,

insert Valve Body (4) through Mounting Holes. From above,

place Seal Base (6) on top of Valve Body (4). Attach Handle

Hubs (7) onto Valve Stems (8) and tighten Set Screws (9)

with a Hex Wrench. Make sure that Valves are in the

“Closed” position. Attach Decorative Button (10). Tighten

mounting nut (3), so that the bottom of Handle Hubs (7) sit

flush with sink surface. To remove handle, reverse steps.
5 SPOUT INSTALLATION (Fig.B)

Place Seal Base (1) against the bottom of Spout Body (2).

With Spout Body (2) facing forward, carefully insert Shanks

(3) through the center hole of sink (4). From underneath

sink, secure Spout Body (2) by placing Rubber Washer (5)

and Metal Washer (6) and threading Mounting Nuts (7) onto

Shanks (3). Caution: Do not over tighten!

Supply

Suggested

Maximum

Minimum

Hot Water

Temperature

65 Cº (150ºF)

80 Cº (175ºF)

15 Cº (60ºF)

Operating

Pressure

3 BAR (44PSI)

5 BAR (73PSI)

0.5 BAR (7PSI)
