surface is not uniform, thick, flat, stiff, or smooth enough, then a sealant
such as silicone may be required.
NOTE: Clean and deburr the panel cutout before the OIT is installed.
Warning: The OIT requires a stiff, flat, smooth mounting
surface free of blemishes to seal properly to NEMA 4. All
supplied mounting clamps must be used and the panel cannot
flex more than 0.010”.
Mount the OIT to the Panel

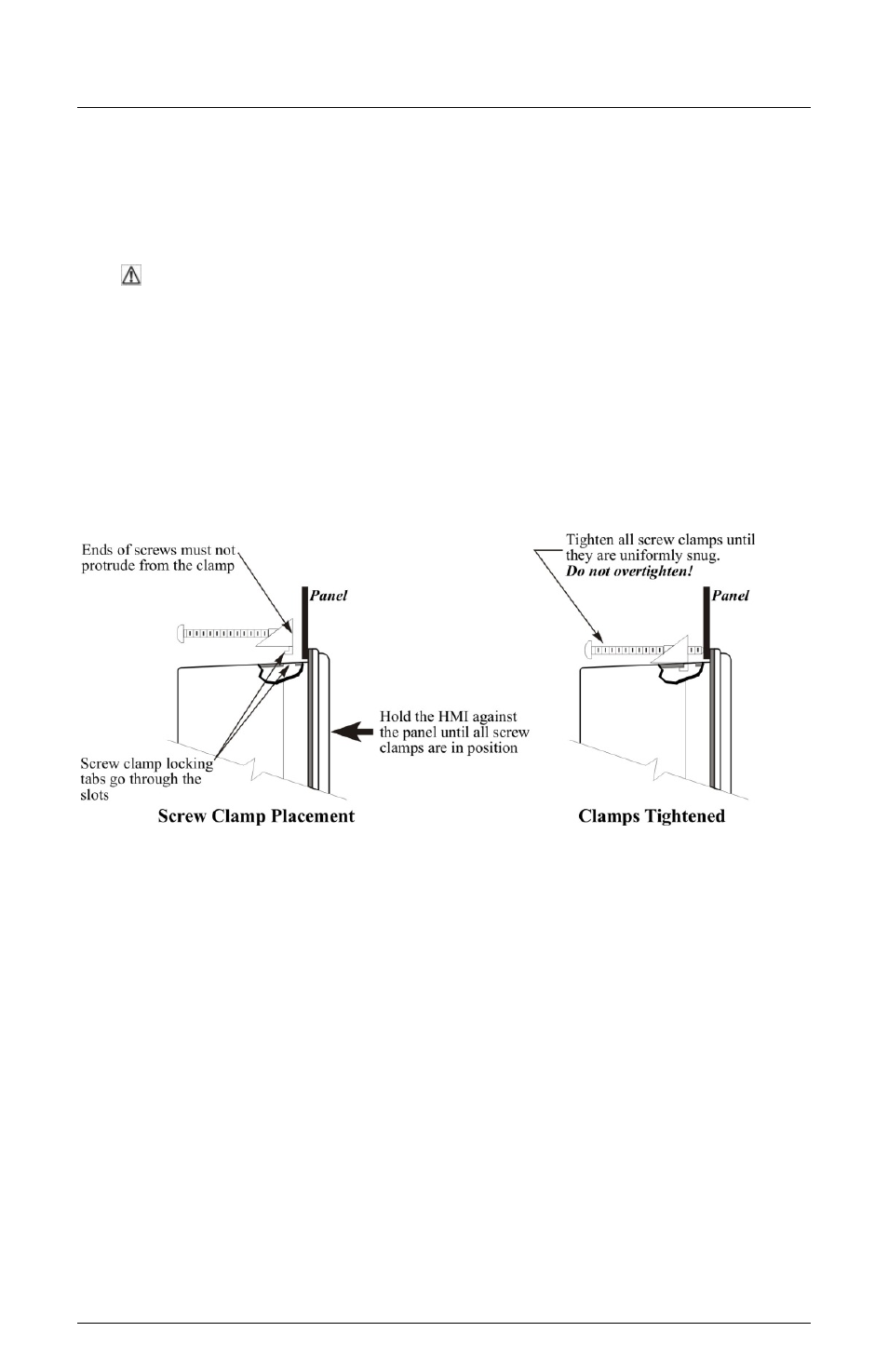

Figure 5: Installing Screw Clamps to the OIT
Note: The clamps for your model may be slightly different than shown
here, but essentially work in the same way.
STEPS:
1. Prepare the clamps for the OIT by inserting the screws into the
clamp as shown above. Position the screws so that the ends don’t
protrude through the clamp’s hole.
