WATLOW DIN-A-MITE Style D User’s Manual

After removing all power, use a 7/16-inch nut driver to remove
fuse mounting nuts. Torque to 4.52 Nm (40 in-lb).

WARNINGS:

1 WARNING: Use National Electric (NEC) or other

country-specific standard wiring practices to install
and operate the DIN-A-MITE. Failure to do so may
result in damage to equipment and property,
and/or injury or loss of life.

2 WARNING: Wiring examples show L2 in phase-to-

phase, 200VÅ (ac) and above configuration. In
phase-to-neutral, 100VÅ (ac) and above
applications, L2 is neutral and must not be fused
or switched. Failure to follow this guideline could
result in personal injury or death.

3 WARNING: Only authorized and qualified personnel

should be allowed to install and perform
preventive and corrective maintenance on this
unit. Failure to do so could result in damage to
equipment, and personal injury or death.

4 WARNING: Do not use the DIN-A-MITE Vac-input

models with a temperature controller that includes
an RC snubber circuit across its output. Remove
the RC snubber circuit before placing the DIN-A-
MITE into service.

5 WARNING: Hot surface, do not touch the heat sink.

Failure to follow this guideline could result in
personal injury.

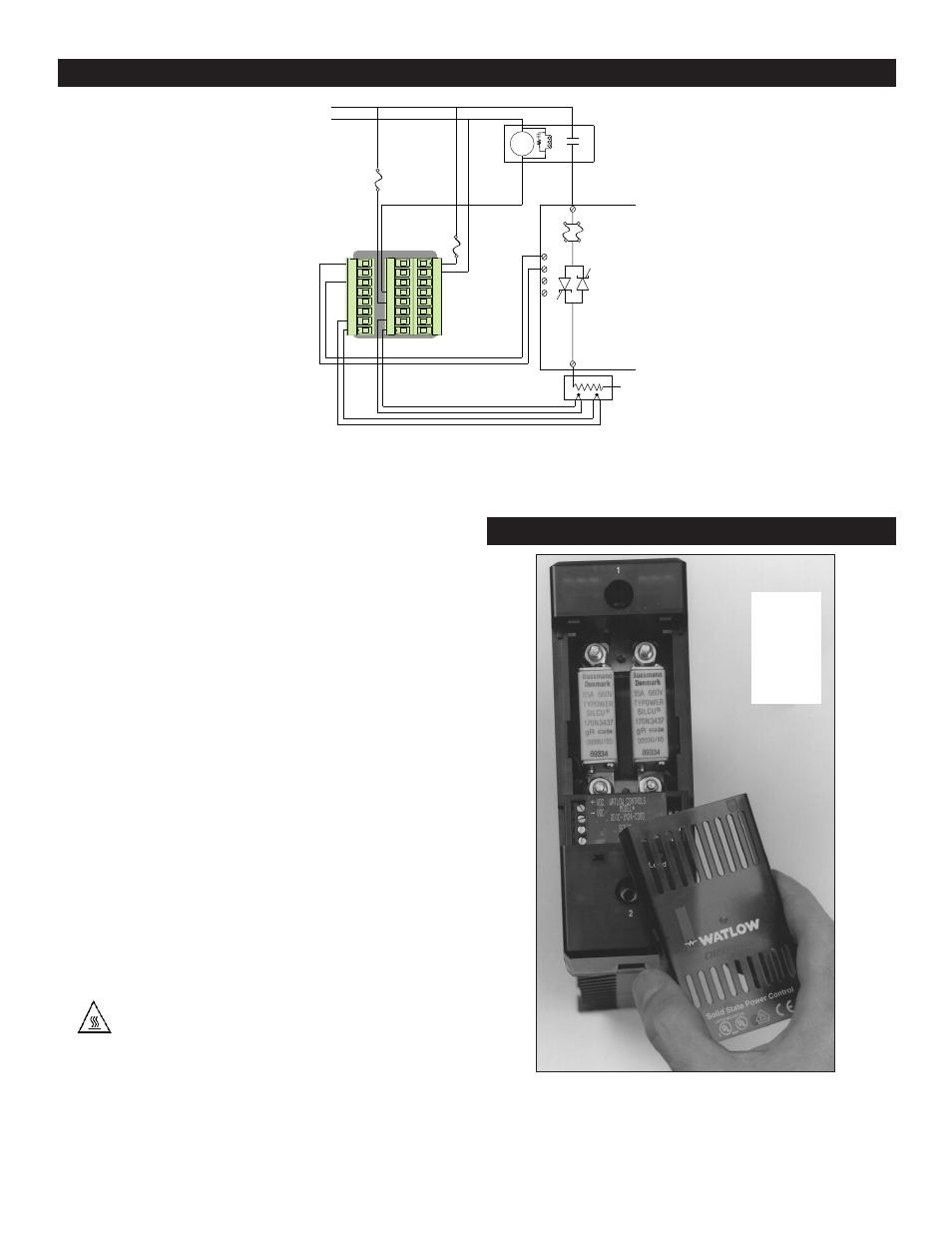

System Wiring Example

Fuse Replacement

PM6C2FA - ALAJAAA

98
99
CC
CA
CB
B5
D6
D5

F1
G1
H1

T1
S1
R1

L4
K4
T2
S2
R2

Coil

utral

DD10-24F0-0000

Heater

Internal

Semiconductor

Fuses
