11
*1
If the Conductor
’
s end (individual)
wires are not twisted correctly, the
end wires may either short
against each other, or against an
electrode.

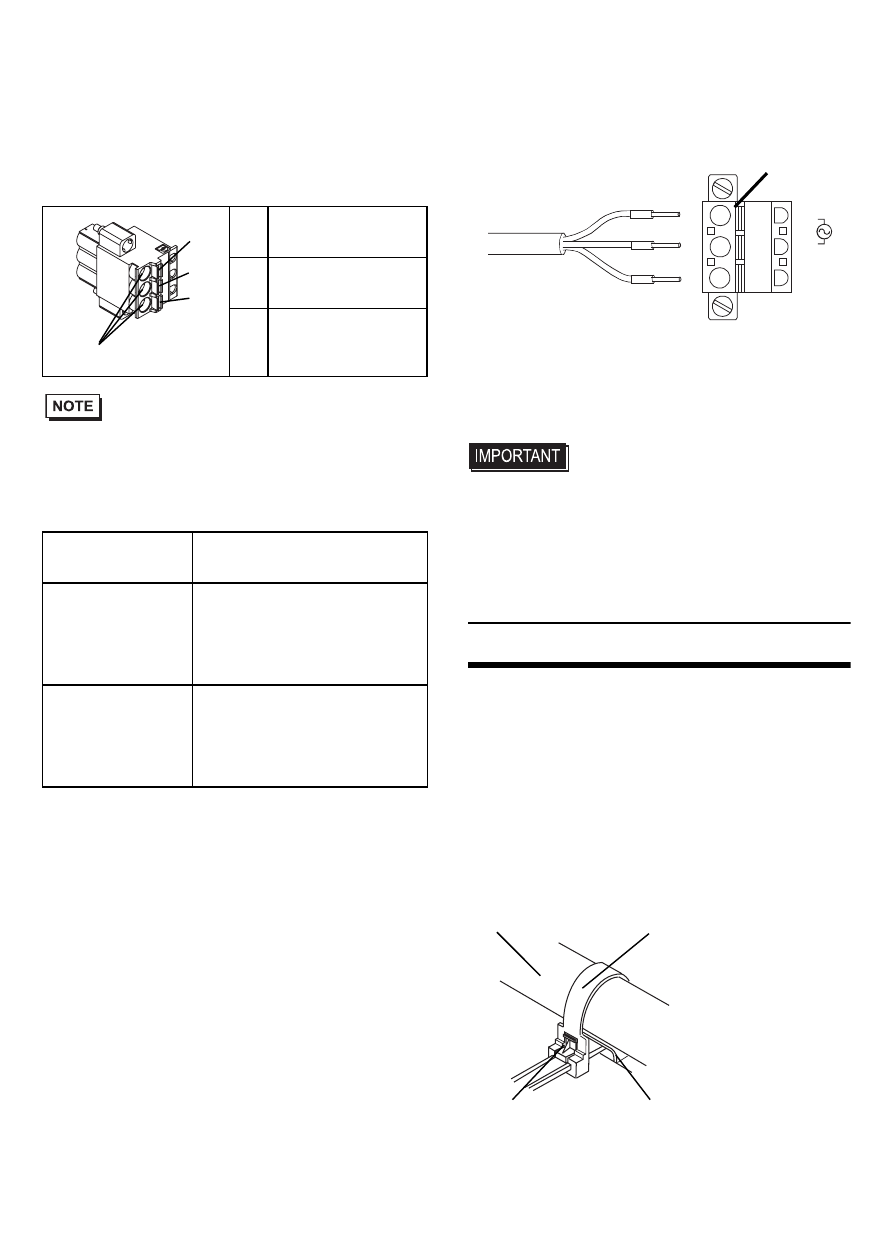

Power connector specification
• Kind of power cord is FKC 2,5/3-STF-5,08
which are Phoenix Contact products.
Use the following wiring for FP. Those are
Phoenix Contact products.
Connecting the Power Cord
When connecting the AC type power cord,
be sure to follow the procedures given
below.
(1) Confirm that the power cord is
unplugged from the power supply.
(2) Push the Opening button by a small and
flat screw driver to open the desired pin
hole.
(3) Insert each pin terminal into its each
hole. Release the Opening button to
clamp the pin place.
(4) After inserting all three pins, insert the
Power Plug into the Power Connector at
FP. Fix the plug with two(2) minus
screws.
• The torque required to tighten these
screws is 0.5 to 0.6N
•m.
• To prevent the possibility of a terminal
short, use a pin terminal that has an
insulating sleeve.
Using the USB Cable Clamp
USB Cable Clamp Attachment Pro-
cedure
Installation to USB cable
(1) Connect the USB cable to the connector.
(2) Insert the cable clamp into the cable
clamp holder as shown in the following
figure, and tighten the clamp until the
cable is secured in place.
L
AC Input Terminal-
live line
N
AC Input Terminal-
neutral line
FG
Ground Terminal
connected to the
FP chassis
Recommended
Drivers
SZS 0.6X3.5 (1205053)
Recommended
stick end
terminal
AI 0.75-10GY(3201288)
AI 1-10RD(3200182)
AI 1.5-10BK(3200195)
AI 2.5-12BU(3200962)
Crimp tool for
recommended
stick end
terminal
CRIMPFOX ZA 3
(1201882)
FG
N
L
Power
Cable
Joint
AC power supply cord
Opening Button
L
N
FG
USB cable clamp
USB Cable
Stopper
USB cable clamp holder
