SAE Size 500 Manifold Stations
Each manifold station is supplied with all necessary
seals and hardware for assembly. End plates are
not required with these manifolds. Each station has
all ports threaded to accept piping.
Blanking Plate: For manifold stations not occupied
by a valve, blanking plates are available. These plates
block the unused air passages.
Order by part number 822K77.
Station
Port Sizes*
Number A, B P, EA, EB
585K91 1/2 3/4
586K91 3/4 1
587K91 1 1
*NPT threads. For SAE threads, consult ROSS.

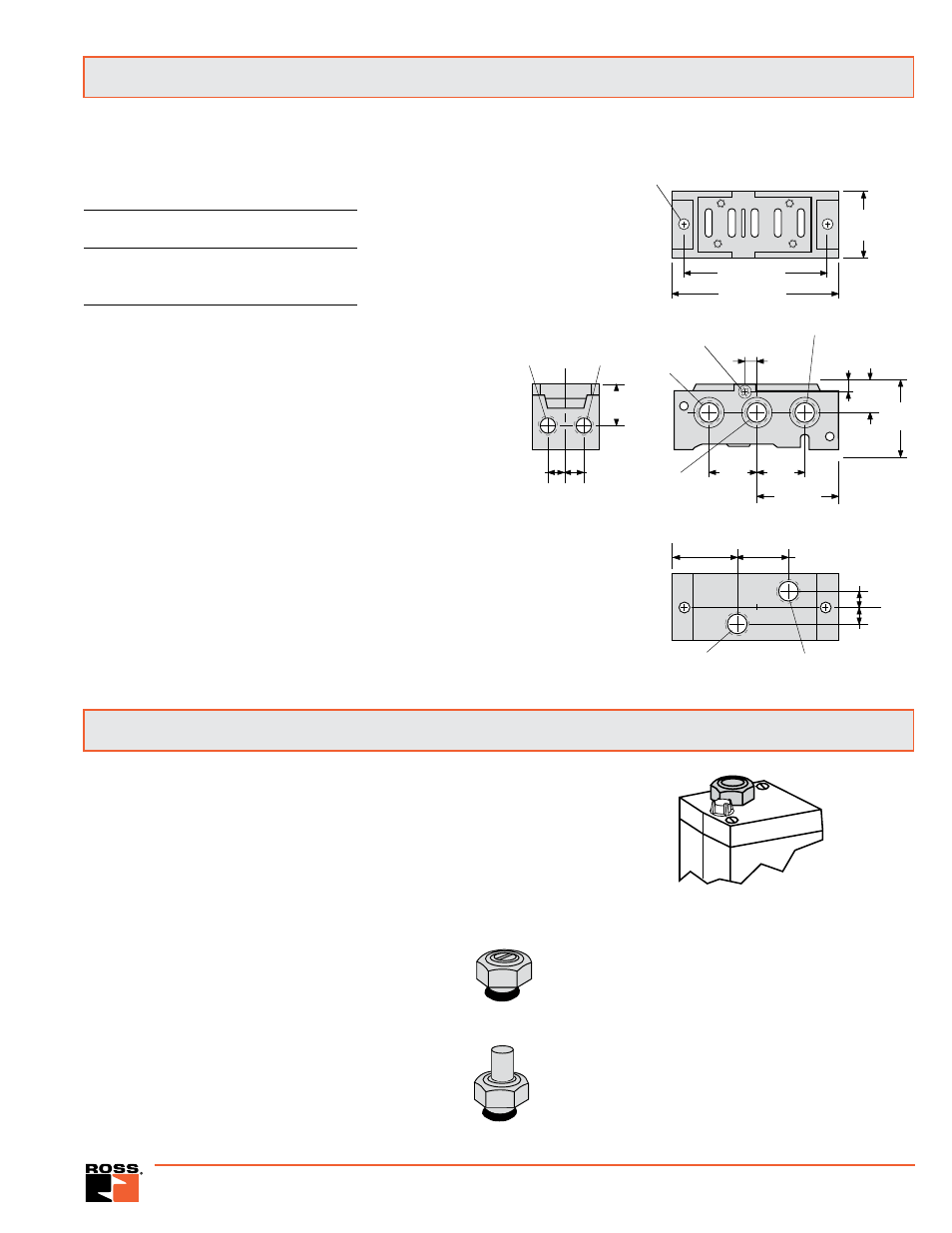

Manifolds for Series 80 & 84 SAE Valves
2.38
(61)
4.57
(116)
CL
CL
3.78
(96)
8.44 (214)
9.25 (235)
0.40 (10) dia.
(2 places)
Port A
(outlet)
Port B
(outlet)
1.00
(25)
1.00
(25)
2.85
(72)
2.85
(72)
1.50
(38)
0.50
(13)
0.62
(16)
Port EA
(exhaust)
1/8 External pilot
supply port X
(both sides)
Port EB
(exhaust)
3.44
(87)
2.85
(72)
0.90
(23)
0.90
(23) Port A
(outlet)
Port B
(outlet)
Port P
(inlet)
3.56
(90)
Dimensions: inches (mm)
Flush metal buttons (shown at left as installed) are of either the locking or
non-locking type. The extended button (see below) is the non-locking type.
Order by the kit numbers below:
Flush Button
Non-locking 790K87
Locking 792K87
Extended Button
Non-locking 791K87
Accessories
Manual Override Kits for SAE Size 500 Valve
