Series 84 Poppet Valves
STANDARD SPECIFICATIONS: For valves on this page.
Solenoids: AC or DC power. Rated for continuous duty.
Standard Voltages:
SAE Size 125, 250 models: 100-110 volts, 50 Hz; 100-120 volts, 60
Hz; 24 volts DC; 110 volts DC. For other voltages, consult ROSS.
SAE Size 500 models: 100-110 volts, 50 Hz; 100-120 volts, 60
Hz; 24 volts DC; 110 volts DC. For other voltages, consult ROSS.
Power Consumption: Each solenoid:
SAE Size 125, 250 models: 8 VA inrush; 6 VA holding on 50/60
Hz; 8 watts on DC.
SAE Size 500 models: 87 VA inrush; 30 VA holding on 50/60 Hz;
14 watts on DC. Indicator Light: One for each solenoid.
Ambient Temperature: 40° to 120°F (4° to 50°C).
Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered air; 5 micron recommended.
Inlet Pressure: 30 to 150 psig (10 bar).
Pilot Pressure: Must be equal to or greater than inlet pressure.
Options: Pressure Controlled Valves–Interposed Pressure
Regulators.
A B
EA P EB
SOL
B Single Solenoid
A B
EA
P
EB
SOL
B
SOL
A Double Solenoid
C
A B
C
A
B
C
A
B
IMPORTANT NOTE:
The C
V
values given in this publication should not be used in
comparing ROSS valves with those of other makers. These
C
V
values are intended only for use with performance charts
published by ROSS. The C
V
ratings listed in this bulletin are
averages for the various flow paths through the valve and are
for steady flow conditions.

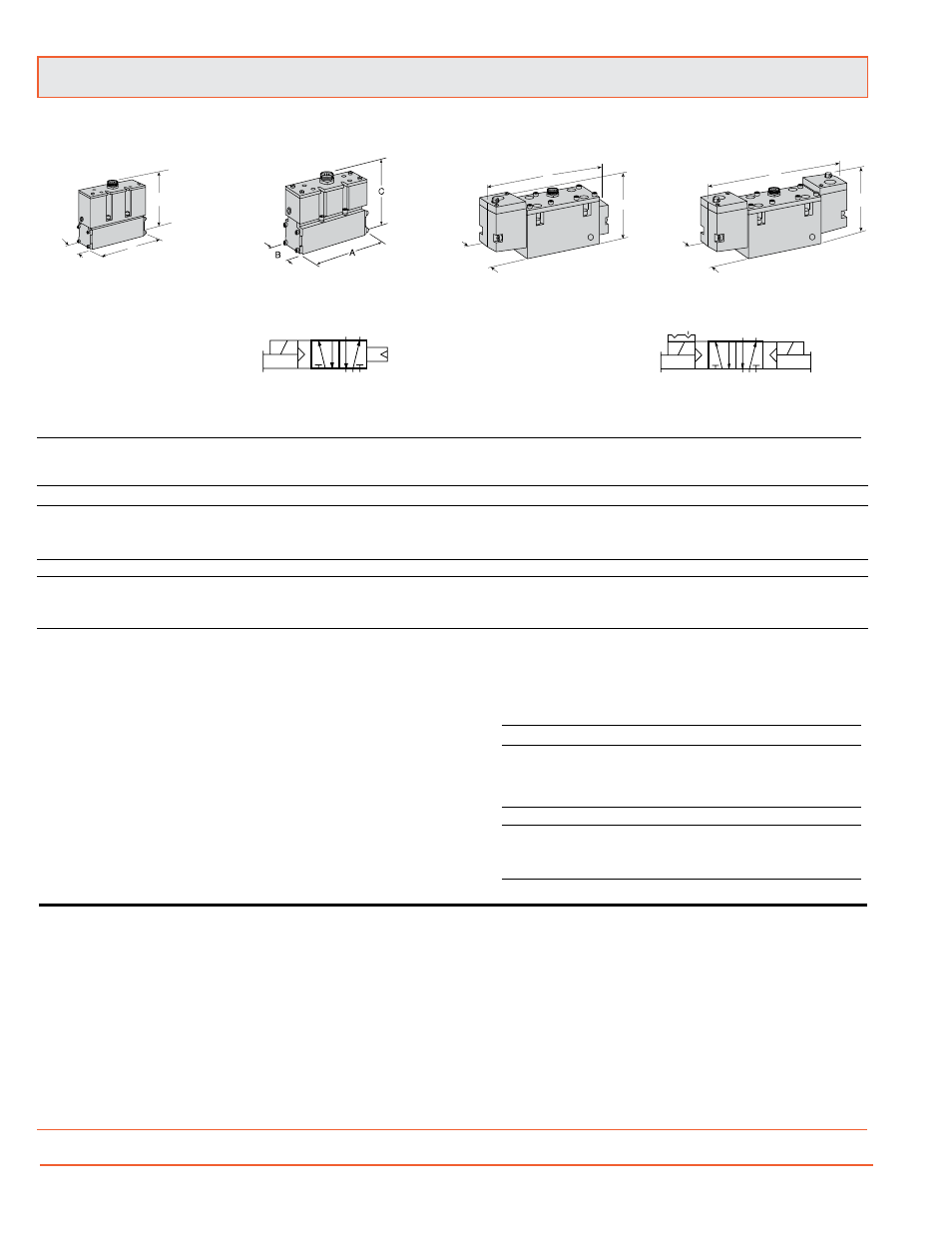

SAE Size 500
Double Solenoid
SAE Size 125
Single or Double Solenoid
SAE Size 250
Single or Double Solenoid
SAE Size 500
Single Solenoid
Series 84 Poppet Valves for SAE Bases
SAE
Dimensions inches (mm) Weight
Size A B C lb (kg)
Single Solenoid Pilot Valves
125 5.5 (140) 1.8 (45) 5.1 (129) 2.8 (1.3)
250 7.3 (185) 2.6 (65) 5.6 (142) 5.2 (2.4)
500 10.1 (257) 3.0 (76) 4.8 (121) 7.7 (3.5)
Double Solenoid Pilot Valves
125
5.5 (140) 1.8 (45) 5.1 (129) 3.3 (1.5)
250 7.3 (185) 2.6 (65) 5.6 (142) 5.7 (2.6)
500 11.2 (285) 3.0 (76) 7.1 (180) 8.9 (4.1)
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
Valve Model Numbers (Base not included)
SAE Chrysler Wired 5-pin Chrysler Wired 5-pin Ford Wired 5-pin Chrysler Wired 5-pin Ford Wired 4-pin Avg.
Size micro-connector micro-connector mini-connector mini-connector Hardwire micro-connector C
V
(120 volts / 60 Hz) (24 Volts DC) (all voltages) (all voltages) (24 Volts DC)
Single Solenoid Pilot Valves
125 8476C3311 8476C3321 8476C3331 8476C3341 8476C3351 8076C3361 1.8
250 8476C4311 8476C4321 8476C4331 8476C4341 8476C4351 8076C4361 5.5
500 8476B6311 8476B6321 8476B6331 8476B6341 8476B6351 8076B4361 7.9
Double Solenoid Pilot Valve
125 8476C3312 8476C3322 8476C3332 8476C3342 8476C3352 8476C3362 1.8
250 8476C4312 8476C4322 8476C4332 8476C4342 8476C4352 8476C4362 5.7
500 8476B6312 8476B6322 8476B6332 8476B6342 8476B6352 8476B6362 7.6
*Bases and manifolds on pages 7-9.
