Series TW5000 Welding Hose Reels
www.reelcraft.com Page 3
31
37
36
34
33
32
11
1
2
3
4
6
5
8
7
10
12
13
14
15
16
31
29
28 27
26 25
24
23
22
21
20
19
18
17
13
35
9

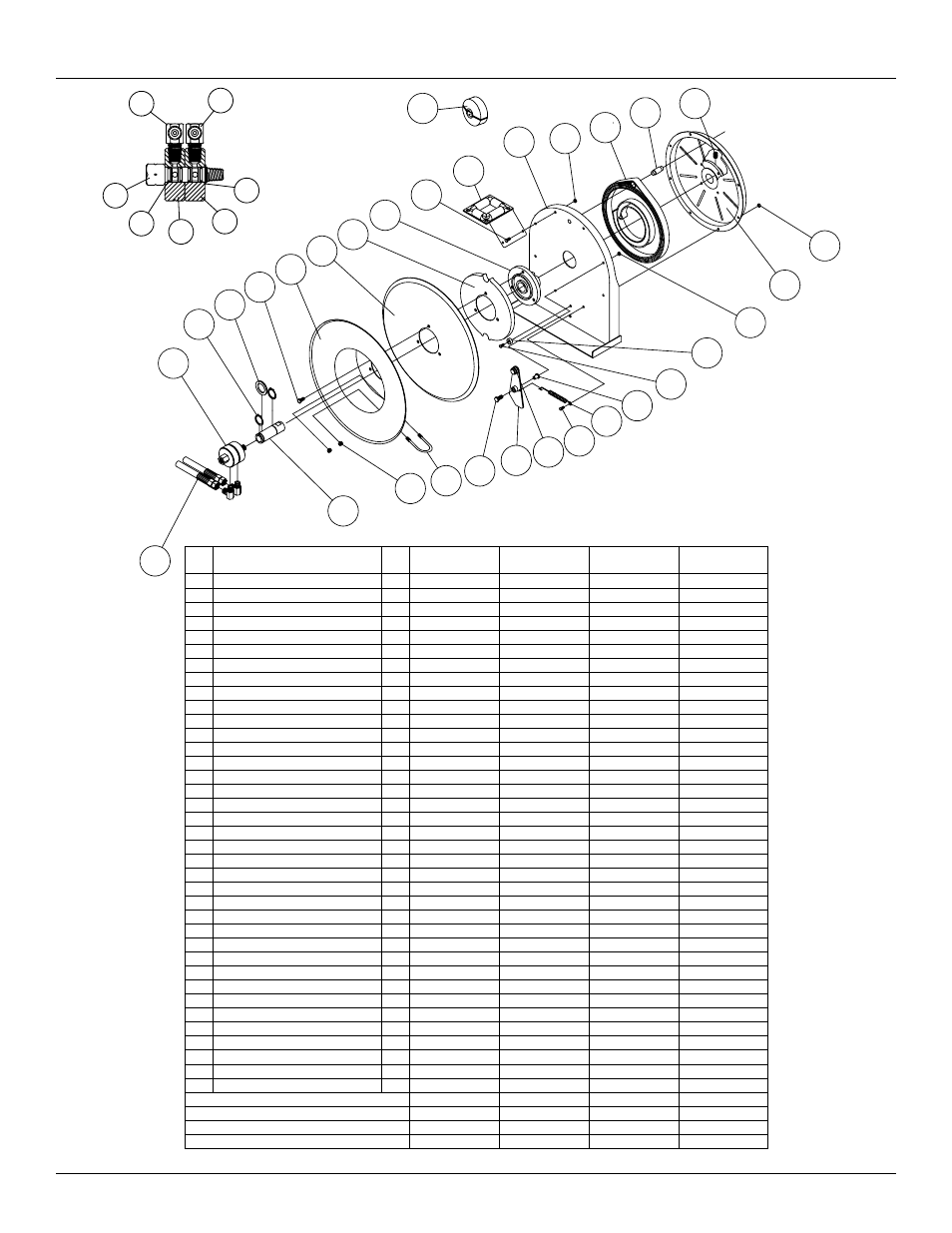

Item
#
Description
#
Req TW5400 OLP TW5400 OLPT TW5425 OLP TW5425 OLPT
1 Swivel Assembly 1 S260057-3 S260057-1 S260057-3 S260057-1
2 1” Snap Ring 1 300031 300031 300031 300031
3 Spacing Washer 2 300034 300034 300034 300034
4 Self Tap Screw Plastite 3 S295-102 S295-102 S295-102 S295-102
5 Reel Sheave 1 260022 260022 260022 260022
6 Reel Sheave Disc 1 500006 500006 500006 500006
7 Latch Cam 1 S500019 S500019 S500019 S500019
8 Spring Arbor 1 S260648 S260648 S260648 S260648
9 10-32 x 1/2” Machine Screw 2 300002 300002 300002 300002
10 Guide Arm and Roller Assembly 1 S500107 S500107 S500107 S500107
11 Hose Bumper Assembly 1 None None A8-HR1004-3 A8-HR1004-3
12 Base Assembly 1 500101 500101 500101 500101
13 10-32 Hex Nut 7 S300011 S300011 S300011 S300011
14 Drive Spring Assembly 1 S504230 S504230 S504230 S504230
15 Spring Case Stud 1 S261360 S261360 S261360 S261360
16 3/8-16 x 1/2” Set Screw 1 300006 300006 300006 300006
17 Spring Case and Hub Assembly 1 S500103 S500103 S500103 S500103
18 10-32 x 3/8” Nyloc Nut 1 S82-15 S82-15 S82-15 S82-15
19 Latch Bumper 1 S400021 S400021 S400021 S400021
20 10-24 x 3/8” Screw 1 S32-136 S32-136 S32-136 S32-136
21 Latch Bushing 1 S400012 S400012 S400012 S400012
22 Latch Spring 1 S400018 S400018 S400018 S400018
23 10-32 x 3/8” Machine Screw 5 300001 300001 300001 300001
24 O-Ring 1 400020 400020 400020 400020
25 Latch Plate Assembly 1 S400109 S400109 S400109 S400109
26 10-32 x 1” Machine Screw 1 300035 300035 300035 300035
27 U-bolt 1 3-117440 3-117440 3-117440 3-117440
28 1/4-20 Nyloc Nut 2 261650-1 261650-1 261650-1 261650-1
29 Main Shaft 1 602306 602306 602306 602306
30 Hose Assembly 1 None None 601032-25 601031-25
31 90° Ell Acet/Fuel 1 S300090 S300090 S300090 S300090
32 Swivel Stem 1 260054 260054 260054 260054
33 O-Ring 4 300095 S314-14 300095 S314-14
34 Swivel Body - Acet 1 260056 260056 260056 260056
35 Swivel Body - Oxy 1 260055 260055 260055 260055
36 Snap Ring 1 300087 300087 300087 300087
37 90° Ell Oxygen 1 S300091 S300091 S300091 S300091
Hose I.D. and Length None None 1/4” x 25’ 1/4” x 25’
Reel Inlet Connection 1/4” FPT 1/4” FPT 1/4” FPT 1/4” FPT
Max. Operating Pressure 200 PSI 200 PSI 200 PSI 200 PSI
Max. Operating Temperature 210° F 210° F 210° F 210° F
