Reelcraft Series TH7000 Spring Driven Hose Reels - Manual (Page 6)

Series TH7000 Carreteles para Mangueras
Page 6 www.reelcraft.com

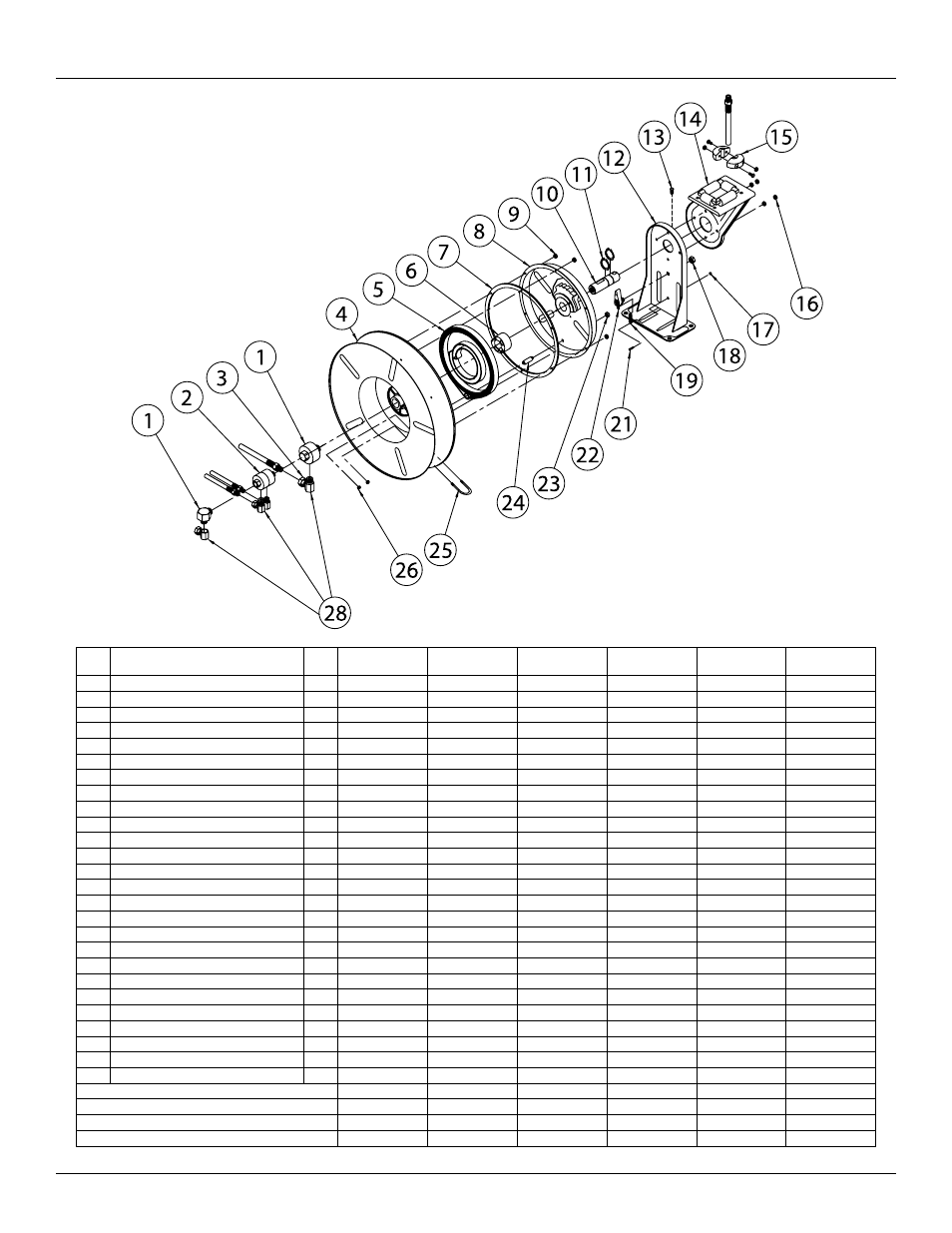

ART.
NO.
Descripción
NO.
REQ. TH7445 OMP TH7400 OMP THA7630 OMP THA7600 OMP THA7825 OMP THA7800 OMP
2 Eje giratorio emsamblado 1 S600996-1 S600996-1 S602097-1 S602097-1 602550-1 602550-1
3 Codo de 90 grados 2 Ninguno Ninguno S335-7 S335-7 262602 262602
3 Codo de 90 grados 2 Ninguno Ninguno S334-8 S334-8 262603 262603
4 Polea ensamblada 1 S260011 S260011 S260011 S260011 602552 602552
5 Resorte ensamblado de propulcion 1 S260053 S260053 S260053 S260053 S260053 S260053
6 Resorte del arbol 1 S600621 S600621 S600621 S600621 S600621 S600621
7 Empaque 1 S260069 S260069 S260069 S260069 S260069 S260069
8 Resorte de la caja ensamblada 1 S260074 S260074 S260074 S260074 S260074 S260074
9 10-32 Tuerca hexagonal 6 S300011 S300011 S300011 S300011 S300011 S300011
10 Columna principal 1 602241 602241 602231-2 602231-2 260095 260095
11 1 1/4” Anillo de resorte 1 300007 300007 300007 300007 300007 300007
12 Base ensamblada 1 S600016 S600016 S600016 S600016 S600016 S600016
13 1/2-13 T ornillo 1 S35-84 S35-84 S35-84 S35-84 S35-84 S35-84
14 Guia del brazo con rodillos 1 S600017 S600017 S600017 S600017 S600017 S600017
15 Manguera del parachoque ensamblada 1 A8-HR1004-3 Ninguno A600521 Ninguno 600522 Ninguno
16 5/16-18 Contre écrou 4 300107 300107 300107 300107 300107 300107
17 10-32 x 3/8” écrou Nyloc 1 S82-15 S82-15 S82-15 S82-15 S82-15 S82-15
18 1/2-20 x 5/8” écrou hexagonal 1 S280-8 S280-8 S280-8 S280-8 S280-8 S280-8
19 Ressort de loquet 1 S260067 S260067 S260067 S260067 260067-1 260067-1
21 10-32 tornillo de hombro 1 S393-2 S393-2 S393-2 S393-2 S393-2 S393-2
22 Assemblage de cliquet 1 S600018 S600018 S600018 S600018 S600018 S600018
23 3/8-24 contre-écrou 1 S76-106 S76-106 S76-106 S76-106 S76-106 S76-106
24 Boulon de boîtier de ressort 1 S260031 S260031 S260031 S260031 S260031 S260031
25 Tornillo “u” 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
26 1/4-20 x 3/8” contre-écrou 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
28 Union del eje giratorio 4 S257-2 S257-2 Ninguno Ninguno Ninguno Ninguno
Manguera del ensamblada 600669-4 Ninguno 601067-2 Ninguno 601132-25 Ninguno
Manguera I.D. y Medida 1/4” x 45’ Ninguno 3/8” x 30’ Ninguno 1/2” x 25’ Ninguno
Max. Presion de Operacion 2000 PSI 3000 PSI 2000 PSI 3000 PSI 2000 PSI 3000 PSI
Max. Temperatura de Operacion 210 °F 210 °F 210 °F 210 °F 210 °F 210 °F
