Reelcraft Series 30000 Hose Reels 4 Way Roller Guides User Manual
Page 4
Series 30000 Hose Reels
Page 4
www.reelcraft.com
Bottom Wind Roller Parts List

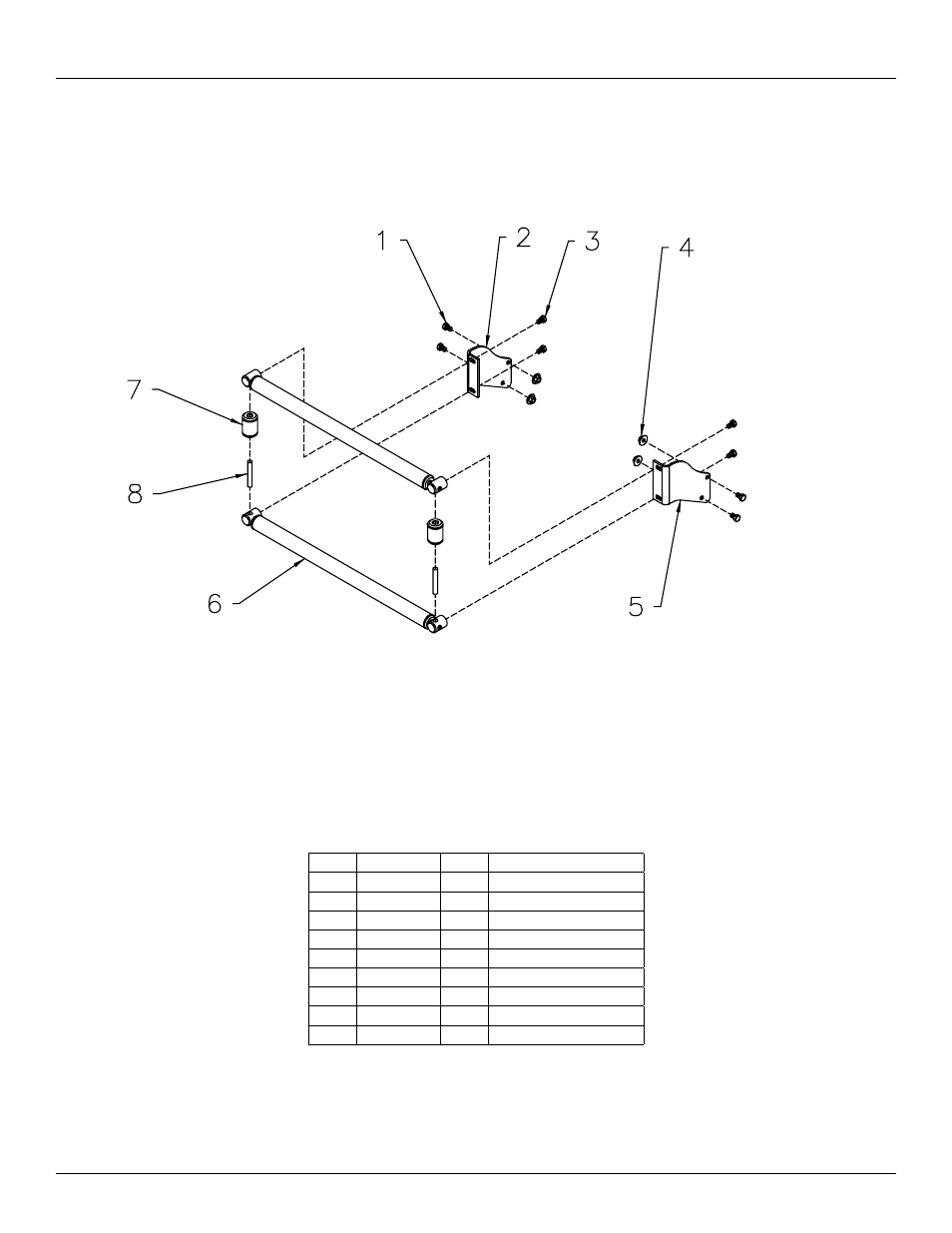

*See Figure 8
Figure 9
Item #
Part #
# Req.
Description
1
S2-53
4
Bolt, 5/16-18 x 3/4”
2
261638-2
1
Guide Arm, Left
3
S2-51
4
Bolt, 5/16-18 x 1/2”
4
300107
4
5/16” Lock Nut
5
261638-1
1
Guide Arm, Right
6
By Model
2
Roller Assembly
7
S602131-9
2
Short Roller Stainless Steel
7
262436-1.874
2
Short Roller UHMW PE
8
260825-1
2
Roller Shaft
