Series 30000 Hose Reels
Page 2 www.reelcraft.com

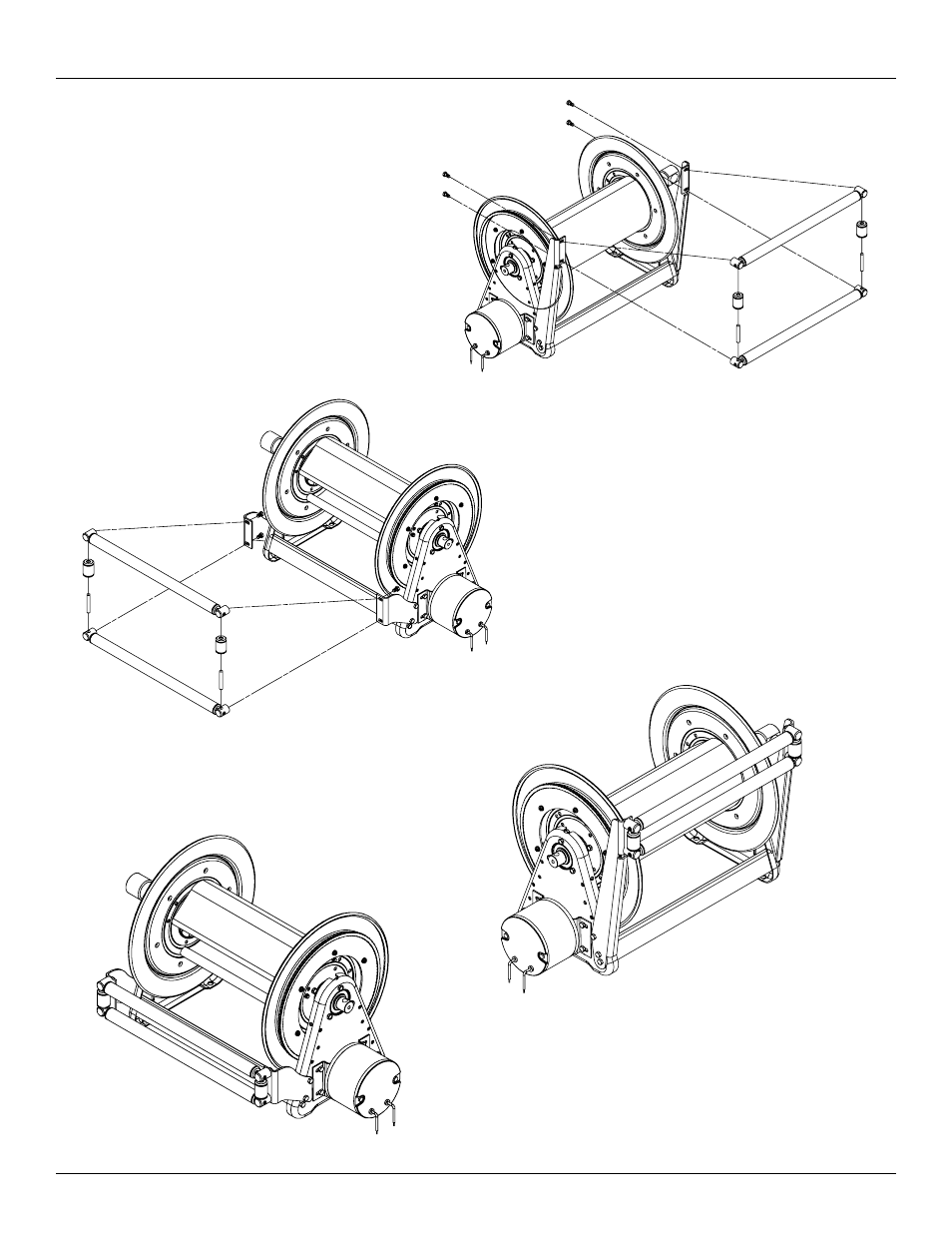

Step 2:
Align one of the roller assemblies to the
bottom slots on the guide arm. Be sure the holes in the sides
of the post face up. Attach the bottom roller assembly to the
guide arm brackets with the supplied 5/16” dia by 1/2” bolts,
as shown in Figure 4 (upper) and Figure 5 (lower). Insert the
2½” long shafts into the holes of the posts of the lower roller
assembly, then place the short rollers on these shafts. Align
the upper roller assembly to these shafts, and attach it to the
guide arm brackets with the supplied 5/16” dia by 1/2” bolts.
Figure 6 shows the completed upper roller.
Figure 7 shows the completed lower roller assembly.
Figure 4
Figure 6
Figure 7
Figure 5
