Reelcraft Series 30000 Hose Reels 4 Way Roller Guides User Manual
Page 3
Series 30000 Hose Reels
Page 3
www.reelcraft.com
Top Wind Roller Parts List
*See Figure 8

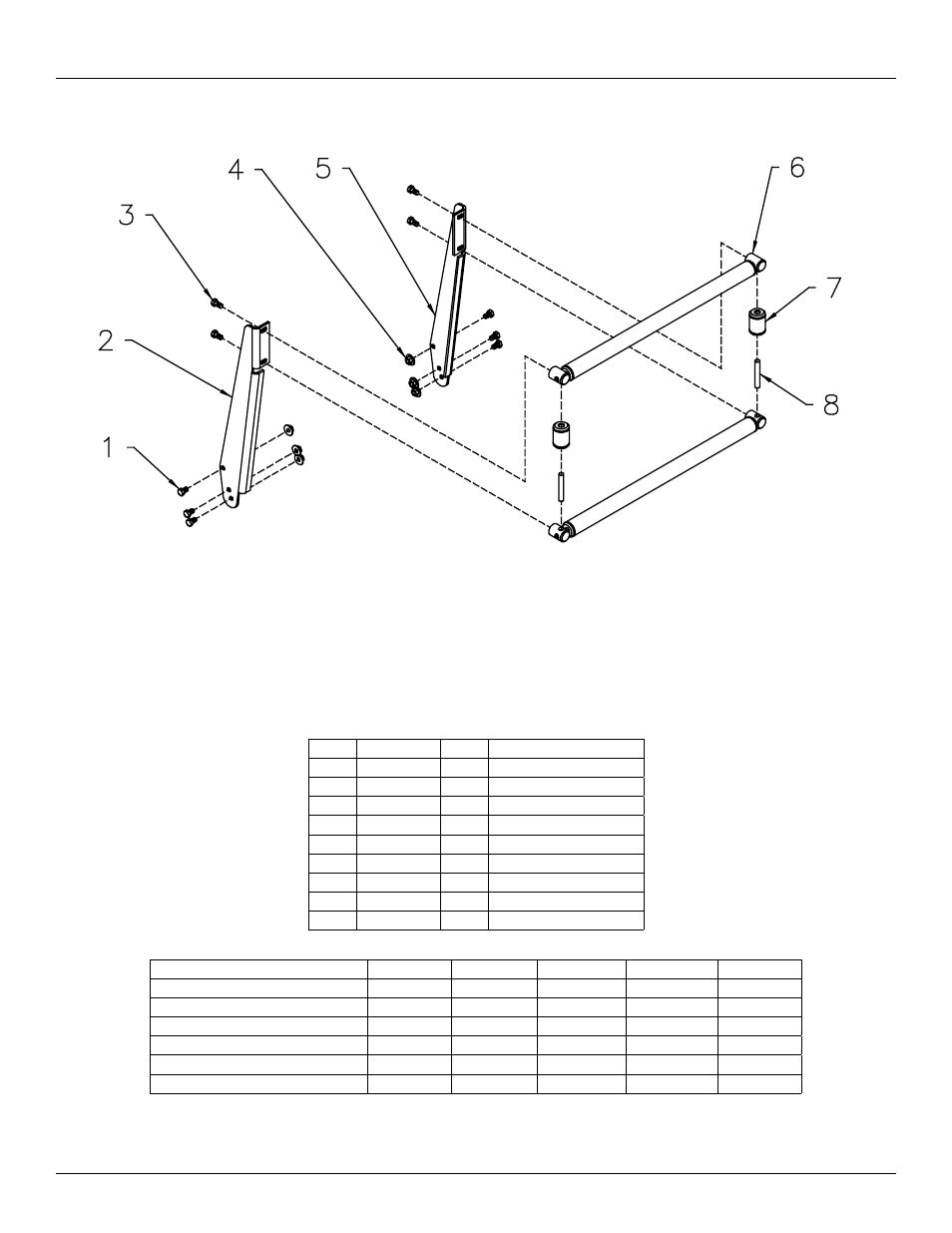

Figure 8
Item #
Part #
# Req.
Description
1
S2-53
6
Bolt, 5/16-18 x 3/4”
2
261639-2
1
Guide Arm, Left
3
S2-51
4
Bolt, 5/16-18 x 1/2”
4
300107
6
5/16” Lock Nut
5
261639-1
1
Guide Arm, Right
6
By Model
2
Roller Assembly
7
S602131-9
2
Short Roller Stainless Steel
7
262436-1.874
2
Short Roller UHMW PE
8
260825-1
2
Roller Shaft
Reel Spool Width
6”
12”
18”
22”
28”
Top Wind Stainless Steel Model No.
S600692-1
S600692-2
S600692-3
S600692-4
S600692-5
Top Wind UHMW PE Model No.
S600692-1U S600692-2U S600692-3U
S600692-4U S600692-5U
Bottom Wind Stainless Steel Model No. S600693-1
S600693-2
S600693-3
S600693-4
S600693-5
Bottom Wind UHMW PE Model No.
S600693-1U S600693-2U S600693-3U
S600693-4U S600693-5U
Roller Stainless Steel No. (Item #6)
600503-5
600503-6
600503-7
600503-8
600503-9
Roller UHMW PE No. (Item #6)
600503-5U
600503-6U
600503-7U
600503-8U
600503-9U
