Series D9000 Spring Driven Hose Reels
Page 2 www.reelcraft.com

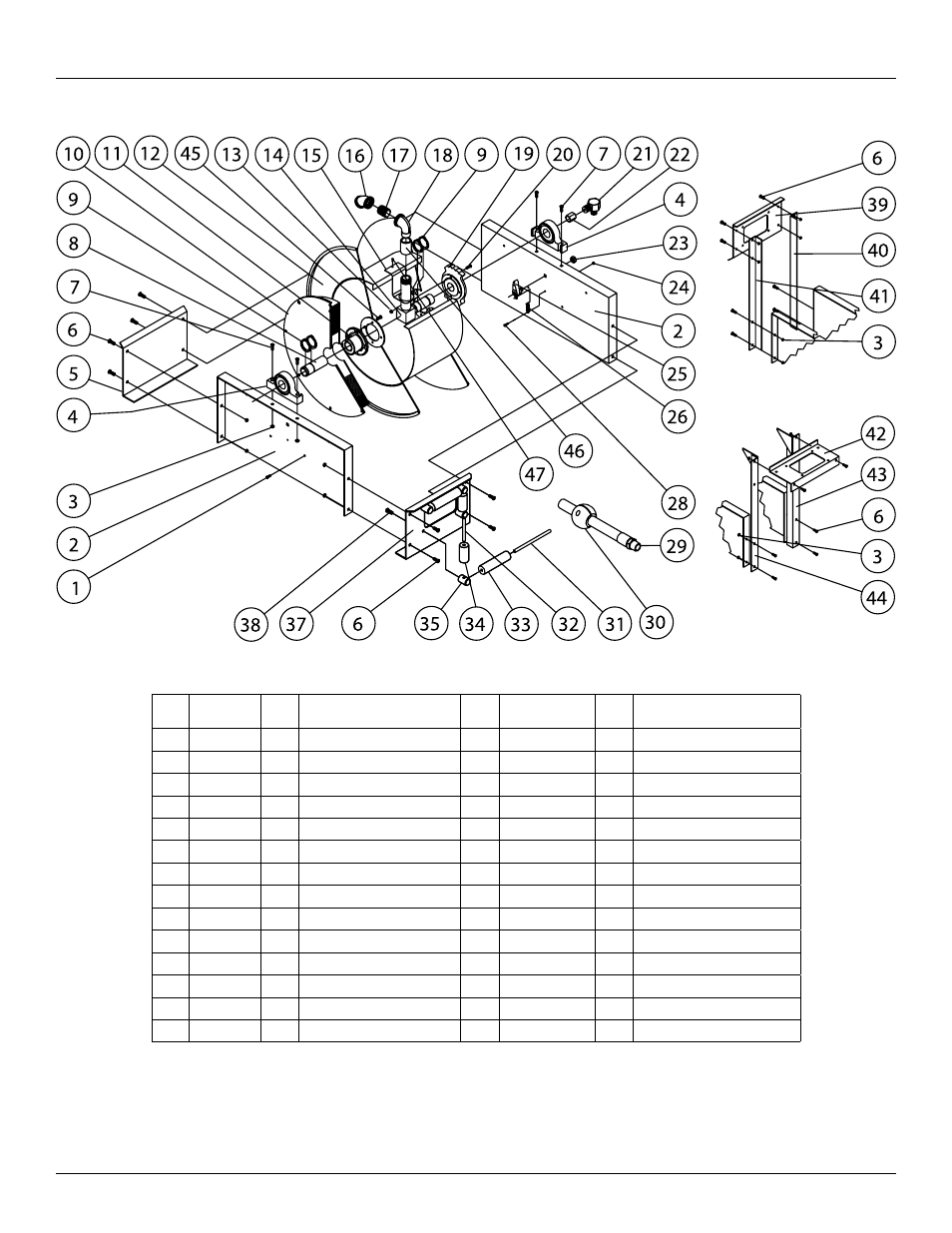

Item
#
Part #
#
Req
Description
Item
#
Part #
#
Req
Description
1 S2-41 4 1/4-20 x 1/2” hex screw 20 S2-42 4 1/4-20 x 5/8” hex screw
2 270009 2 Side frame 23 S280-8 1 1/2-20 hex flange nut
3 S281-6 12 3/8-16 hex flange nut 24 S82-15 1 10-32 x 3/8” nyloc nut
4 270058 2 Pillow block 25 S600018 1 Latch pawl assembly
6 S44-2 8 3/8-16 x 5/8” mach. screw 26 S260067 1 Latch spring
7 S44-8 4 3/8-16 x 1 3/4” screw 28 S393-2 1 10-32 shoulder screw
8 270060 1 Support shaft 31 S270016 2 Guide roller pin - long
9 S140-31 6 Snap ring 32 S270015 2 Guide roller pin - short
10 270105 1 Spring & case assembly 33 262436-5.468 2 Guide roller
11 270002 1 Spring arbor 34 262436-2.968 2 Guide roller
13 S281-4 8 1/4-20 hex flange nut 35 S270014 4 Guide roller post
14 S270054 1 1” Inlet tube 38 S2-51 4 5/16-18 x 1/2” hex screw
15 270029 1 Hose outlet support 45 S328-29 4 Self tapping screw
19 S270001 1 Latch ratchet hub 47 S32-136 1 #10 x 3/8” self tap screw
