Reelcraft Series RT Spring Driven Hose Reels (Low Pressure) - Manual (Page 7)

www.reelcraft.com Page 7

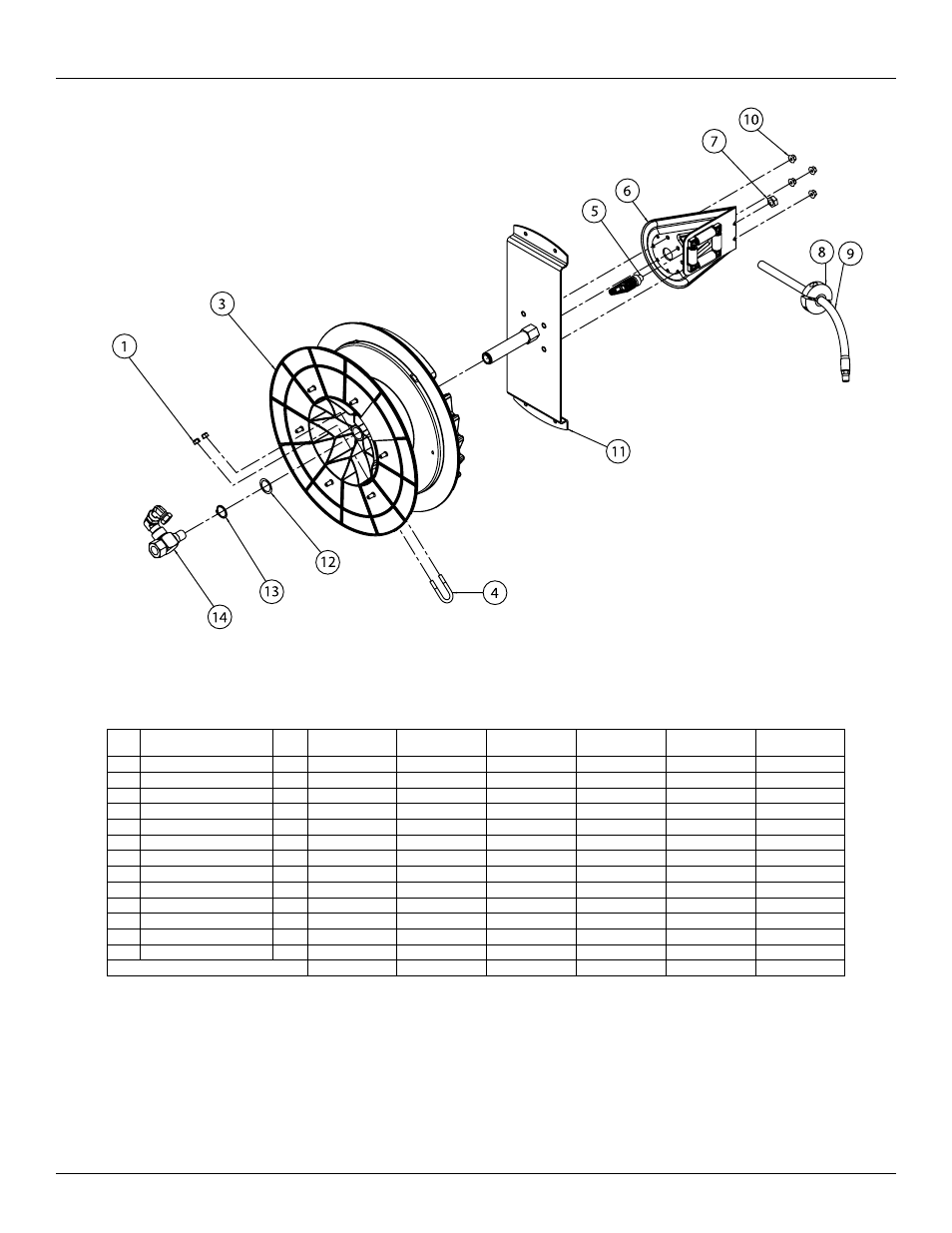

Series RT Spring Driven Hose Reels
Item
#
Description
#
Req. RT450-OLPSM RT635-OLPSM RT650-OLPSM RT825-OLPSM RT835-OLPSM RT850-OLPSM
1 1/4-20 Lock Nut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
3 Spool Assembly 1 S600860 S600827 S600828 S600879 S600879 602011
4 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
5 Latch Pawl Assembly 1 S600823 S600823 S600823 S600823 S600823 S600823
6 Guide Arm Assembly 1 S600825 600825 S600826 S600826 S600826 602014
7 Nut 1/2” 1 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108
8 Hose Bumper 1 A1-HR1004-A A1-HR1004 A1-HR1004 A2-HR1004-3 A2-HR1004-3 A2-HR1004-3
9 Hose Assembly 1 601001-50 S601013-35 S601013-50 601020-25 601022-35 601022-50
10 Nut 5/16” 4 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2
11 Shaft / Bracket Assembly 1 602263 602263 600264 602264 602264 602265
12 Spacing Washer 1 300034 300034 300034 300034 300034 300034
13 Snap Ring 1 300031 300031 300031 300031 300031 300031
14 Swivel Assembly 1 602262 602262 602262 602311 602311 602311
“E” Dimensions - See page 1 6 1/8” 7 5/16” 7 5/16” 7 5/16” 7 5/16” 8 5/8”
