Replacing the Spool Assembly

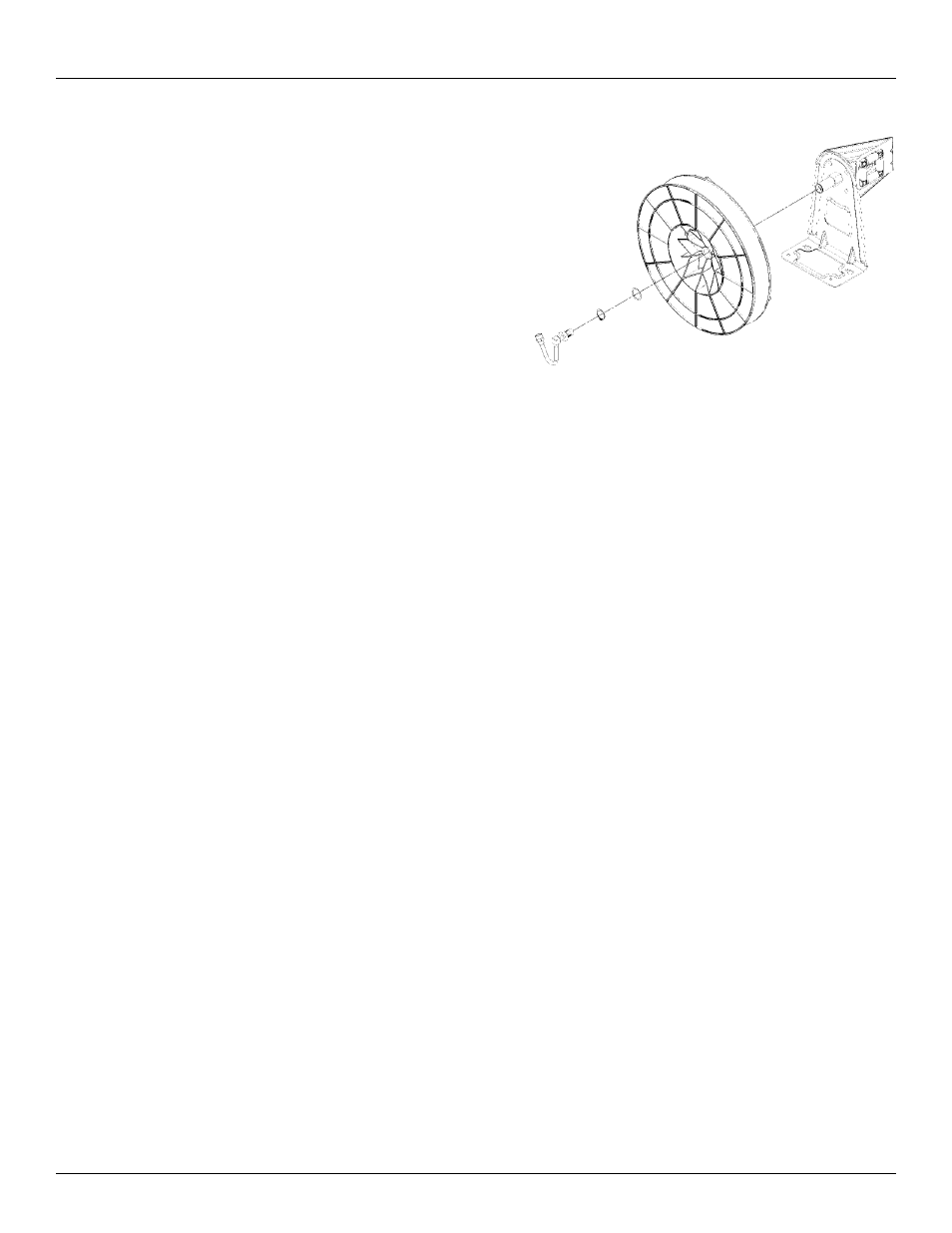

figure 12

Attach the reel securely to prevent it from moving. Pull out the

hose just until the latch pawl is engaged. Remove the hose bum-

per by removing the slotted screws (figure 6).
Disengage the latch pawl while maintaining a firm hold on the

spool. Turn the spool hand over hand approximately two or three

revolutions until the spring tension is removed.
Unscrew the swivel stem from the main shaft. Next, remove

the swivel by unscrewing the swivel from the hose (figure 11).

Remove the retaining ring and spacing washer (figure 12). Pull

the spool away from the base. Unwind the hose from the spool,

remove the u-bolt (figure 10).
Install the spool assembly by inserting the shaft of the base into

the hex shaped opening of the spool. Install spacing washer and

retaining ring as shown (figure 12). Install the swivel by screw-

ing the threaded stem of swivel into the main shaft of reel (figure

11).
Install the hose by screwing the hose fitting into the threaded

fitting on the swivel. Tighten connection with a wrench on both

fittings. Install the u-bolt (figure 10).
Pull in the hose by turning the spool by hand. When the hose

is completely wound onto the spool, turn the spool in the other

direction two to three revolutions. Pull the hose through the

roller opening in the guide arm and replace the hose bumper

(figure 6).
