Owner’s Manual MMK-KVM8
Modular KVM Switch for
LCD Console Use
2.3 Optional Module Installation
IP Module
Please refer to “MMK-IPM Owner's Manual” for details.
IP Remote Console
Installation: Power off the KVM switch first. Remove the cover of the add-on slot, slide in the IP module and make sure the module is
fully inserted into the slot.
The IP module redirects local keyboard, mouse and video data to a remote administration console. It allows you to control one or many
computers locally at the server site or remotely via the Internet using a standard browser.

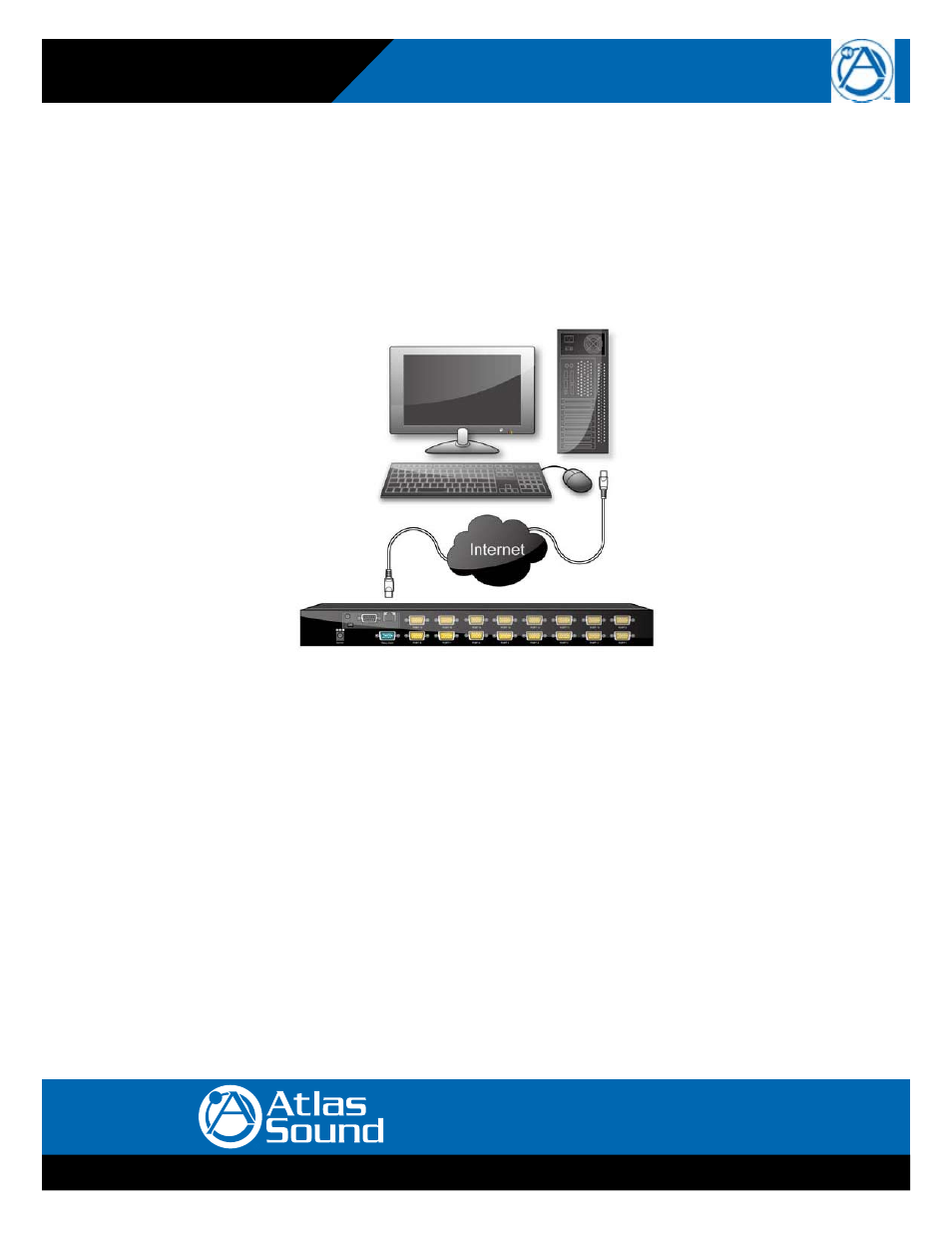

Figure 2-4. IP Module Installation
2.4 Power ON
Check Connections and Plug In Power Supply
Double check to ensure all cables / connectors are properly connected. Visually check the color of keyboard and mouse connector to
make sure the keyboard and mouse cables are connected to the proper ports.
Plug in the power supply to the KVM switch and plug the AC power plug into the electrical receptacle. Now you will see the LED of
Port 1 light up and hear a "beep" sound.
Recommend Power ON sequence as follows: Monitor, KVM Switch, finally Computer.
